Accessories
8.6 DRIVE-CLiQ coupling
Booksize power units
490 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
8.6.4 Dimension drawing
%
E


+
7

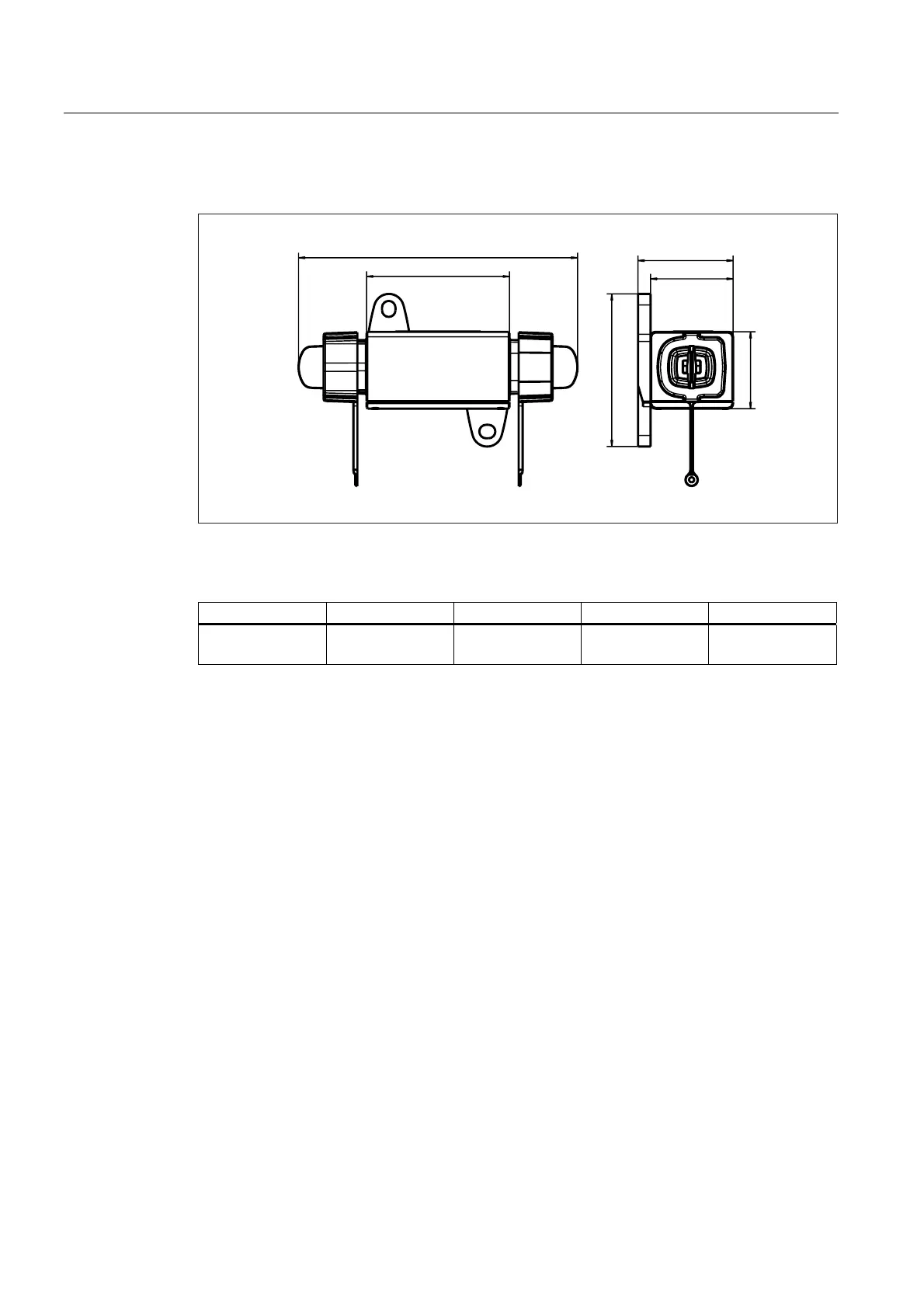

Figure 8-23 Dimension drawing, DRIVE-CLiQ coupling
Table 8-18 Dimensions of the DRIVE-CLiQ coupling, all data in mm and (inches)
Accessories W [mm] b [mm] H [mm] D [mm]
DRIVE-CLiQ
coupling
111.5 (4.38) 57.1 (2.24) 61 (2.40) 38 (1.49)
