8.6 DRIVE-CLiQ coupling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
491
8.6.5 Installation
RU01P
RU01P



s
s
s s



&RQWDFWVXUIDFHV

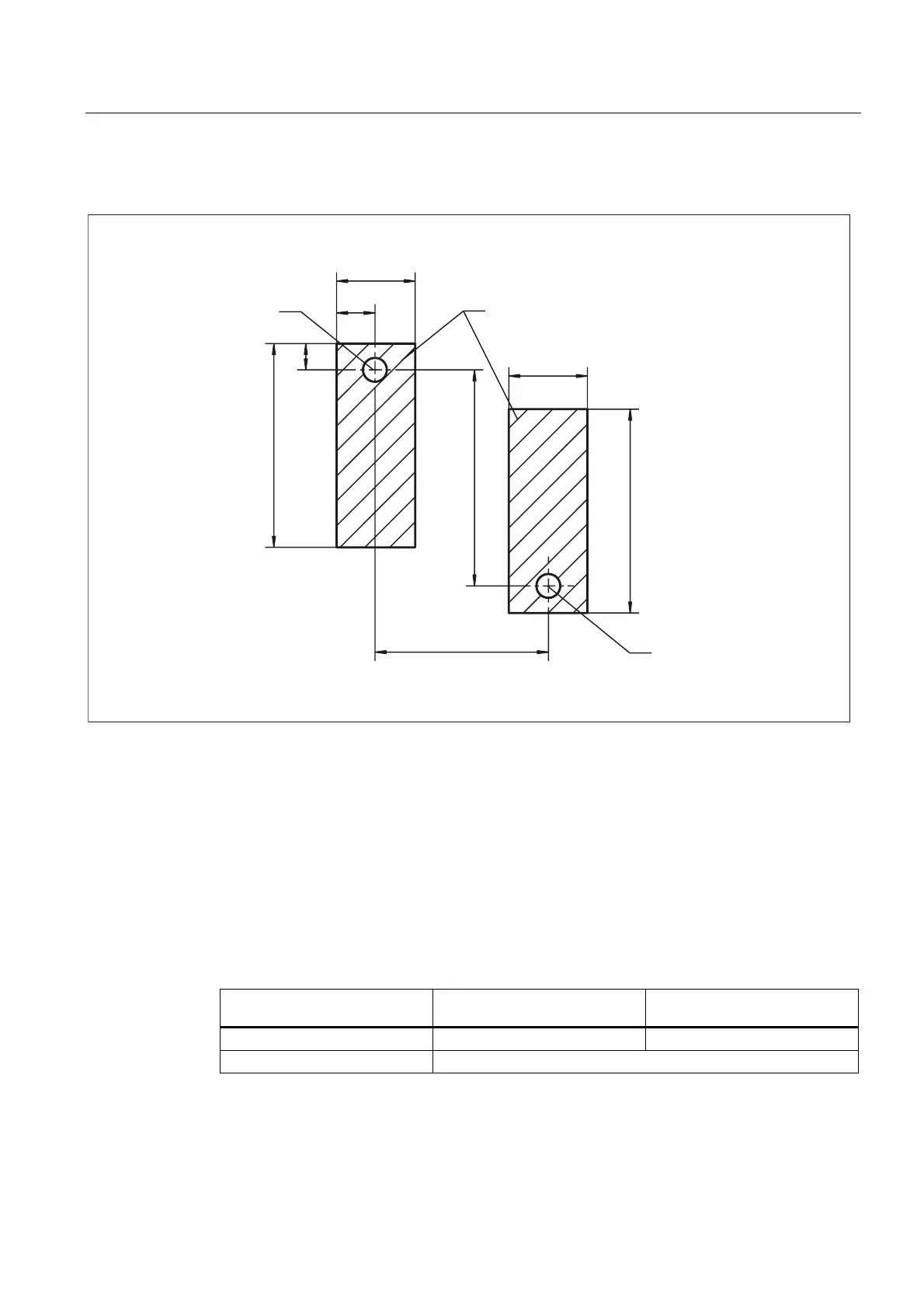

Figure 8-24 Hole drilling template for installation
1. Fit the DRIVE-CLiQ coupling to the mounting surface in accordance with the drilling
template.
2. Remove the protective caps on the DRIVE-CLiQ coupling.
3. Insert the DRIVE-CLiQ connector at both ends of the DRIVE-CLiQ coupling.
8.6.6 Technical data
Table 8-19 Technical data
DRIVE-CLiQ coupling 6FX2003-
0DC1x
Unit
Weight kg 0.14
Degree of protection IP67 acc. to EN 60529
