Line Modules Booksize
3.5 Smart Line Modules (5 kW und 10 kW) with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
249
3.5.4 Dimension drawing





%


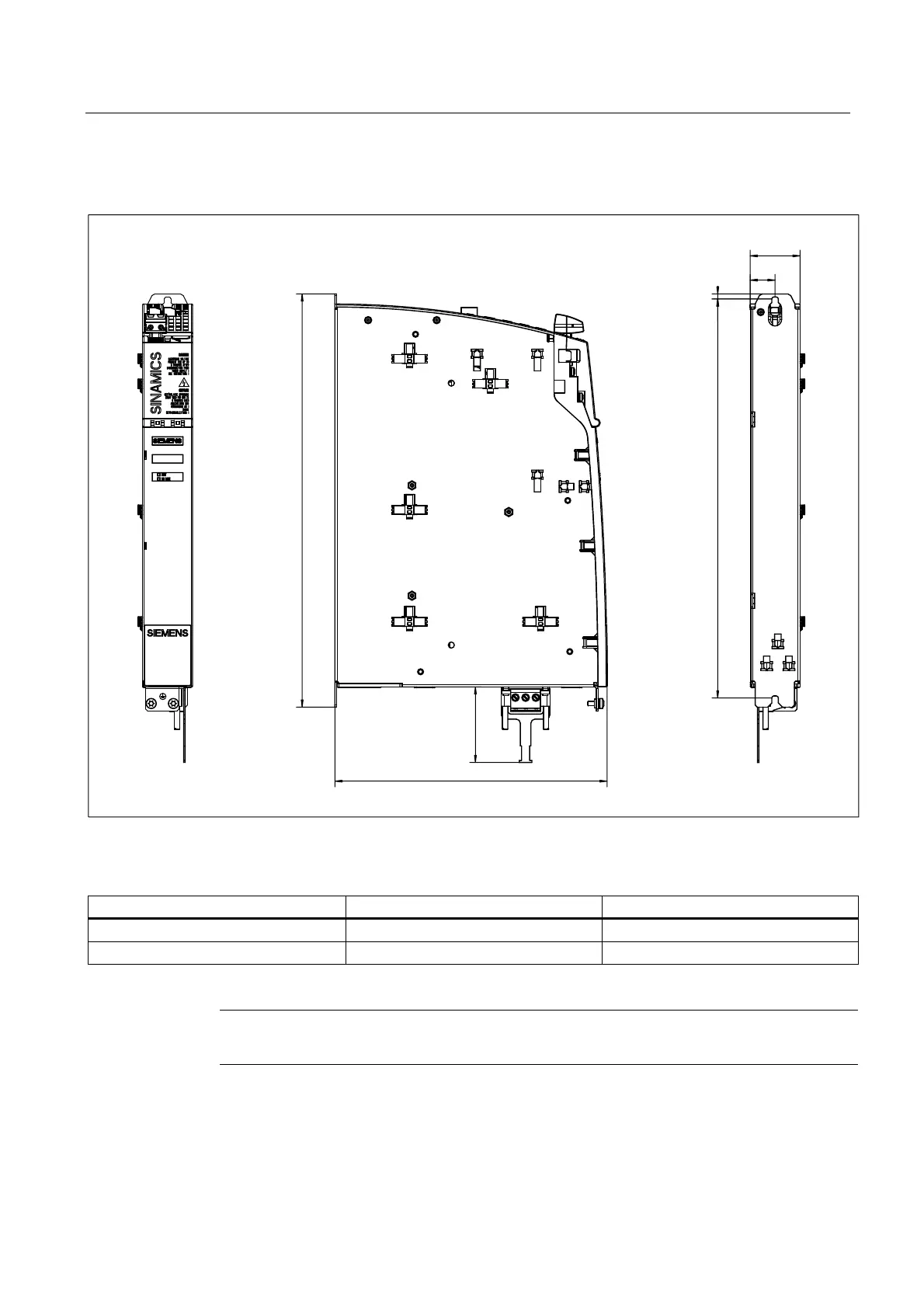

Figure 3-59 Dimension Smart Line Module 5 kW and 10 kW with internal air cooling, all dimensions in mm and (inches)
Table 3-42 Dimensions of 5 kW and 10 kW Smart Line Modules with internal air cooling
Line module type Order number W [mm] (inches)
5 kW 6SL3130-6AE15-0AAx 50 (1.97)
10 kW 6SL3130-6AE21-0AAx 50 (1.97)
Note
The shield connecting plate is part of the scope of supply of the 50 mm Smart Line Module.
