Accessories
8.1 Shield connecting plates
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
455

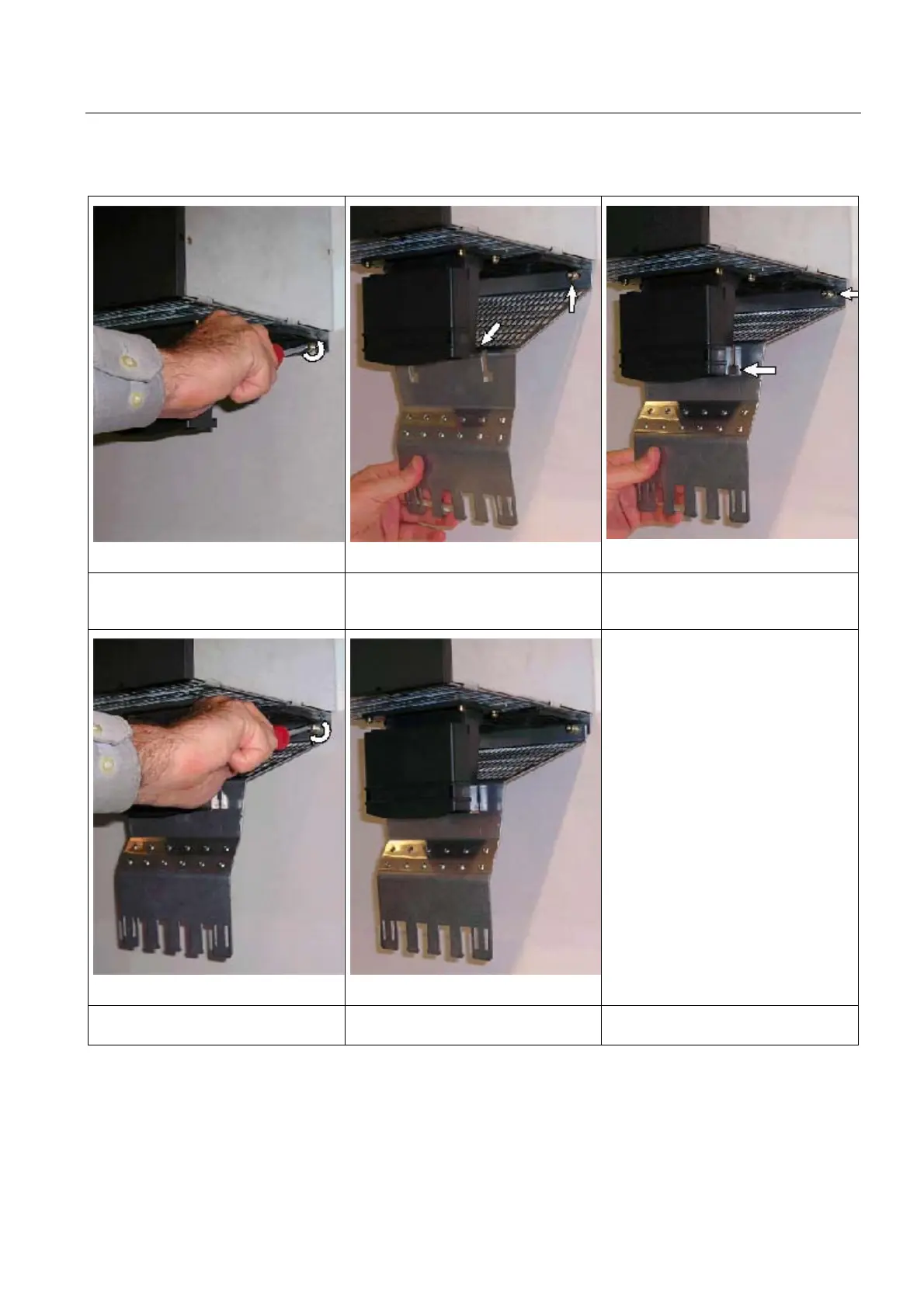

Table 8-2 Mounting the shield connecting plate to a 200 mm component using as an example, internal air cooling
Loosen the lower mounting screws
using a screwdriver
Hook the shield connecting plate into
the screws and on the line/motor
connection
Secure the shield connecting plate by
shifting it to the left
Secure the shield connecting plate with
screwdriver 6 Nm
Mounted shield connecting plate
