Line Modules Booksize
3.3 Active Line Modules with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
185

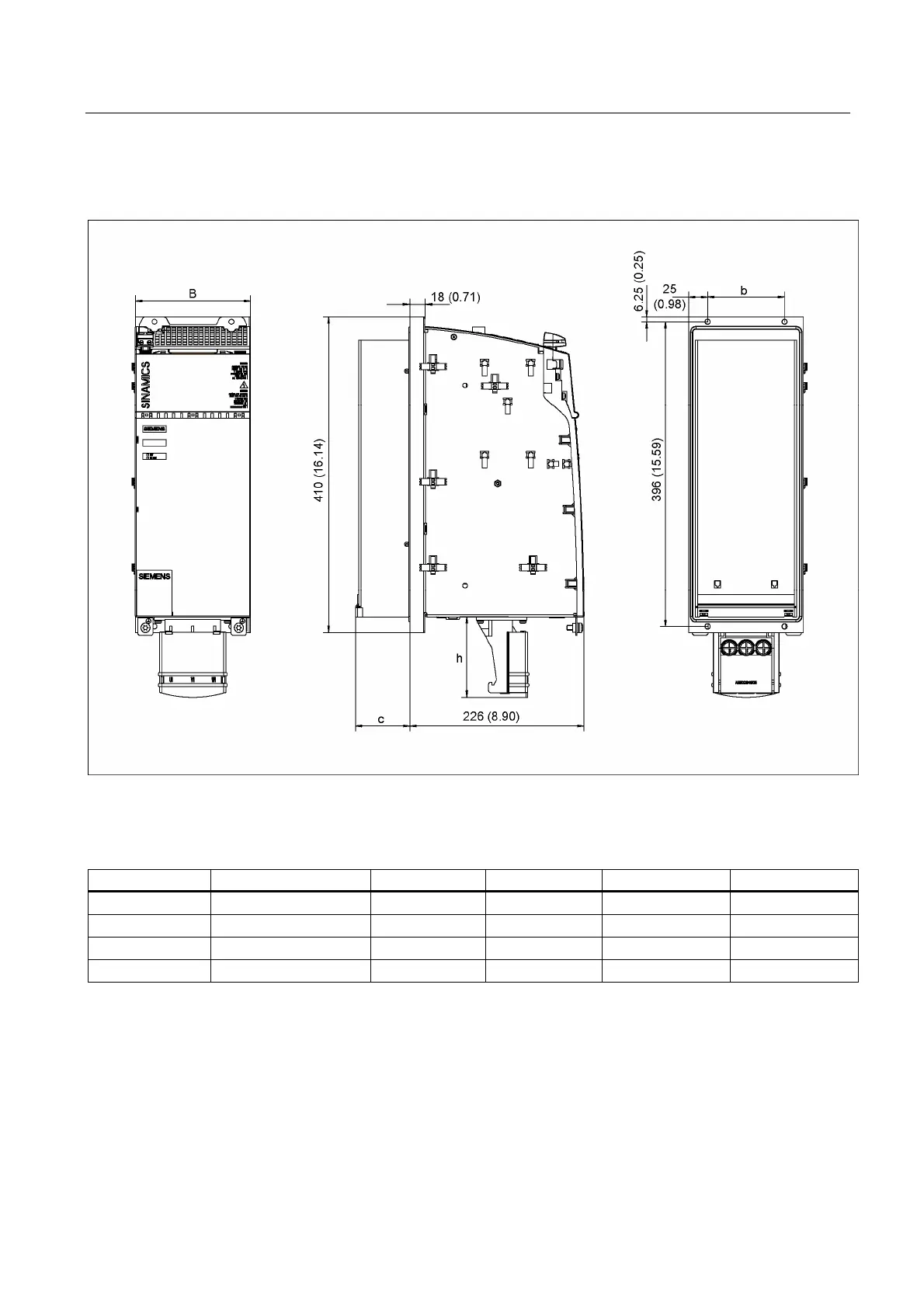

Figure 3-19 Dimension drawing of Active Line with external air cooling 36 kW, 55 kW, 80 kW, und 120 kW, all data in
mm and (inches)
Table 3-19 Dimensions of Active Line Modules with external air cooling (36 kW, 55 kW, 80 kW, and 120 kW)
Line module type Order number W [mm] (inches) b [mm] (inches) h [mm] (inches) c [mm] (inches)
36 kW 6SL3131-7TE23-6AAx 150 (5.91) 100 (3.94) 105 (4.13) 71 (2.80)
55 kW 6SL3131-7TE25-5AAx 200 (7.87) 150 (5.91) 105 (4.13) 92 (3.62)
80 kW 6SL3131-7TE28-0AAx 300 (11.81) 250 (9.84) 105 (4.13) 82 (3.23)
120 kW 6SL3131-7TE31-2AAx 300 (11.81) 250 (9.84) 105 (4.13) 82 (3.23)
