Line Modules Booksize
3.4 Basic Line Modules with internal air cooling
Booksize power units
216 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
$

 



 

 

$


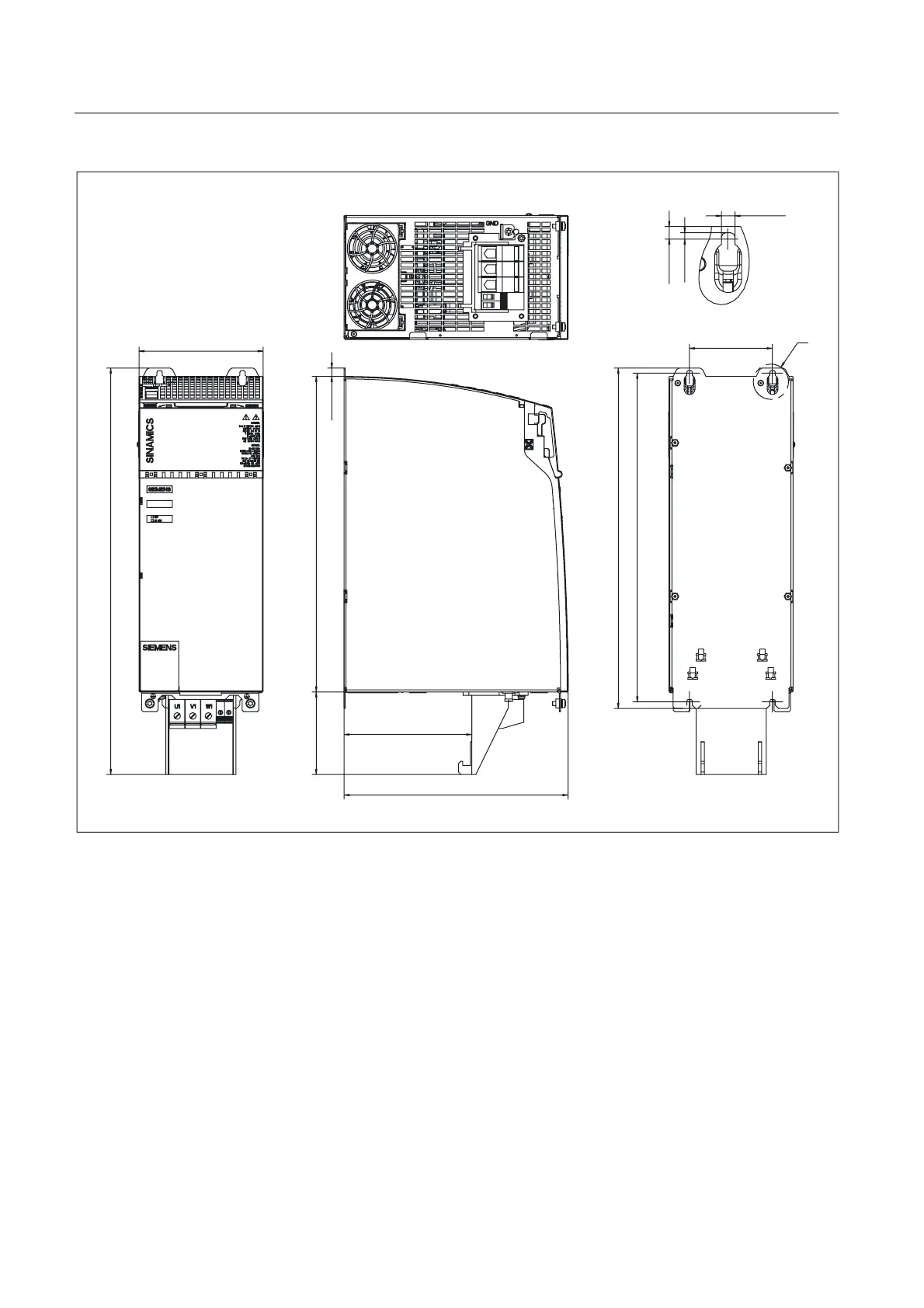

Figure 3-40 Dimension drawing: Basic Line Module 40 kW with internal air cooling, all dimensions in mm and (inches)
