Siemens SINAMICS S120 - Page 231

Line Modules Booksize
3.4 Basic Line Modules with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
231
E
E
 
 


 
0



º
 
 
 

)ORRUPRXQWLQJ
:DOOPRXQWLQJ
D
F
%UDNLQJUHVLVWRUN:DQGN:

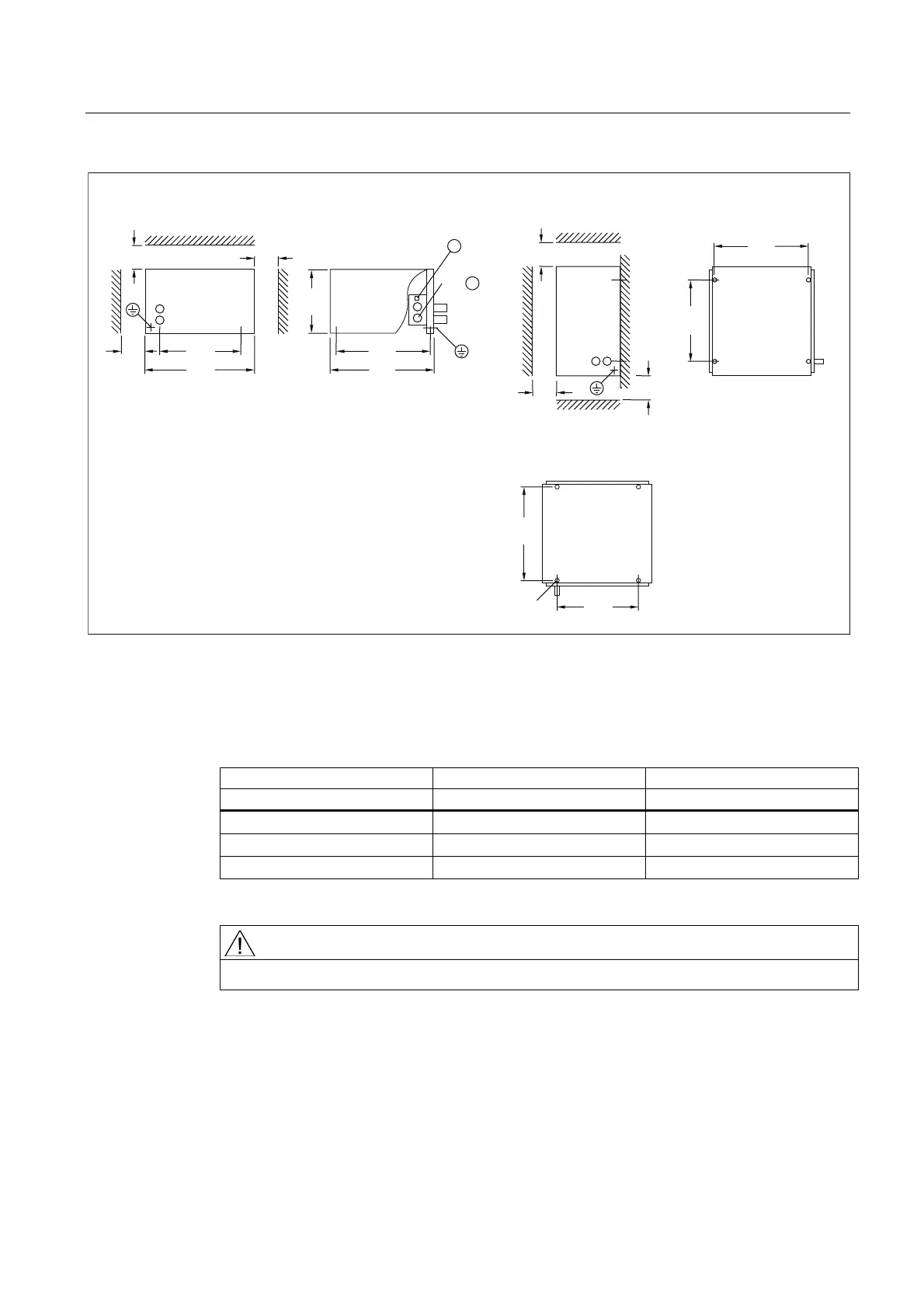

Figure 3-52 Dimension and assemby diagram: Braking resistor 30 kW and 75 kW
①
T1/T2 tunnel terminals
②
Stud terminals
Table 3-34 Dimensions of braking resistor 30 kW and 75 kW
Order number 6SE7023-2ES87-2DC0 6SE7028-0ES87-2DC0
Rated power 30 kW 75 kW
a 430 (16.92) 740 (29.13)
b 400 (15.74) 710 (27.95)
c 400 (15.74) 710 (27.95)
CAUTION
The surface temperature of the braking resistors may exceed 80 °C.
