Line Modules Booksize
3.6 Smart Line Modules (16 kW und 36 kW) with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
269
%
E
K
0
1P
OEIW

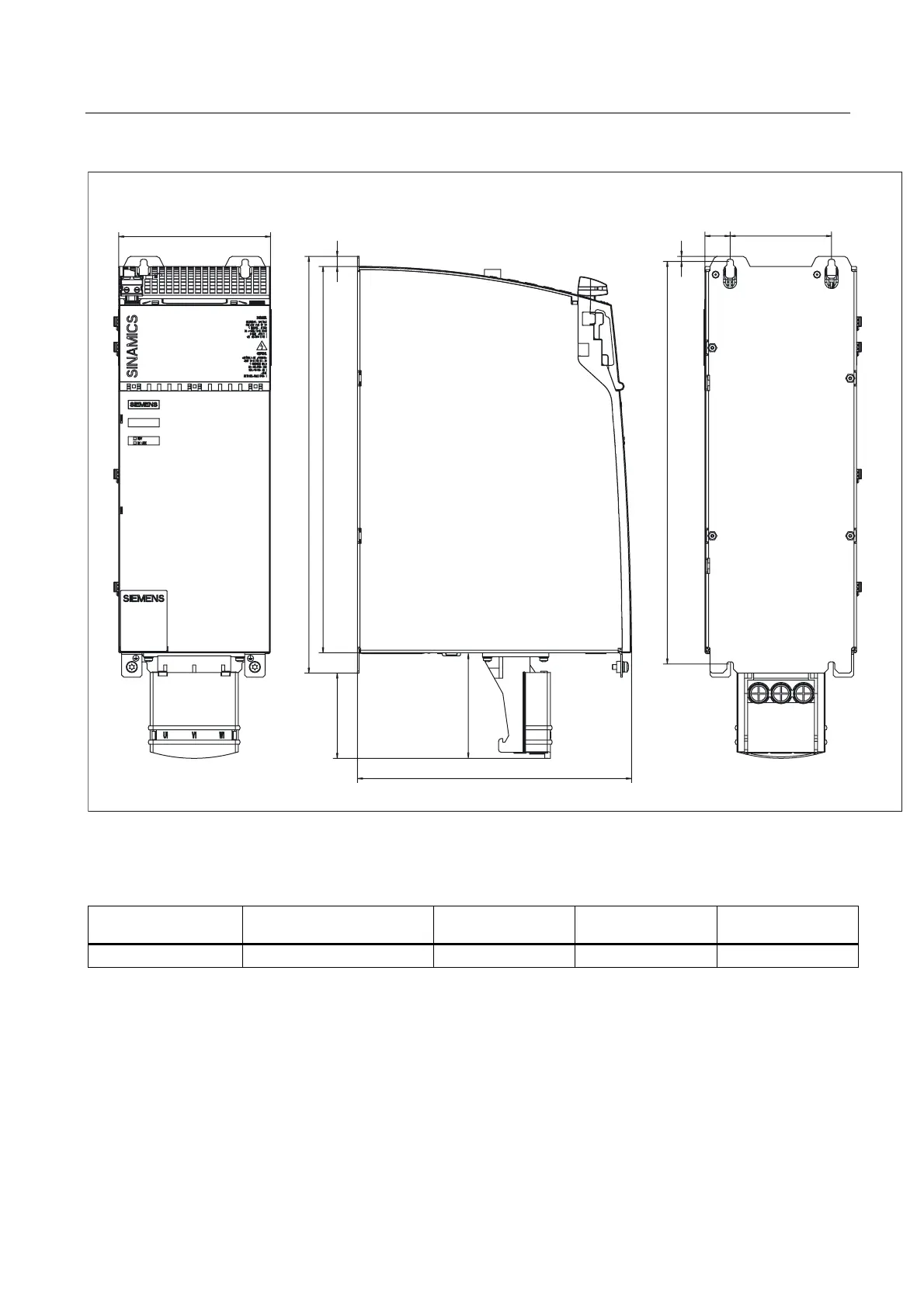

Figure 3-70 Dimension drawing: Smart Line Module Booksize format with internal cooling (36 kW), all dimensions in mm
and (inches)
Table 3-51 Dimensions of Smart Line Module Booksize format with internal air cooling
Smart Line Module
type
Order number W [mm] (inches) b [mm] (inches) h [mm] (inches)
36 kW 6SL3130-6TE23-6ABx 150 (5.91) 100 (3.94) 105 (4.13)
