Motor Modules Booksize
4.2 Motor Modules with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
333

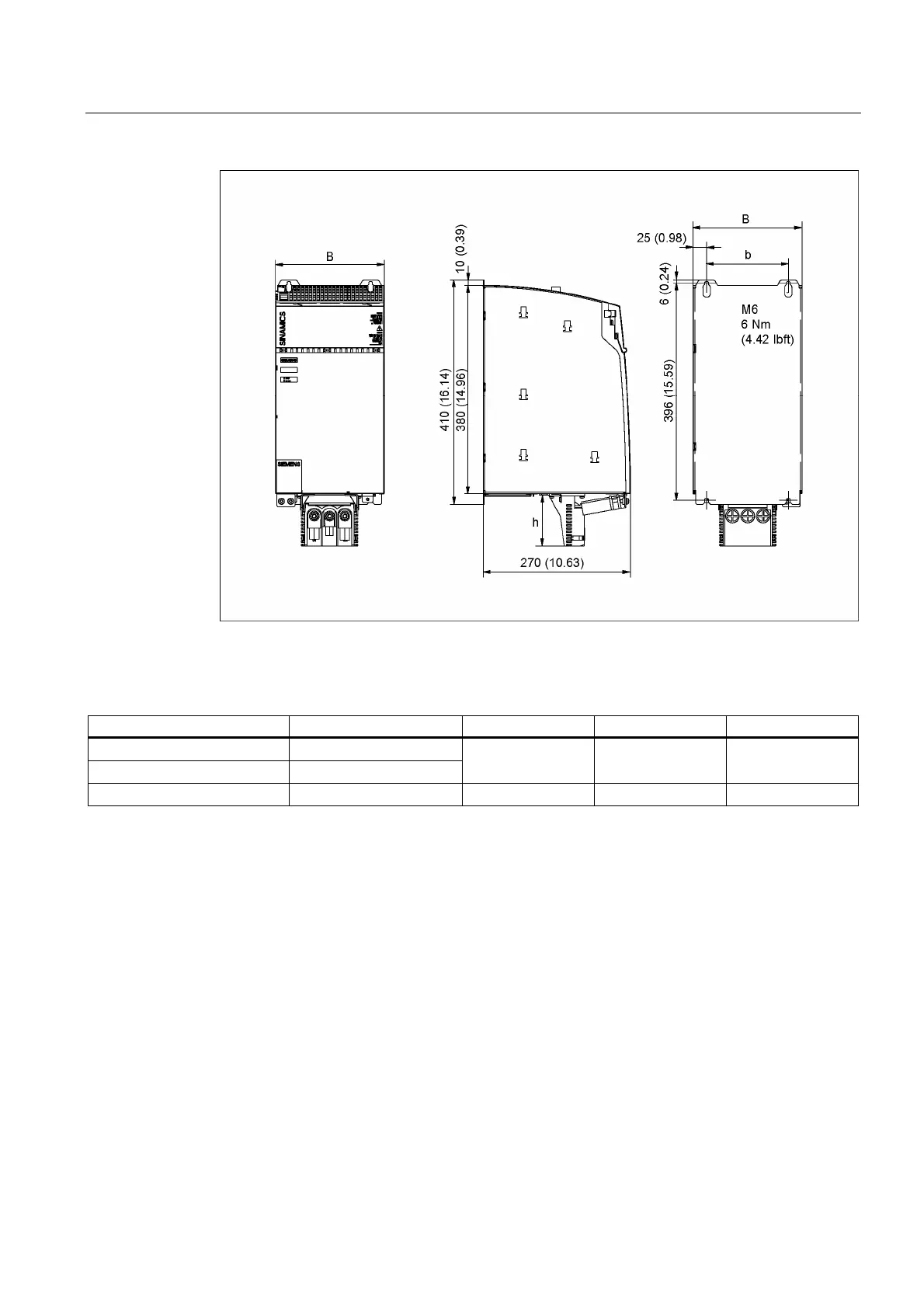

Figure 4-7 Dimension drawing: Motor Module Booksize format with internal air cooling 45 A and
85 A, all dimensions in mm and (inches)
Table 4-8 Dimensions: Motor Module Booksize format with internal air cooling (45 A to 85 A)
Motor Module type Order number W [mm] (inches) b [mm] (inches) h [mm] (inches)
Single Motor Module 45 A 6SL3120-1TE24-5AAx
Single Motor Module 60 A 6SL3120-1TE26-0AAx
150 (5.91) 100 (3.94) 105 (4.13)
Single Motor Module 85 A 6SL3120-1TE28-5AAx 200 (7.87) 150 (5.91) 105 (4.13)
