Motor Modules Booksize
4.3 Motor Module with external air cooling
Booksize power units
362 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
$
$
7KUHDGHGVWXGV0[
$$
$GDSWHUSODWHRUPRXQWLQJSODWH

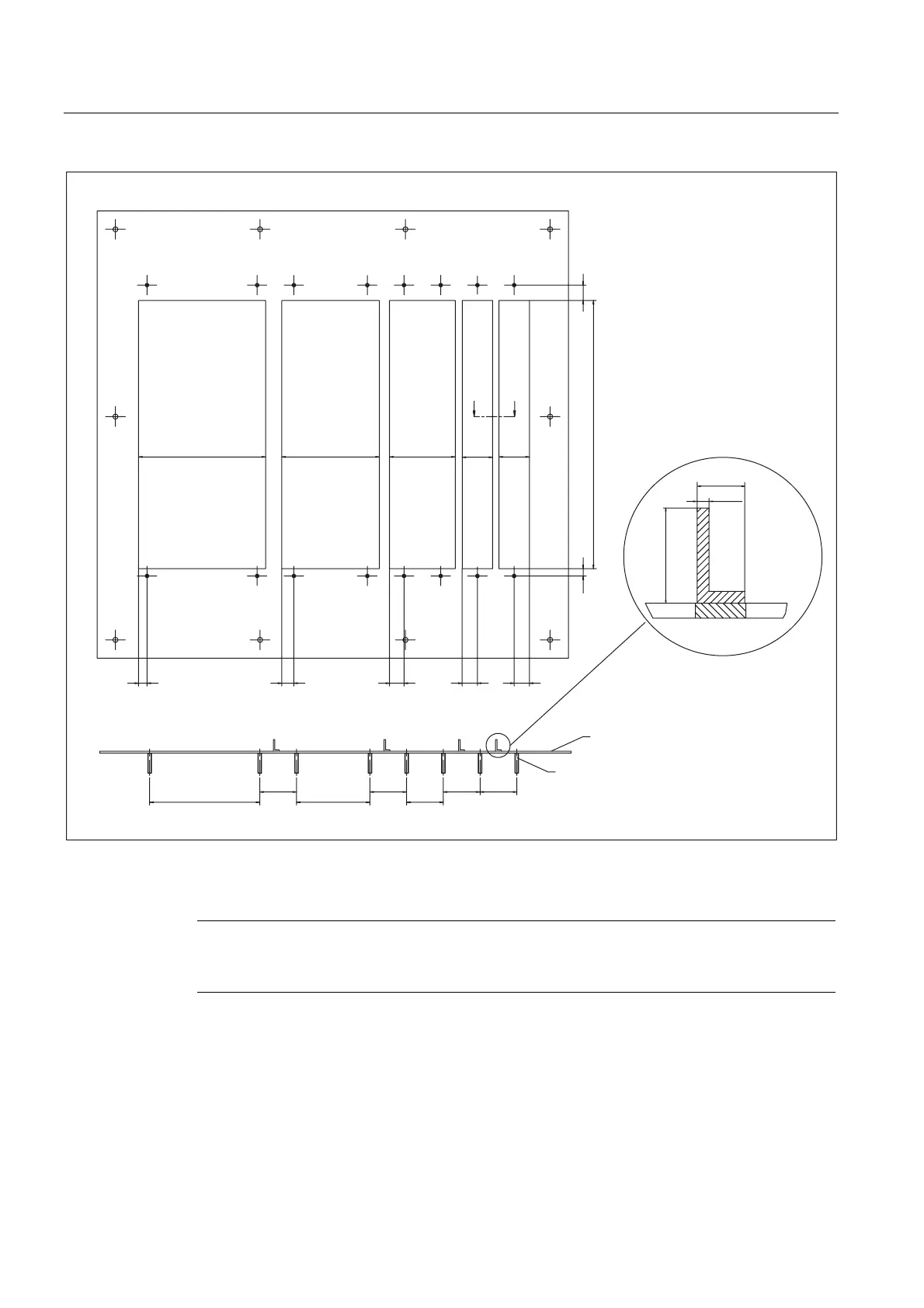

Figure 4-32 Example: mounting plate with a drive line-up
During installation it must be ensured that the component's seal is tight throughout.
Note
A set of seals consisting of spare seals for 50 mm, 100 mm, 150 mm, 200 mm and 300 mm
wide components can be ordered with order number: 6SL3162-5BU00-0AA0.
The cross-pieces must have the appropriate stability. If required, we recommend that you
reinforce the cross-pieces for the recesses. In our example, the cross-pieces have been
reinforced using brackets to EN 755-9. Any means necessary can be used to secure the
bracket to the insert plate.
