4.3 Motor Module with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
365
Remove the holder for securing the Control Unit
If an additional component is to be flush-mounted to the left of the component, the holders
for securing the Control Unit must be removed.

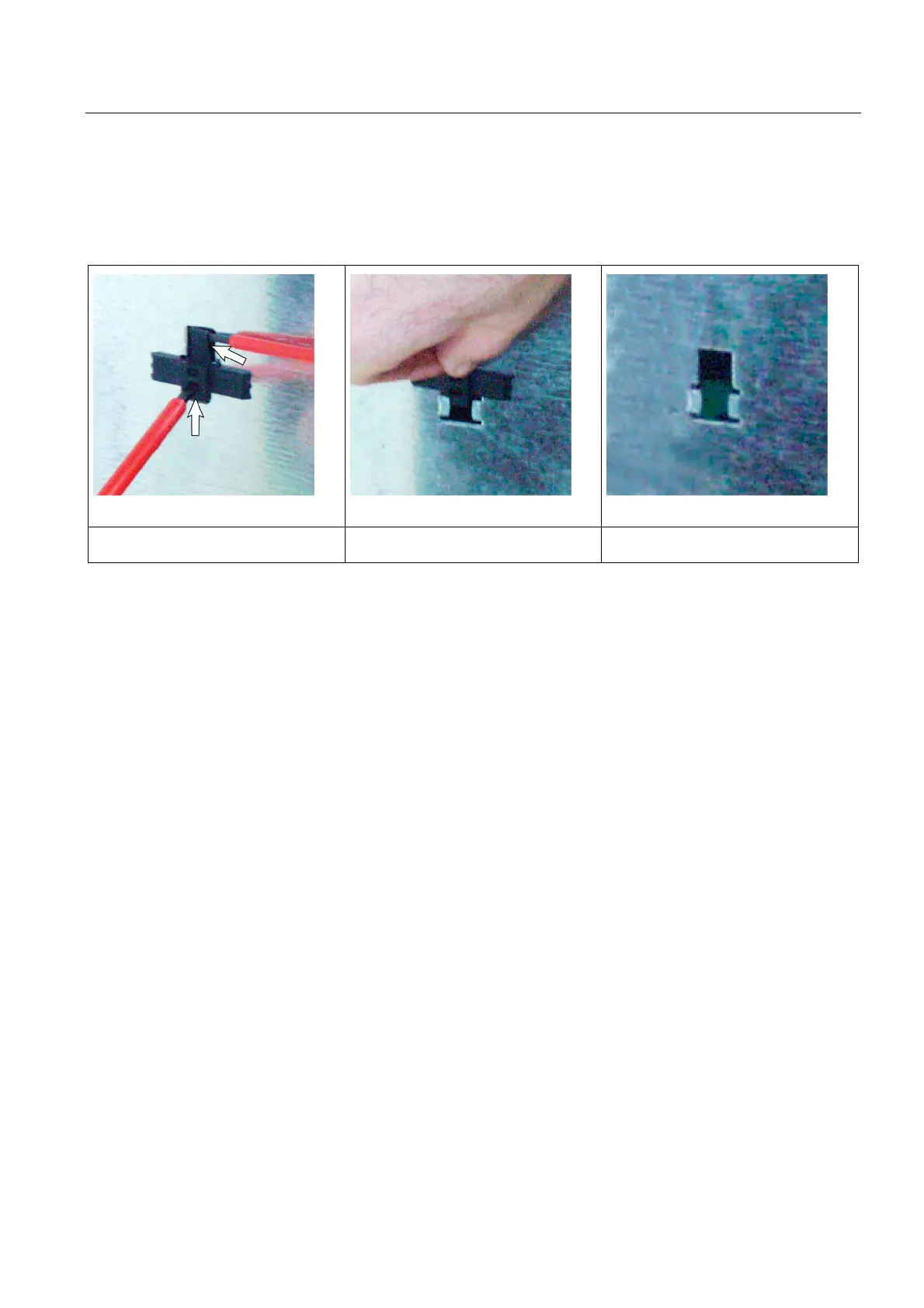

Use suitable tools to lift the latching device
and push up the holder
Remove the holder The holder removed
