Motor-Side Power Components
7.1 Motor reactors
Booksize power units
438 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6

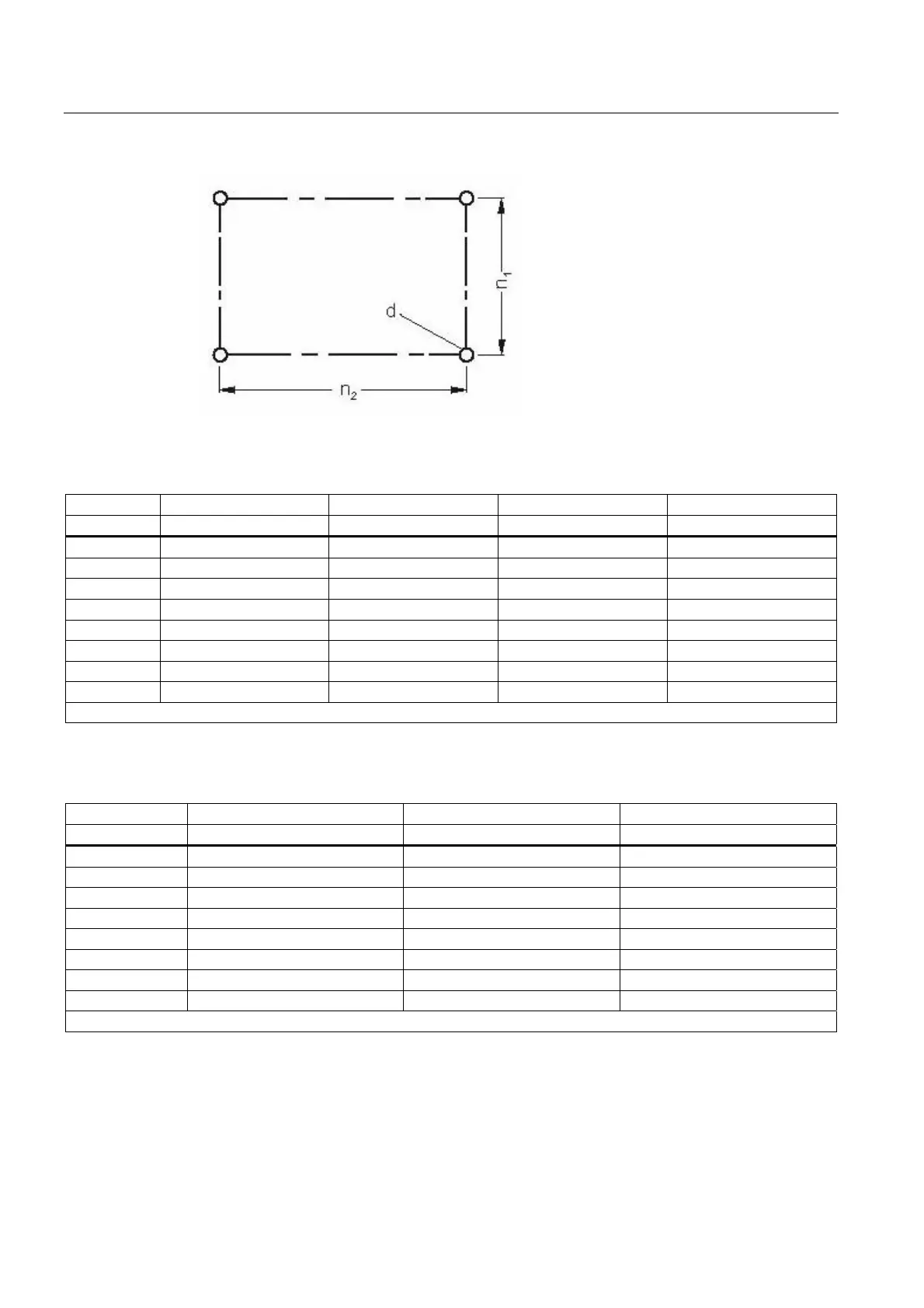

Figure 7-2 Mounting hole
Table 7-1 Dimensions of motor reactors, all data in mm and (inches)
6SE7021-0ES87-1FE0 6SE7022-6ES87-1FE0 6SE7024-7ES87-1FE0 6SE7027-2ES87-1FE0
Fig. III Fig. III Fig. II Fig. I
B 178 (7.00) 219 (8.62) 197 (7.75) 267 (10.51)
H 153 (6.02) 180 (7.08) 220 (8.66) 221 (8.70)
D 88 (3.46) 119 (4.68) 104 (4.09) 107 (4.21)
a - - 69 (2.71) 77 (3.03)
h 146 (5.74) 181 (7.12) 103 (4.05) 206 (8.11)
n1 68 (2.67) 89 (3.50) 70 (2.75) 77 (3.03)
n2 166 (6.53) 201 (7.91) 176 (6.92) 249 (9.80)
d M5 M6 M6 M6
1) Dimensions n1 and n2 correspond to the hole spacing
Table 7-2 Dimensions of motor reactors, all data in mm and (inches)
6SE7031-5ES87-1FE0 6SE7031-8ES87-1FE0 6SE7032-6ES87-1FE0
Fig. II Fig. II Fig. II
B 197 (7.75) 281 (11.06) 281 (11.06)
H 220 (8.66) 250 (9.84) 250 (9.84)
T 128 (5.03) 146 (5.74) 146 (5.74)
a 81 (3.18) 98 (3.85) 111 (4.37)
h 100 (3.93) 119 (4.68) 121 (4.76)
n1 94 (3.70) 101 (3.97) 101 (3.97)
n2 176 (6.92) 200 (7.87) 200 (7.87)
d M6 M8 M8
1) Dimensions n1 and n2 correspond to the hole spacing
