Accessories
8.1 Shield connecting plates
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
447

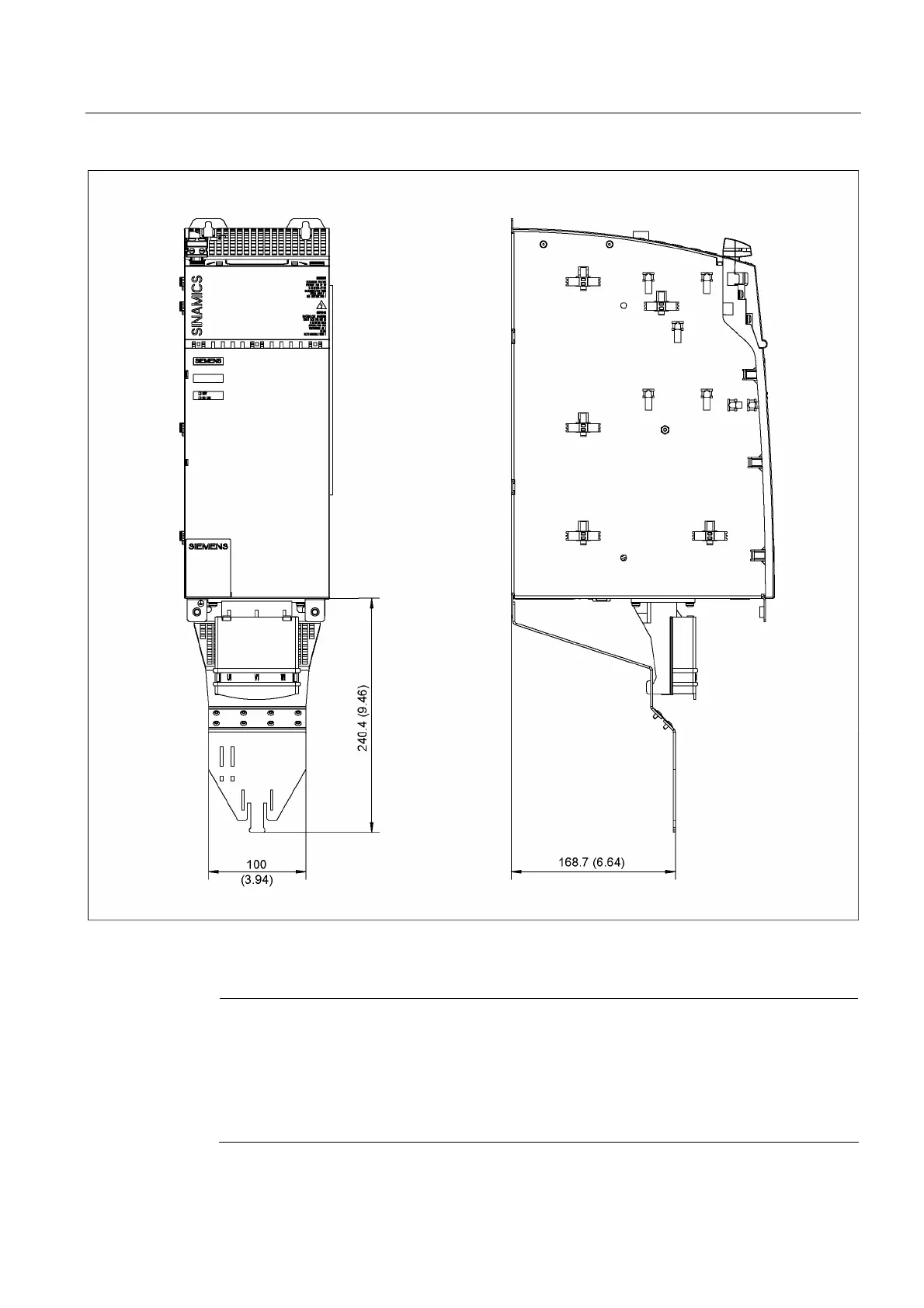

Figure 8-4 Dimension drawing of shield terminal plate on a 150 mm component (Line or Motor Module) with internal air
cooling, all dimensions in mm and (inches)
Note
A shield connecting plate can be ordered as option: Siemens, Order No. 6SL3162-1AF00-
0AA1
Recommended shielding connection clamps: from Weidmüller, Order No. KLBÜ CO1 and
KLBÜ CO4
Weidmüller: http://www.weidmueller.com
