Accessories
8.2 DC link rectifier adapter for Booksize format
Booksize power units
464 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6

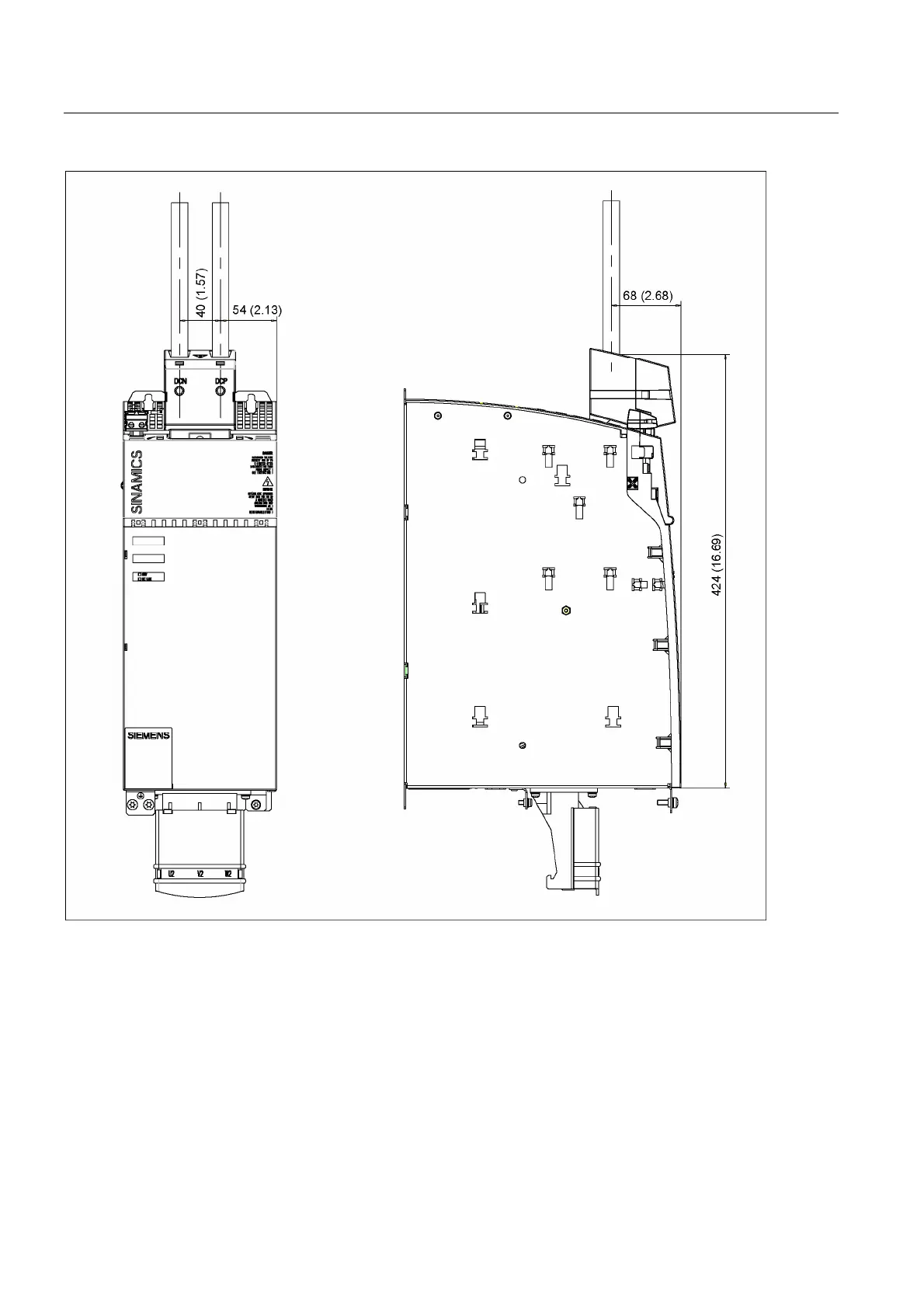

Figure 8-13 Dimension drawing of 150 mm component with DC link rectifier adapter for 35 mm² to 95 mm², all dimensions
in mm and (inch)
