Accessories
8.2 DC link rectifier adapter for Booksize format
Booksize power units
466 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6

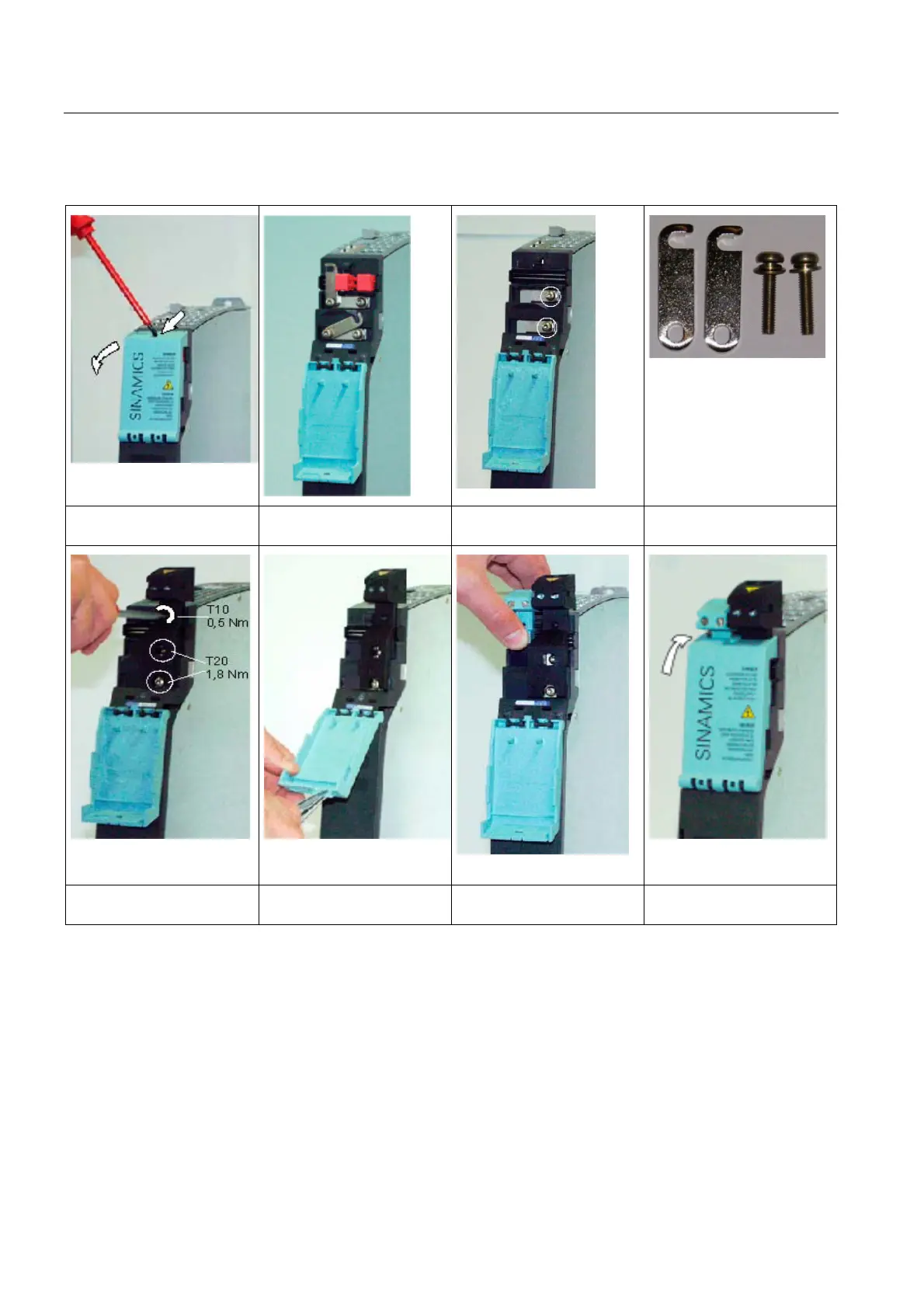

Table 8-8 Installing the DC link rectifier adapter for 50 mm and 100 mm components
Unlock and open the
protective cover
Opened cover with 24 V
jumper and DC link bridge
The DC link bridge and 24 V
jumper have been removed
Removed DC link bridge and
screws
Secure the adapter Break-out the recess using
suitable pliers
Attach the 24 V adapter Close the protective cover
