Cabinet Design and EMC Booksize
9.6 Connection systems
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
533
Various options are available for the shield contact
1. Shield contact with shield plate supplied.
This type of shield contact should be preferred.

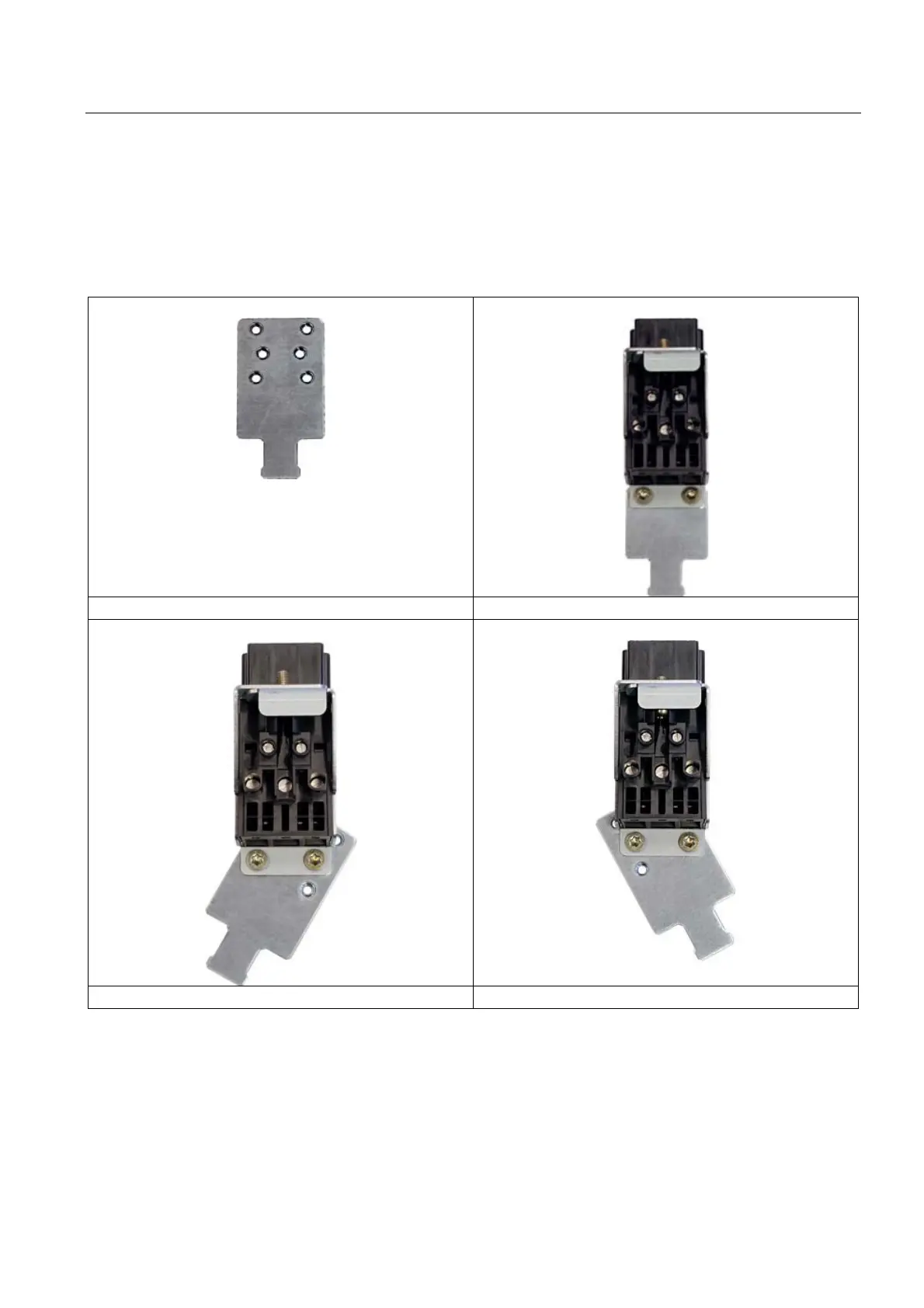

Table 9-19 Installing the shield plate
Shield plate supplied for power connectors Frontal alignment of the shield plate
Lateral alignment of the shield plate Lateral alignment of the shield plate
The shield plate can be installed at a number of angles using the two screws provided (M4)
(tightening torque 1.8 Nm).
2. Shield contact on a toothed rail
The toothed rail should be fitted at a distance of ≤ 150 mm below the drive line-up with
the greatest possible surface area. Wherever possible, the brake conductors must be
kept physically separate from U/V/W.
