Siemens SINUMERIK 802D sl Instruction Manual

Creating a Drive Project
10.2 Operating the control panel in STARTER (with the motor rotating)
10-147
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
– Enter a speed setpoint (e.g. 50 revolutions per minute).
– Use the cursor to highlight the slide controller for the setpoint in %. Position your cur-
sor on the slider, hold down the left mouse button, and set the speed to 0%.
!
Danger
During the start-up, observe the traversing ranges of the machine, or take appropriate
external measures, such as a limit switch monitoring.
Speed setpoint: 50
Percentage to 0%
8. Drive ON button

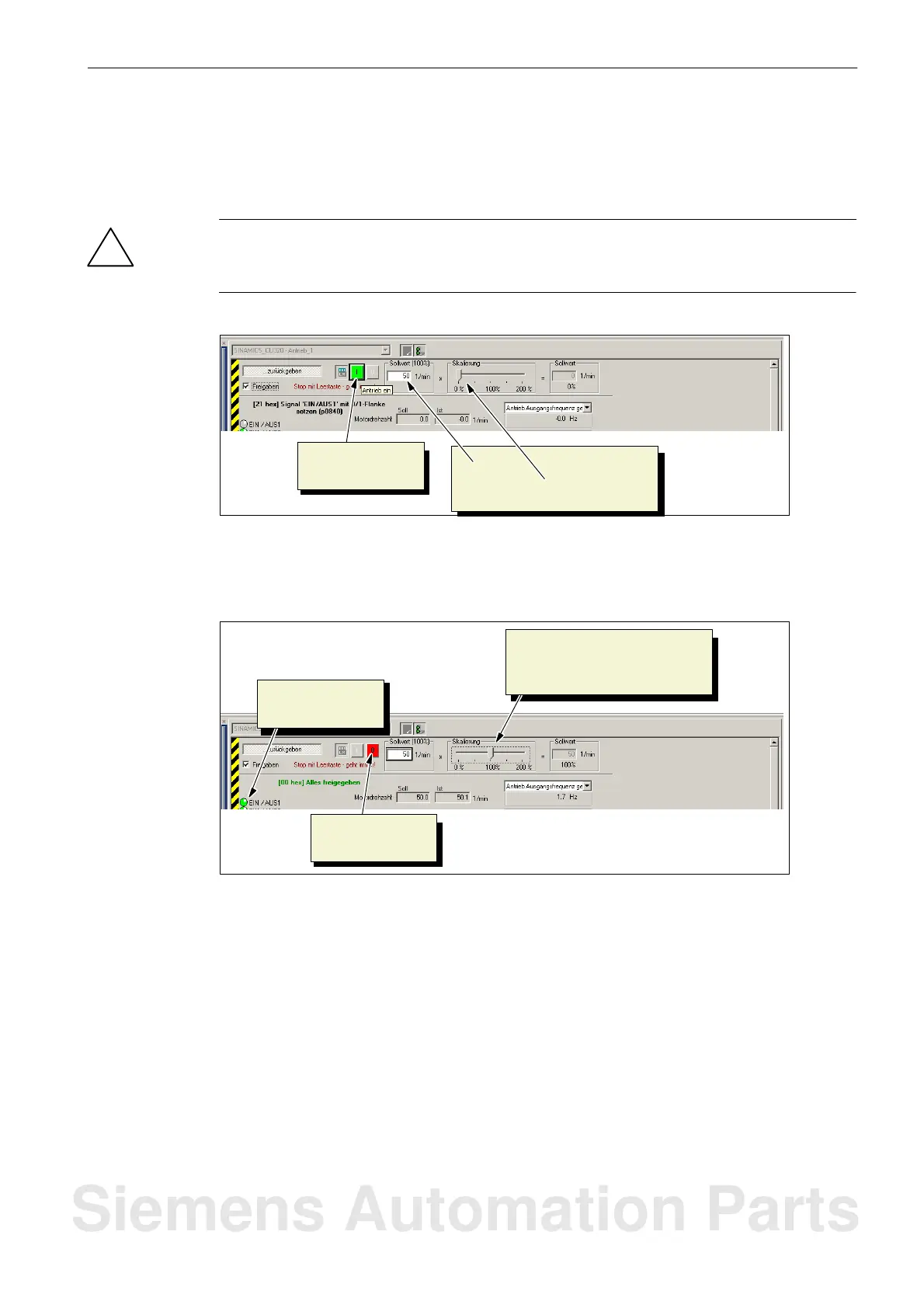

Fig. 10-38 Control panel prior to “Drive on”
8. Click the Drive on button. The ON/OFF1 “enable” command is set and displayed on the
control panel (see Fig. 10-39).
ON/OFF1 “enable”
command set.
10. Drive OFF
button
9.Increase the speed slowly
from 0 to 100%.
Fig. 10-39 The motor starts to rotate
9. Move the slider for the speed slowly from 0 to 100% (see Fig. 10-39).
The motor is rotating.
10.When you click Stop, the motor stops. You can also trigger a fast stop by pressing the
space bar.
In the following steps, reset the master controls to disconnect the drive:
– Supply
– Control unit
