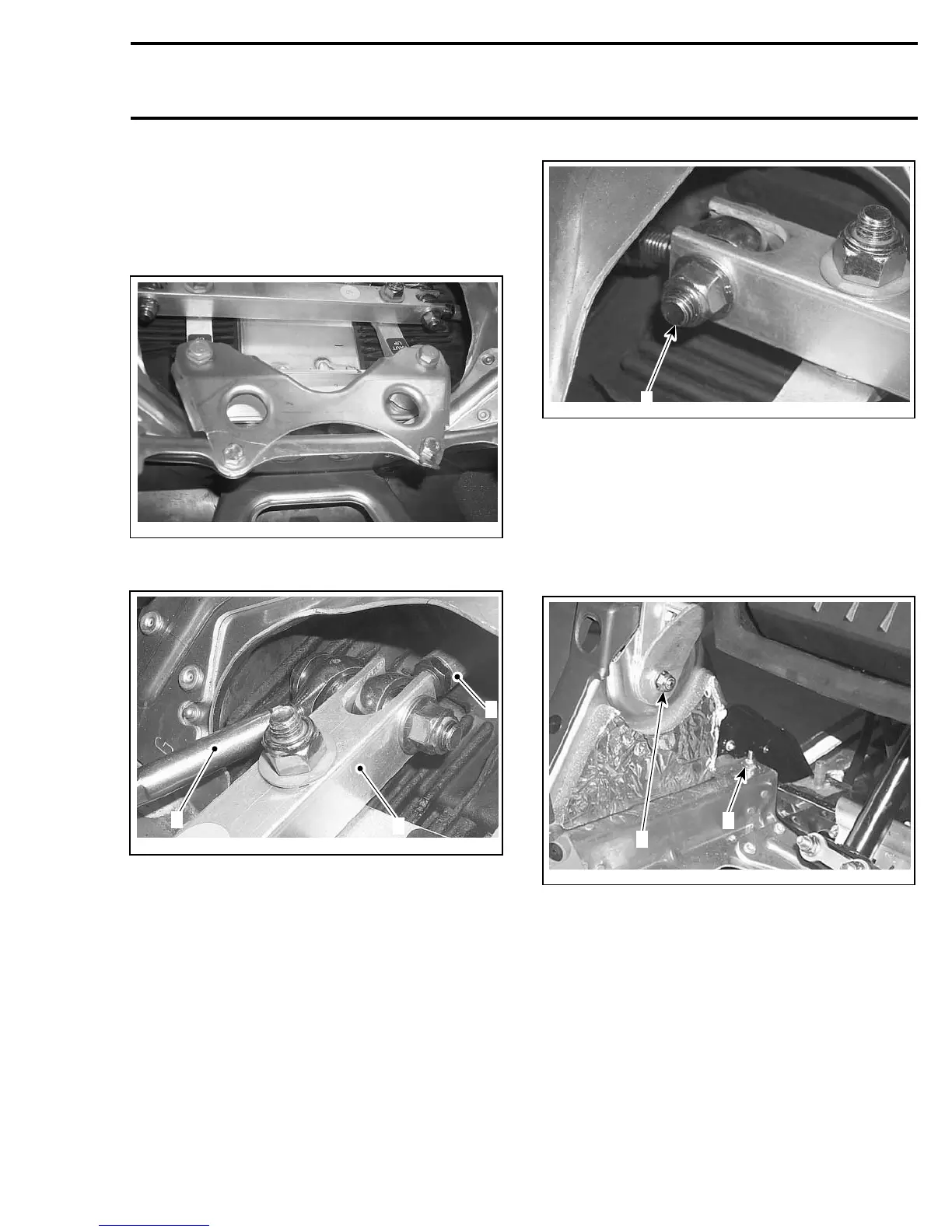

Section09BODY/FRAME
Subsection 02 (FRAME)
– hood
– muffler
– tuned pipe
– front bumper brace
– pivot support
A35H0KA
– bolt holding short tie-rod and LH tie-rod to swiv-
el bar
A35H0LA
1
3
2
1. Short tie-rod
2. Tie-rod
3. Swivel bar
– bolt holding RH tie-rod to swivel bar
A35H0MA
1
1. RH tie rod bolt
– swivel bar with swivel arms
– front shock absorbers
– upper and lower A-arms (with tie-rods and skis)
– bolts and nuts holding rear of lower cross mem-
ber to frame
– upper cross member nuts (on RH and LH sides)
A35H0NA
2
1
RH SIDE OF VEHICLE
1. Upper cross member nuts
2. Lower cross member nuts
