Section02ENGINE
Subsection 04 (ENGINE REMOVAL AND INSTALLATION)
Remove the following:
A35C1ZA
1

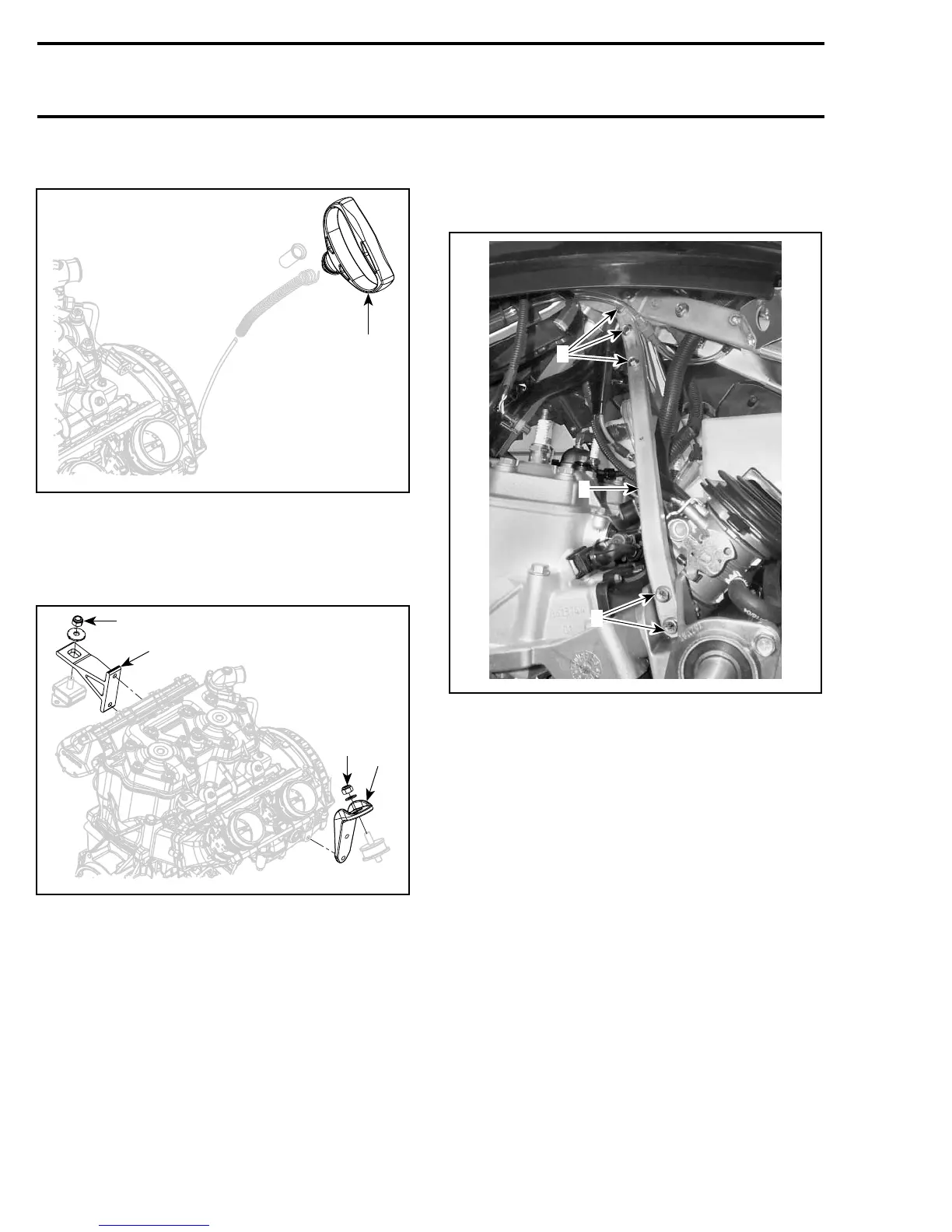

REWIND STARTER HANDLE REMOVAL
1. Rewind starter handle
NOTE: As an alternative method, the rewind
starter can be removed from the engine and put
aside.
A35C20A
1
2
1
2
ENGINE SUPPORT NUTS REMOVAL
1. Nuts
2. Engine support
On Left Side of Vehicle, do the Following:
Remove:
– belt guard
– drive belt
– drive pulley (refer to DRIVE PULLEY sub-
section)
– driven pulley (refer to DRIVEN PULLEY sub-
section)
– air intake silencer (engine side), refer to AIR IN-
TAKE SYSTEM section.
Remove LH handlebar support.
A35H07A
2
1
2
HANDLEBAR SUPPORT REMOVAL
1. Handle support
2. Bolts
Unscrew throttle body clamps.
Remove throttle body from intake adapters with
throttle cable and TPS connector in place.
28 mmr2005-115
