Section02ENGINE
Subsection 04 (ENGINE REMOVAL AND INSTALLATION)
A35C21A
1
2

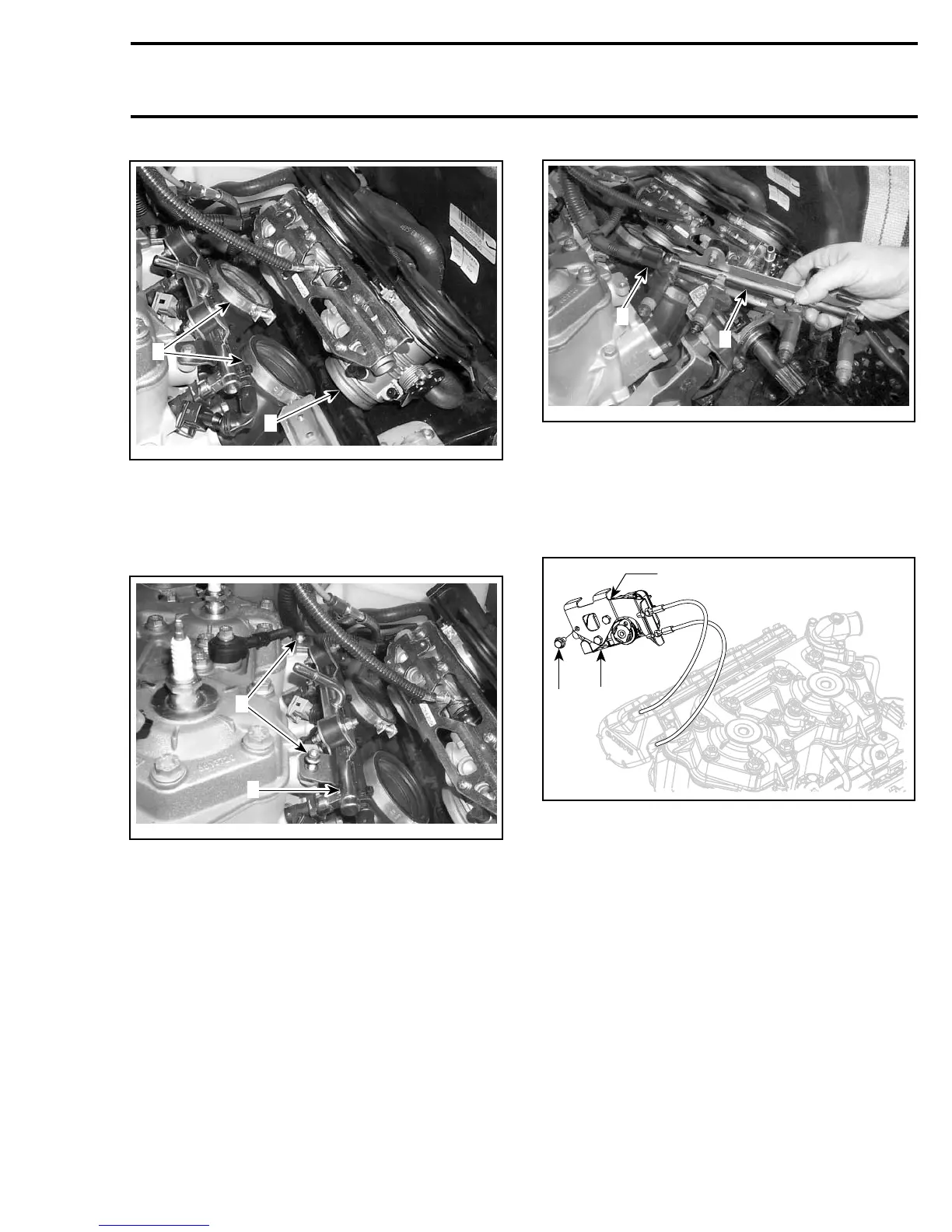

THROTTLE BODY REMOVAL
1. Clamps
2. Throttle body
Unplug fuel filter line from fuel rail.
Unscrew and remove fuel rail from engine.
A35C1YA
2
1
FUEL RAIL REMOVAL
1. Screws
2. Fuel rail
Unplug injectors and remove fuel rail from plastic
retaining plate.
Put fuel rail aside.
CAUTION: Take care not to damage fuel injec-
tors.
A35C22A
1
2
FUEL RAIL DISASSEMBLY
1. Fuel rail
2. Plastic retainer plate
Unscrew E-RAVE actuator from frame.
Unplug connector and put E-RAVE actuator on top
of engine.
A35C23A
2
1
3
E-RAVE ACTUATOR REMOVAL
1. E-RAVE actuator
2. Unscrew
3. Connector
Remove LH engine support nuts.
mmr2005-115 29
