Section02ENGINE
Subsection 04 (ENGINE REMOVAL AND INSTALLATION)
2
1
A35C24A

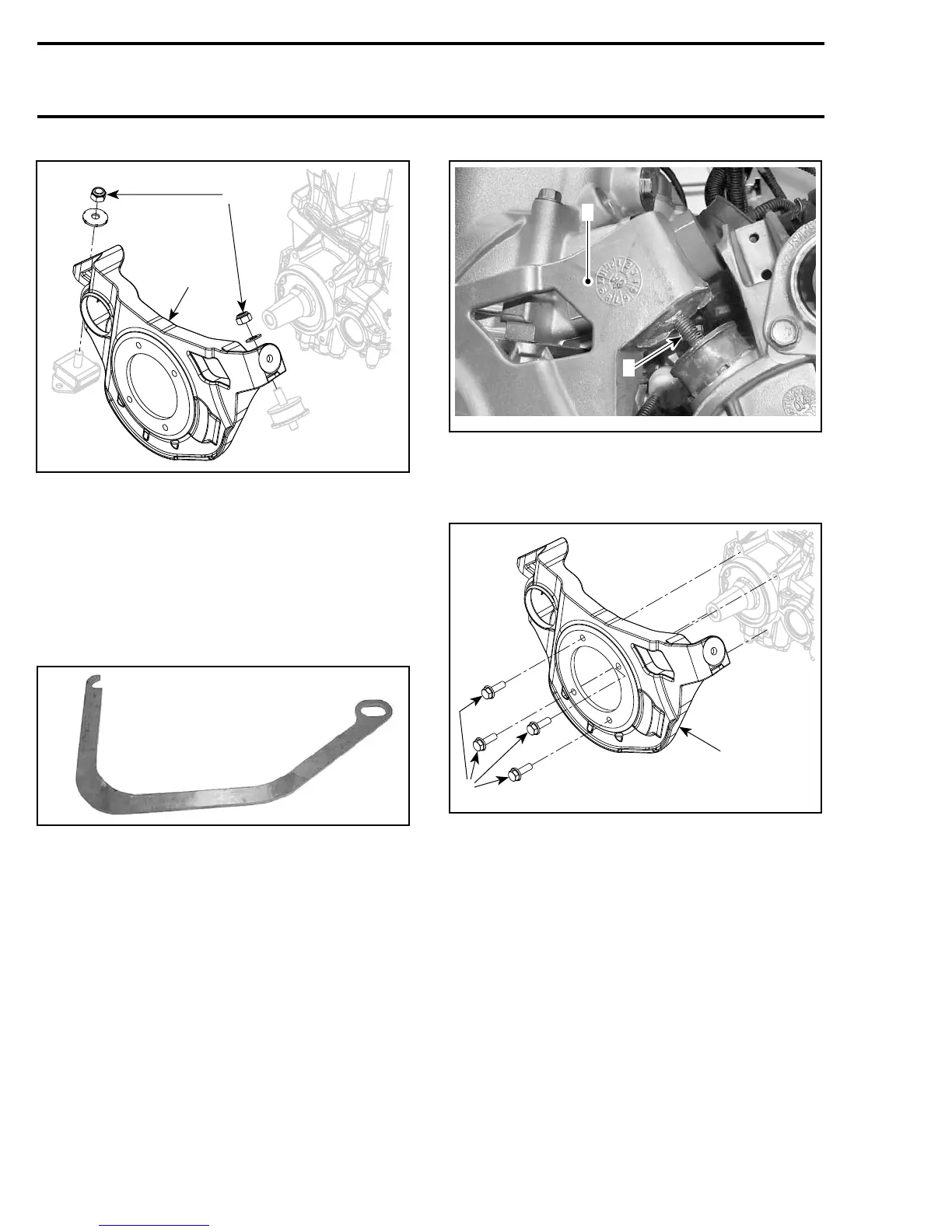

ENGINE SUPPORT NUTS REMOVAL
1. Nuts
2. Engine support
Remove both spark plugs.
Install in the MAG side spark plug hole the spark
plug lift ring (P/N 529 035 830).
Using the engine removal hook (P/N 529 035 829),
lift engine until engine supports are free from rub-
ber mount studs.
529 035 829
A35C25A
2
1
PTO ENGINE SUPPORT LIFTED
1. Engine support
2. Rubber mount stud
Remove PTO engine support.
A35C26A
1
2
PTO ENGINE SUPPORT REMOVAL
1. Remove
2. PTO engine support
Detach oil pump cable from oil pump.
Unplug oil outlet hose.
Unplug diaphragm fuel pump pulse hose.
Unplug oil inlet hose.
30 mmr2005-115
