Section02ENGINE
Subsection 08 (BOTTOM END)

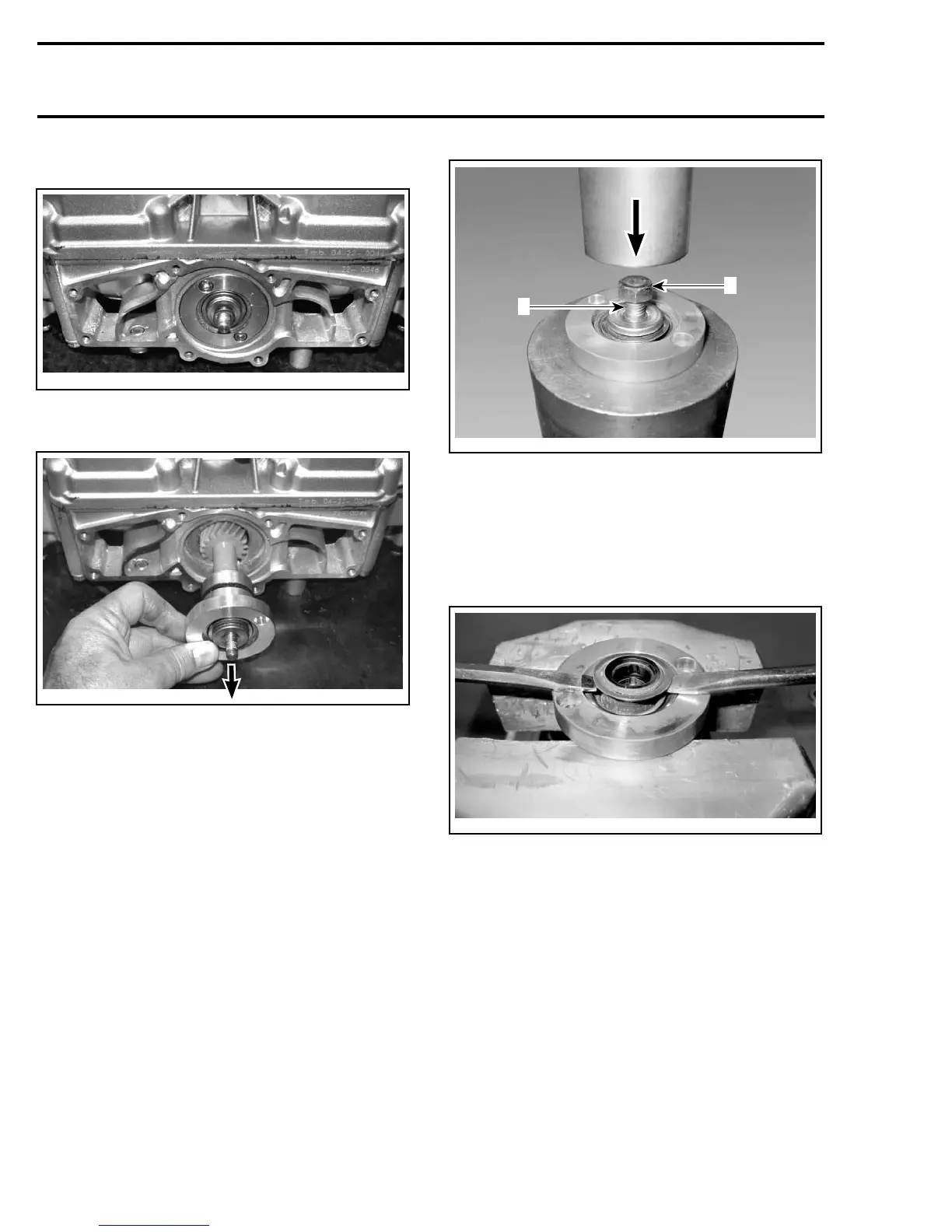

– Bearing housing screws no. 12.
A35C1CA
From injection oil pump side, push shaft out while
turning shaft to release it from worm gear.
A35C1DA
Disassembly
CAUTION: Pay attention not to damage the
bearing housing no. 13 during disassembly.
Marks or other damages will lead to coolant
and/or oil leaking.
NOTE: For disassembly/assembly procedure a
press is required.
Protect the threads of shaft with a suitable M8 nut.
Properly support bearing housing and push shaft
out.
A35C49A
1
2
1. M8 nut
2. Shaft
CAUTION: When removing coolant pump
shaft, always replace ceramic seal no. 14 and
oil seal no. 15. Ceramic seal cannot be re-
moved without damage.
Pry inner part of ceramic seal no. 14 out.
A35C4AA
Extract bearing no. 16 from the bearing housing
using an appropriate pusher.
66 mmr2005-118
