Section02ENGINE
Subsection 08 (BOTTOM END)
A35C4FA

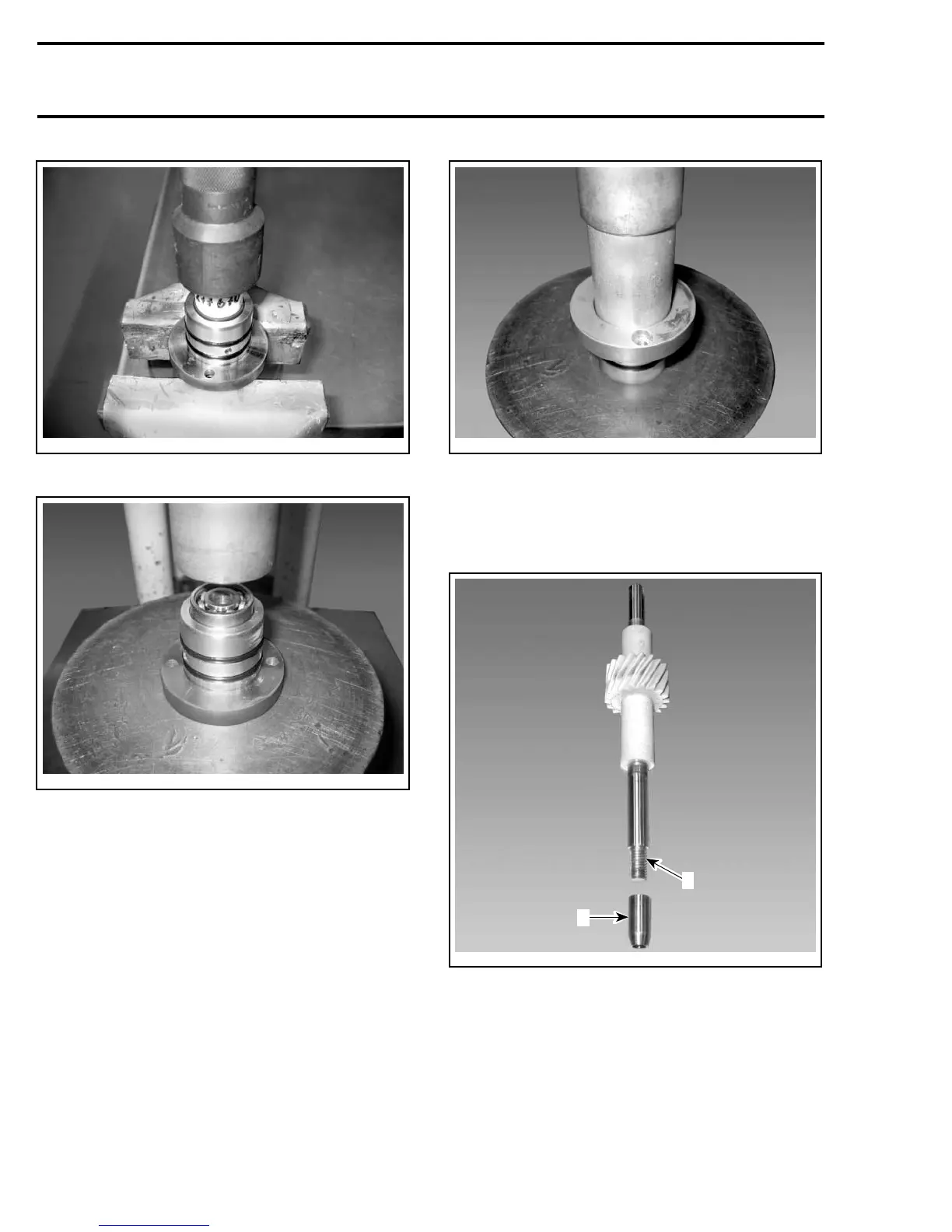

Press bearing no. 16 into bearing housing no. 13.
A35C4GA
Push the new ceramic seal no. 14 in bearing hous-
ing no. 13 using the coolant pump ceramic seal in-
staller (P/N 529 036 014).
A35C4HA
CAUTION: Never use a hammer for the ceram-
ic seal installation. Only use a press to avoid
damaging the ceramic component.
Put oil seal protector (P/N 529 035 822) on
coolant/oil pump shaft no. 18.
A35C4IA
1
2
1. Coolant/oil pump shaft
2. Oil seal protector
Press coolant/oil pump shaft no. 18 into the bear-
ing housing no. 13 with appropriate force.
CAUTION: Inadequate force will damage the oil
seal no. 15 and bearing no. 16.
68 mmr2005-118
