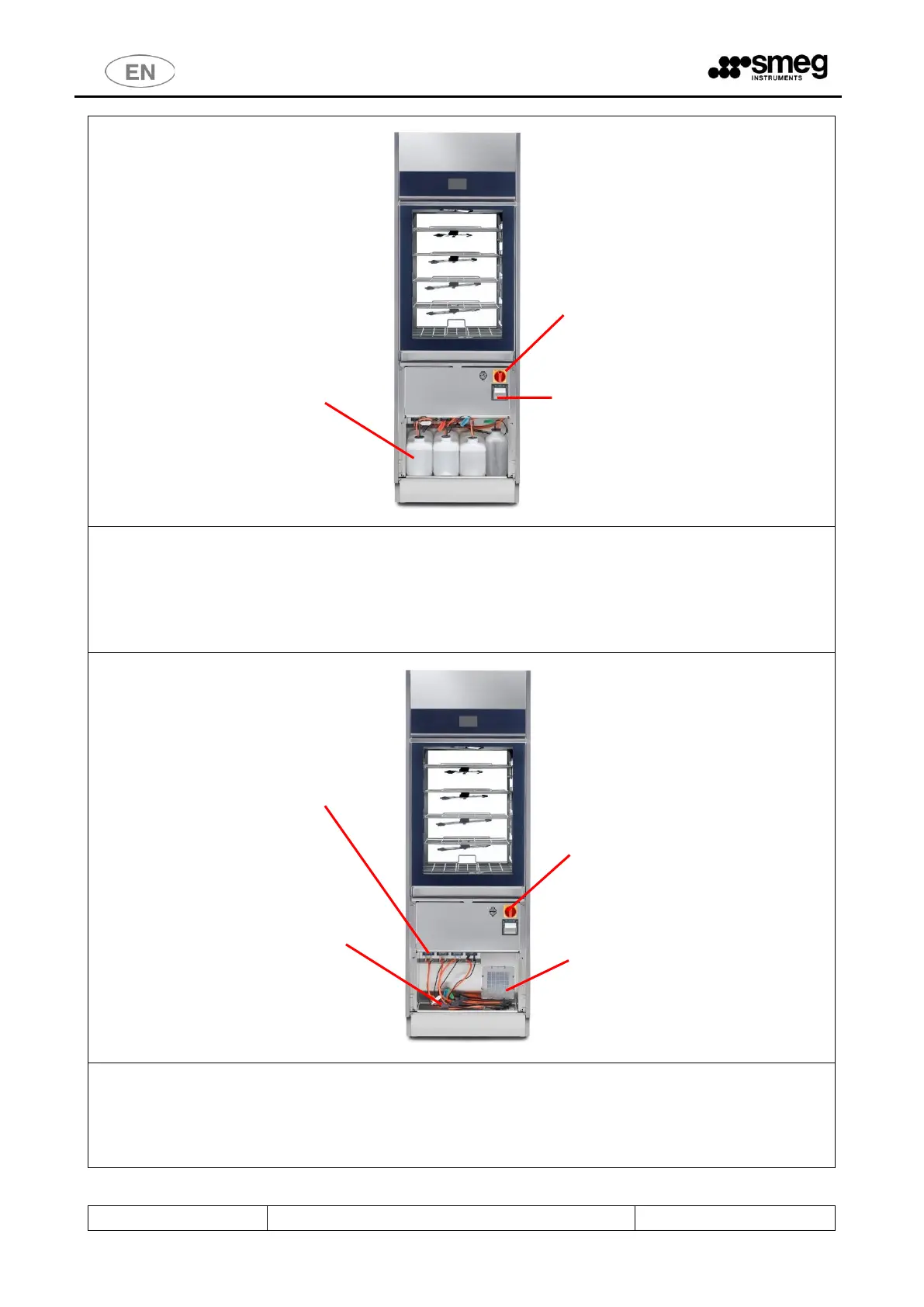

“LOADING” SIDE VIEW of the device: the lower small door to access the detergent compartment has
been removed. The main starting switch can only be accessed with the door open.
In the double door version: the disconnector is only on the “unclean” side (“loading side”).
USB PORT: Near the disconnector is the USB port, to be used by authorized technicians, for
communication and device diagnostics. In the double door version: the USB port is only on the load
side.
“UNCLEAN” SIDE (“LOADING” SIDE) VIEW of the device, the lower small door to access the detergent
compartment has been removed. The detergent jerrycans are not visible, but the following can be seen:
- detergent suction lances with level sensor
- air filters for drying system (dryer)
- peristaltic pumps (pumps for liquid detergent dosage)
