Smeg WD7010 - Single Door Machine

USER MANUAL
WD6010 – WD7010 – WD7015
Page 148 - 168

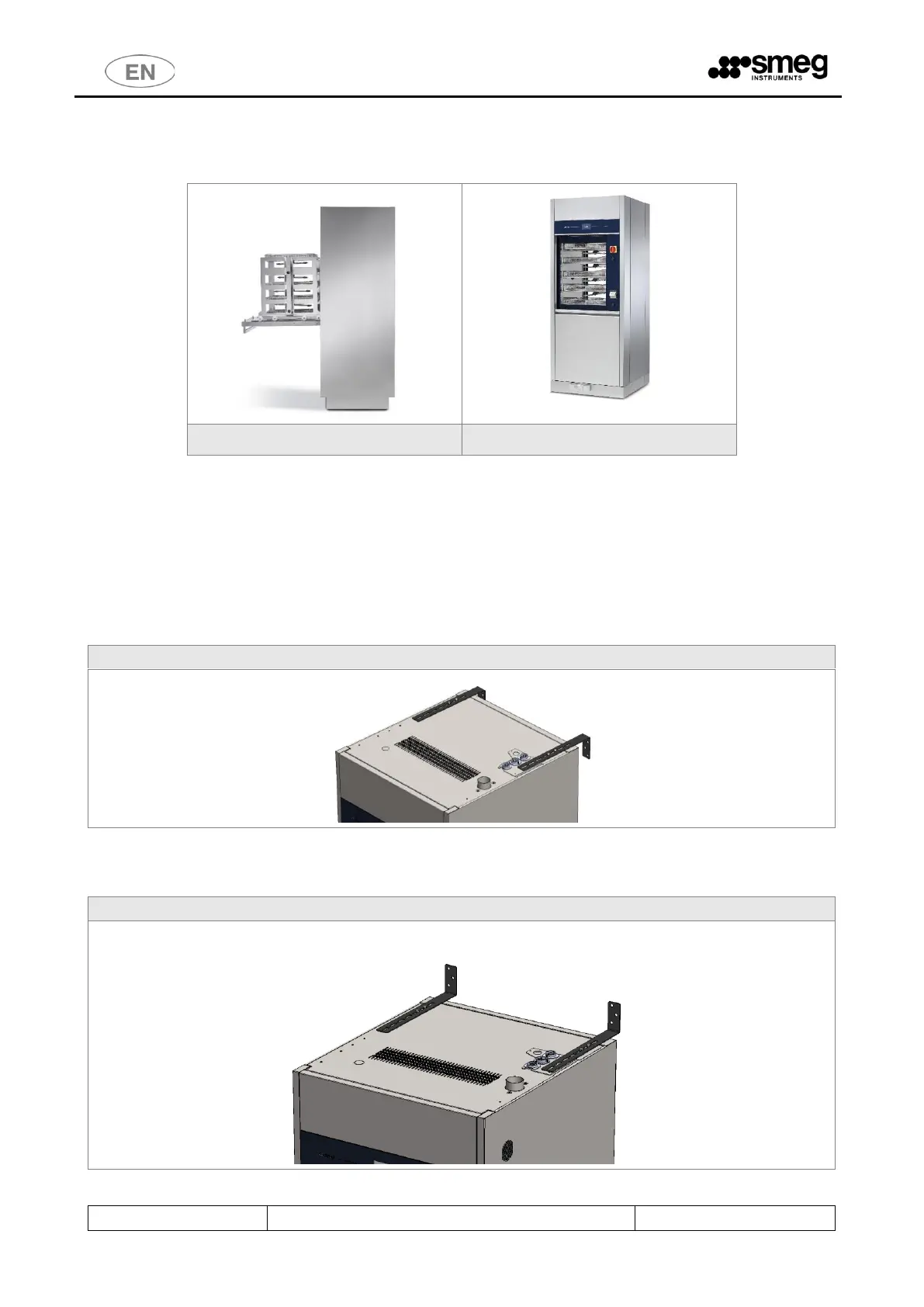

14.2.1 “SINGLE DOOR” MACHINE
Machine with hinged door
Machine with sliding door
The single door machine must be placed with its rear side against a wall. The client takes care of positioning
the machine.
FASTENING TO THE BACK WALL
FOR MACHINE WITH HINGED DOOR: FASTENING TO THE BACK WALL IS NECESSARY
For a better stability of the machine, this must be fastened to the rear wall using the provided brackets. The
brackets must be fastened to the top steel panel of the machine, using the provided screws. During
transport, the brackets are already secured to the “TOP” panel.
BRACKETS – AS SECURED DURING TRANSPORT
They must be dismantled and mounted again properly as shown in the following figure.
BRACKETS – HOW TO MOUNT THEM TO BE FASTENED TO THE WALL
