14.4 ACCESS TO THE ELECTRICAL CABLE AND TO THE WATER CHARGING HOSES
Access to the electrical cable and charging hoses is differentiated according to the typology of the device:
Devices with sliding doors
Devices with hinged doors NOT
fitted with optional boilers.
Devices with hinged doors WITH
OPTIONAL BOILERS.
Power cable and water charging
hose fitting procedure
Accessible from the top of the
machine.
Accessible from the rear (or
“clean side” in “double door”
variant), after remove of the
metal cover panel.
14.4.1 ACCESS FROM TOP OF DEVICE
In the transport phase the hoses and cables are placed in a safety position, protected by the top panel of
the device.
At the first installation the authorized technician will make the hoses accessible:
1. Removing the MOULDED PLATE on the top of the machine.
2. Placing the hoses in the most correct position and using the hose stops provided in the accessories
pack:
a. Red hose: hot water.
b. Blue hose: cold water.
c. White hose: demineralized water.
3. At the end, replacing and fastening the top.
N.B.: The authorised technician may set up the device so that the power cable and water
connection pipes are accessible from the back instead of the top.
WARNING
The air and steam vent tube has hot surfaces: during installation, fix the power cable and
water charging hoses so that they are always a suitable distance from the vent (at least 10
cm).

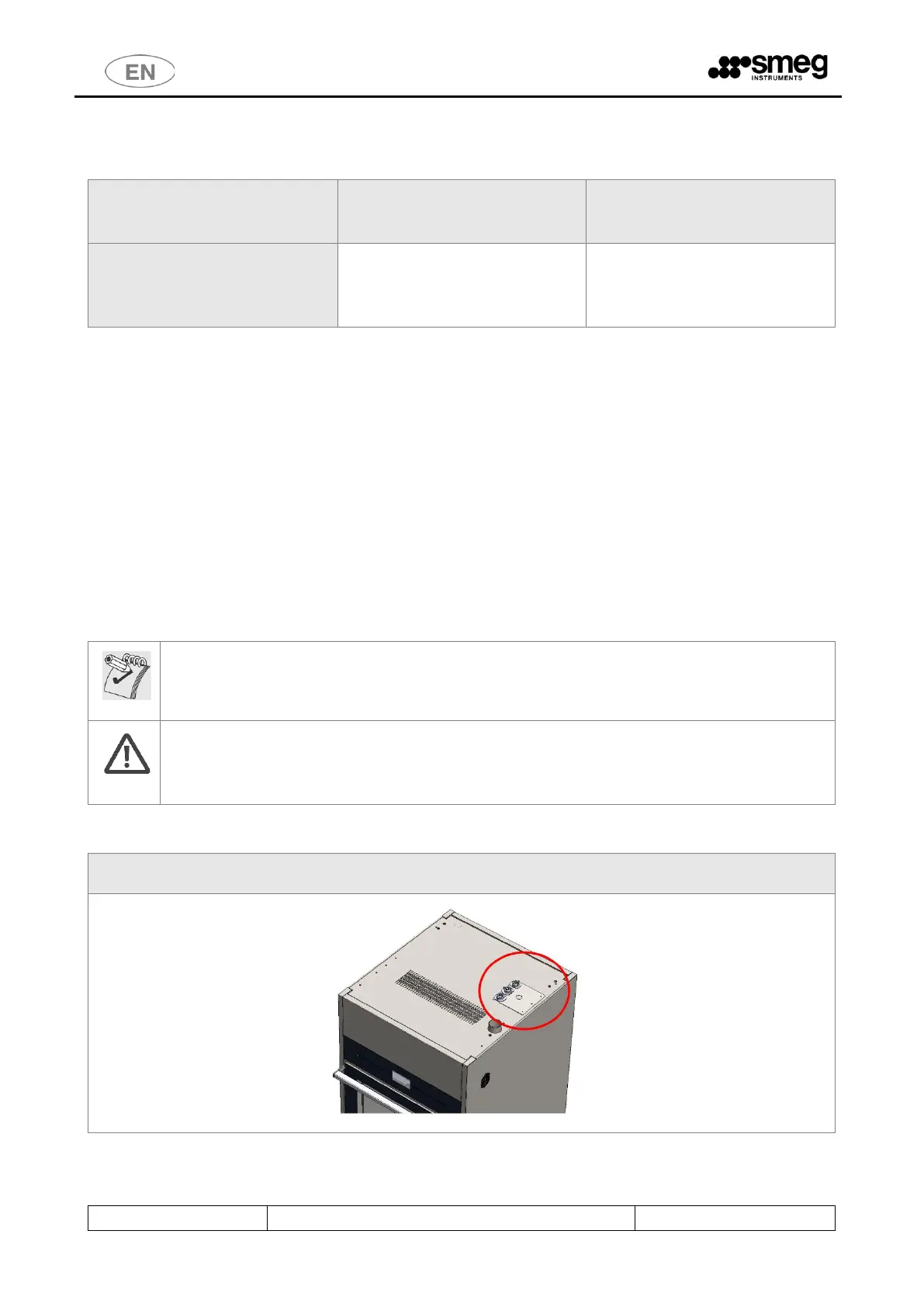

SPECIFIC VIEW OF “MOULDED PLATE” ON THE TOP OF THE DEVICE
