The wall fastening elements (e.g. the dowels) are not supplied with the product; they are at the
client’s expense and must be chosen properly according to the type of back wall.
14.2.2 “DOUBLE DOOR” MACHINE
The “standard” positioning of the product is to align the front part against a wall, separating the unclean
and clean sides.
The distinguishing feature of the “double door” machine is the separation of washing areas:
1. Unclean side (or “loading side”): receives dirty items that have not been processed.
2. Clean side (or “unloading side”): receives items that have already been treated with thermal
disinfection

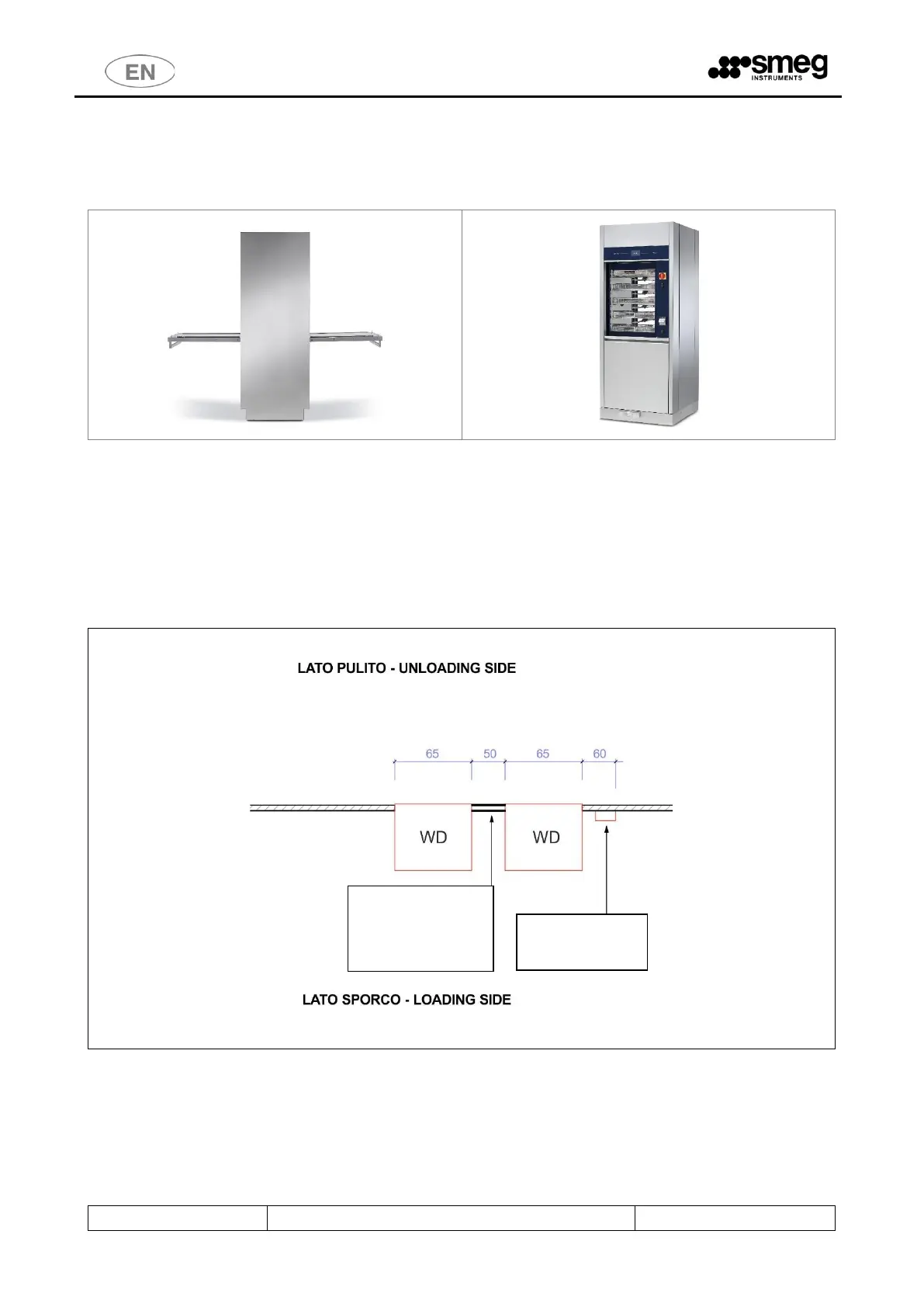

Figure 14.1 – Example of “feedthrough” positioning of two WDs
Additional installation option: position the machine so that the two free sides are aligned against two walls
in order to create an intermediate compartment which is always free and available for technical assistance.
