7.2.1 LIQUID DETERGENT SUCTION SYSTEM
Configuration with LEVEL SENSOR.
1. Suction lance with integrated level sensor and a cone-shaped rubber support for positioning in the
jerrycan.
2. Flexible silicone tube to connect the suction hose to the peristaltic pump.
3. Detergent suction filter, mounted directly on the lance suction cannula.
WARNING
The label attached to the suction tube must be congruent with the type of detergent used.
Please refer to the colour code above.
Connection mistakes impair the efficiency of the process and may damage parts of the circuit.
Any error leading to improper connection of the detergent suction system voids the warranty
agreement between the involved parties.
The suction tube is equipped with a suction filter. Make sure that the filter is always there and
placed correctly in order to preserve the good functioning of the detergent inflow system. Check
periodically that the silicone tube is adequately secured to the suction tube and that there is no
leakage.

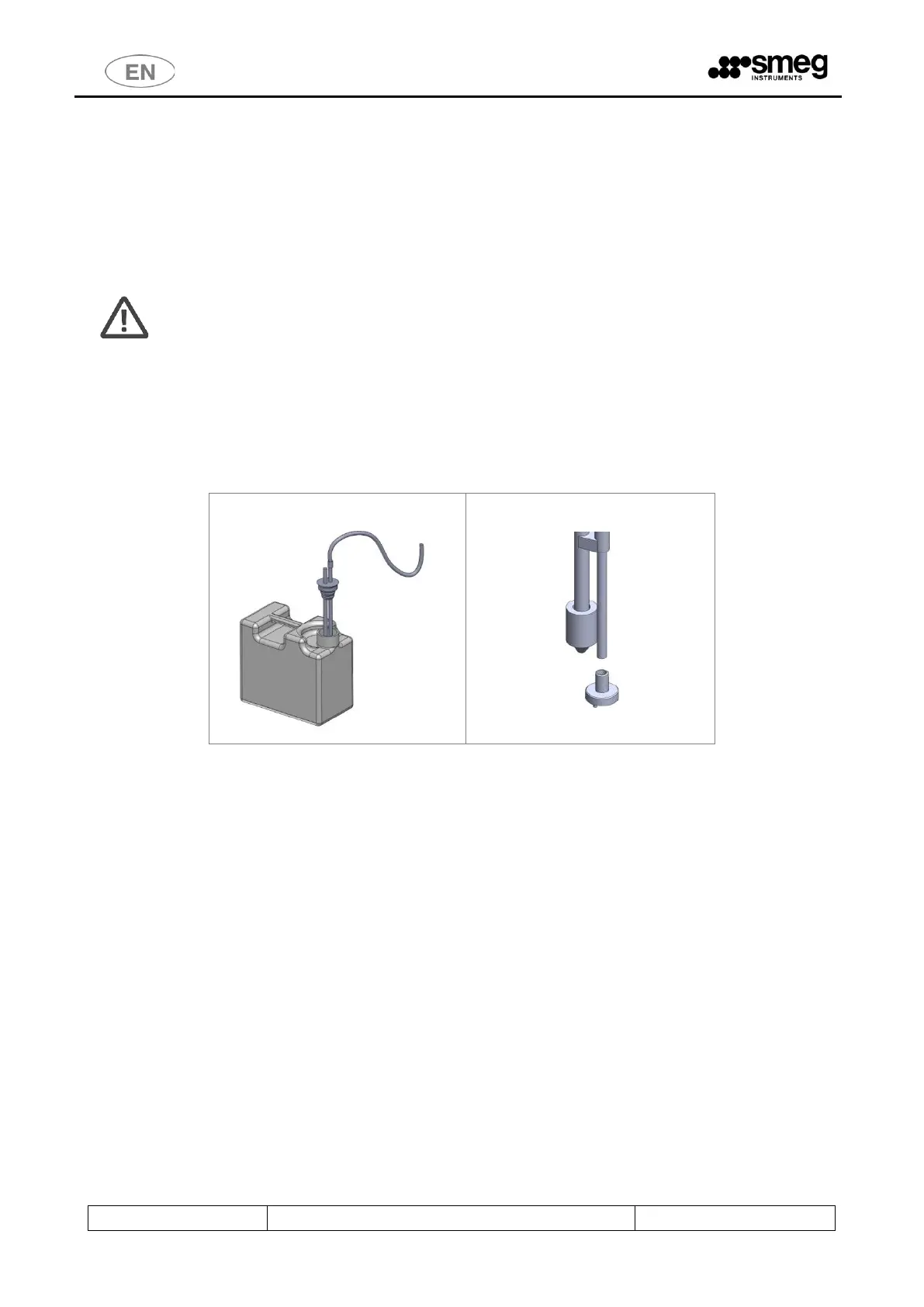

fig. 2 – STANDARD Configuration of detergent suction device. Place of detergent suction tube in the jerrycan. Fit the rubber cap to the jerrycan
opening for optimal placement. The tube is equipped with a suction filter.
