14.4.2 ACCESS FROM REAR
The devices (with hinged doors) equipped with optional boilers present the cables for electrical
connection and the water charging hoses accessible from the back side of the machine, as shown in the
following images.

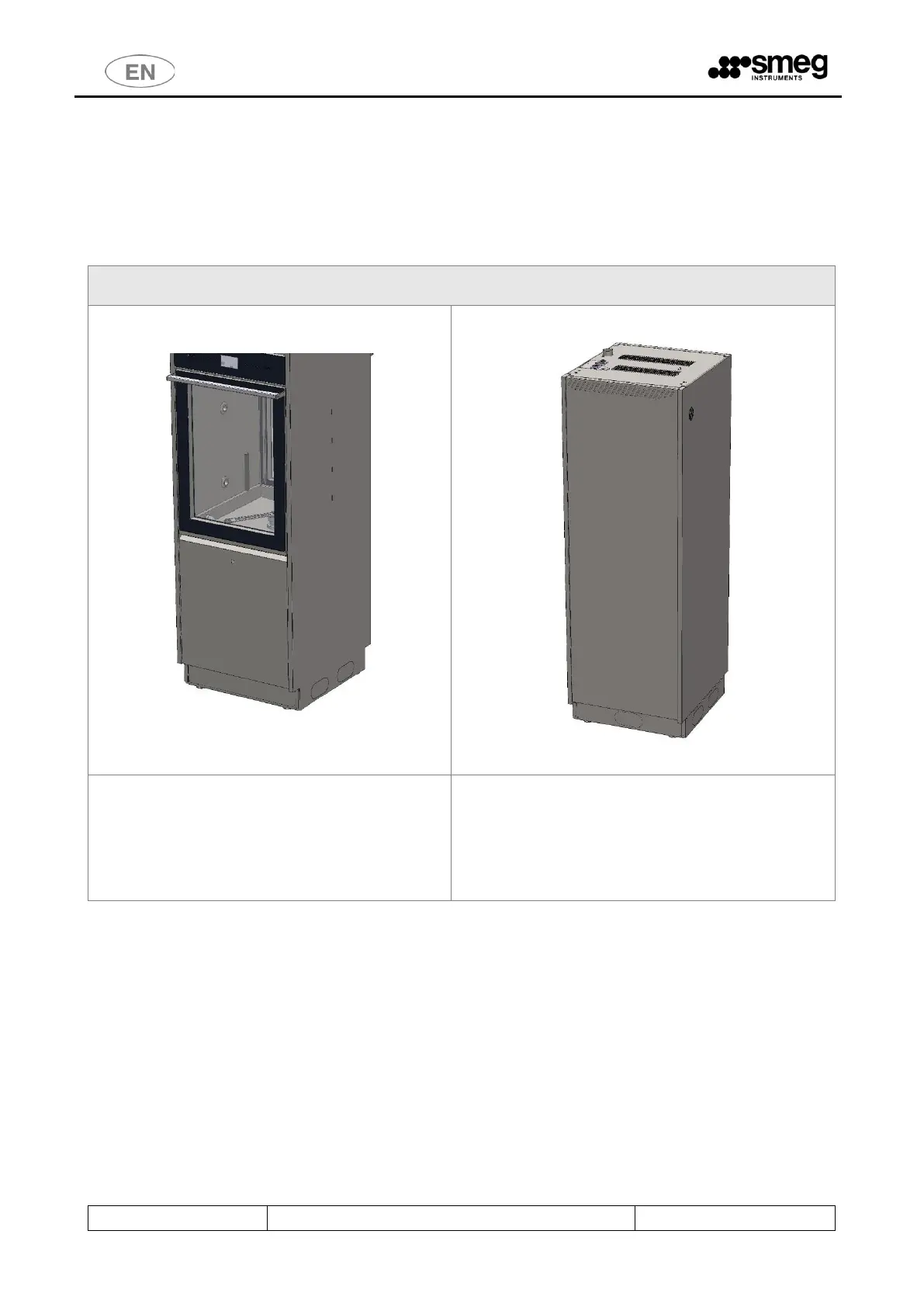

Panel to be removed to access the cable of electricity supply and the water charging hoses.
“Double door”: the lower steel small door on
the “Clean side” must be removed to access the
connections / electrical cable. Unlock the door
with the supplied key, and open door by pulling it
slightly upward.
“Single door” devices - Overview: the metal back
panel must be removed to access the connections /
electrical cable. Loosen the screws placed below and
open the panel by pulling it upward.
