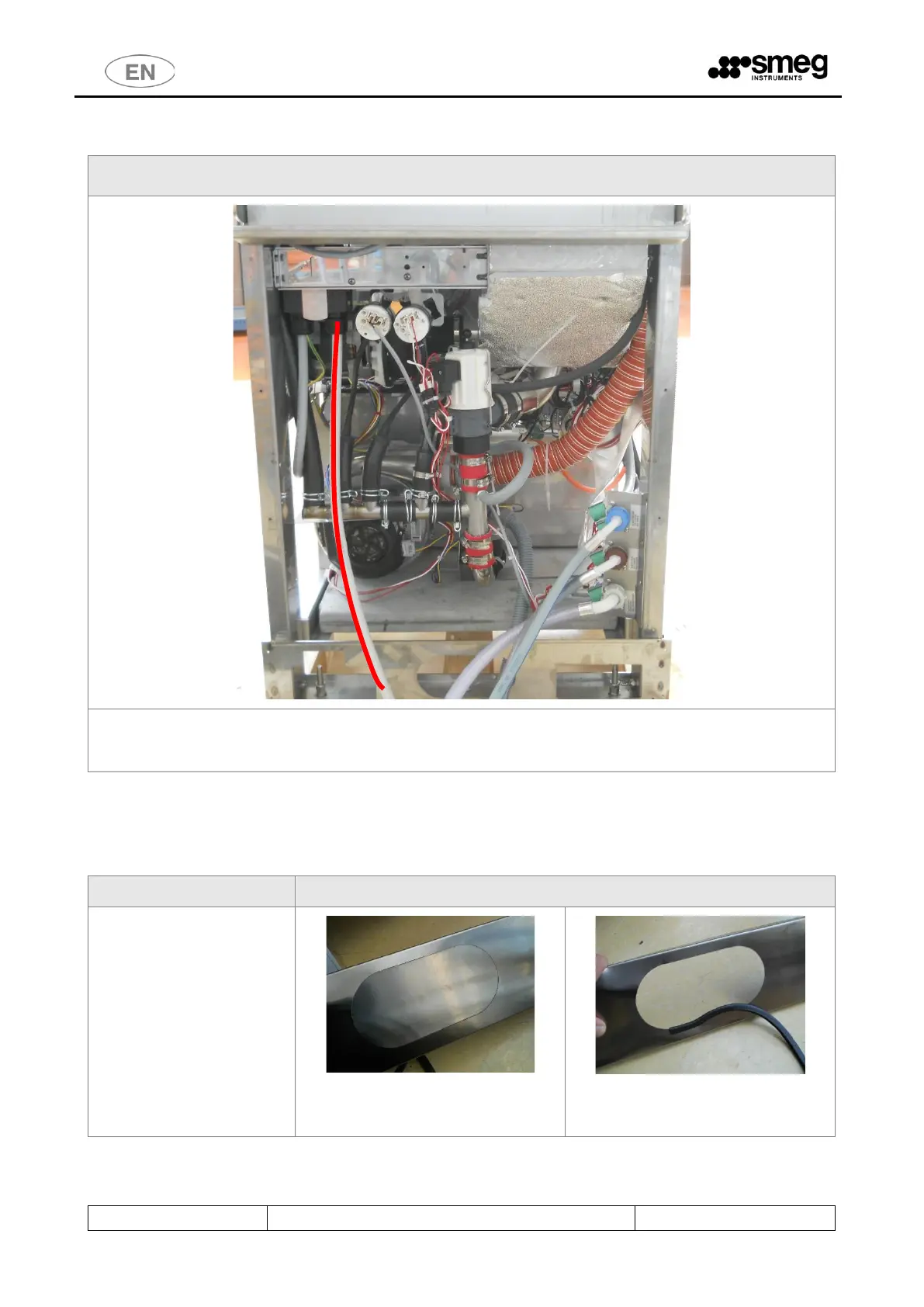

Access to the electrical supply cable and hydraulic connections
Once the back panel is open, the electricity cable is visible on the lower left side.
The technician may access the ¾” threaded solenoid valves on the right side, for the hydraulic
connections, marked according to typology (cold water/hot water/demi water).
Below is the description of the steps and fundamental elements for a correct positioning of the cable and
the water charging hoses.
First steps description
Images
Lower metal panels: “pre-
sheared” for the water
loading pipes, water
discharge pipe and power
cord positioning.
After removing the
preblanking: use
protection rubber on metal
rim to protect the tubes
that can be cut.
