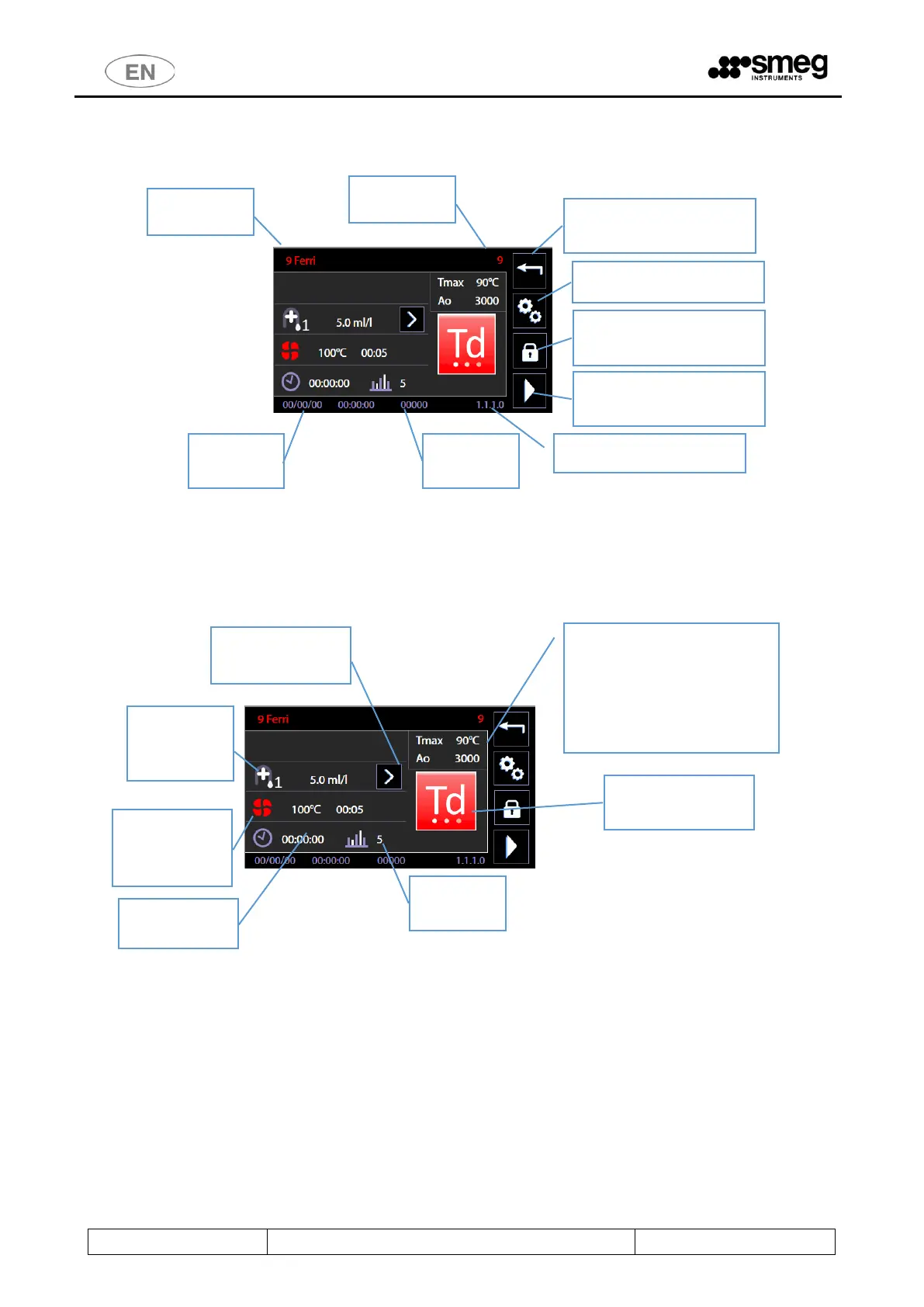

10.4.1 EXTERNAL PERIMETER BUTTONS AND DATA.
10.4.2 “INTERNAL PERIMETER” SCREEN DATA
Detergent pumps
activated by the
cycle and related
dosages
Button to browse the list
of activated pumps and
dosages
Tmax: highest wash temperature of the
cycle
Ao: Ao value which characterizes the
cycle
The values are “0” if they are not
defined for the selected cycle.
N. of cycle
phases
Drying: target
temperature and
duration of the phase
in minutes.
Estimated cycle
duration
Icon that shows the
selected cycle type
PROGRAM NAME
UNIVOCAL ID
PROGRAM
“HOME” to go back to the previous
screen.
“LOCK/UNLOCK” to lock or unlock
the door.
“START” to start the program
ID screen
N. machine
cycles
Date and time
“OPTIONS” to select cycle options
in action.
