DEVICE HEIGHT ADJUSTMENT
If several devices are served by the same multi-purpose trolley, as well as being correctly
levelled they must also be adjusted so that they are at the same height above the ground.
The theoretical heights “H_ref” are provided below for guidance when adjusting.
N.B.: The actual adjustment height may differ from the theoretical value due to levelling
requirements; the fundamental factor is that all devices served by the same multi-purpose
trolley must have the same H_ref value.

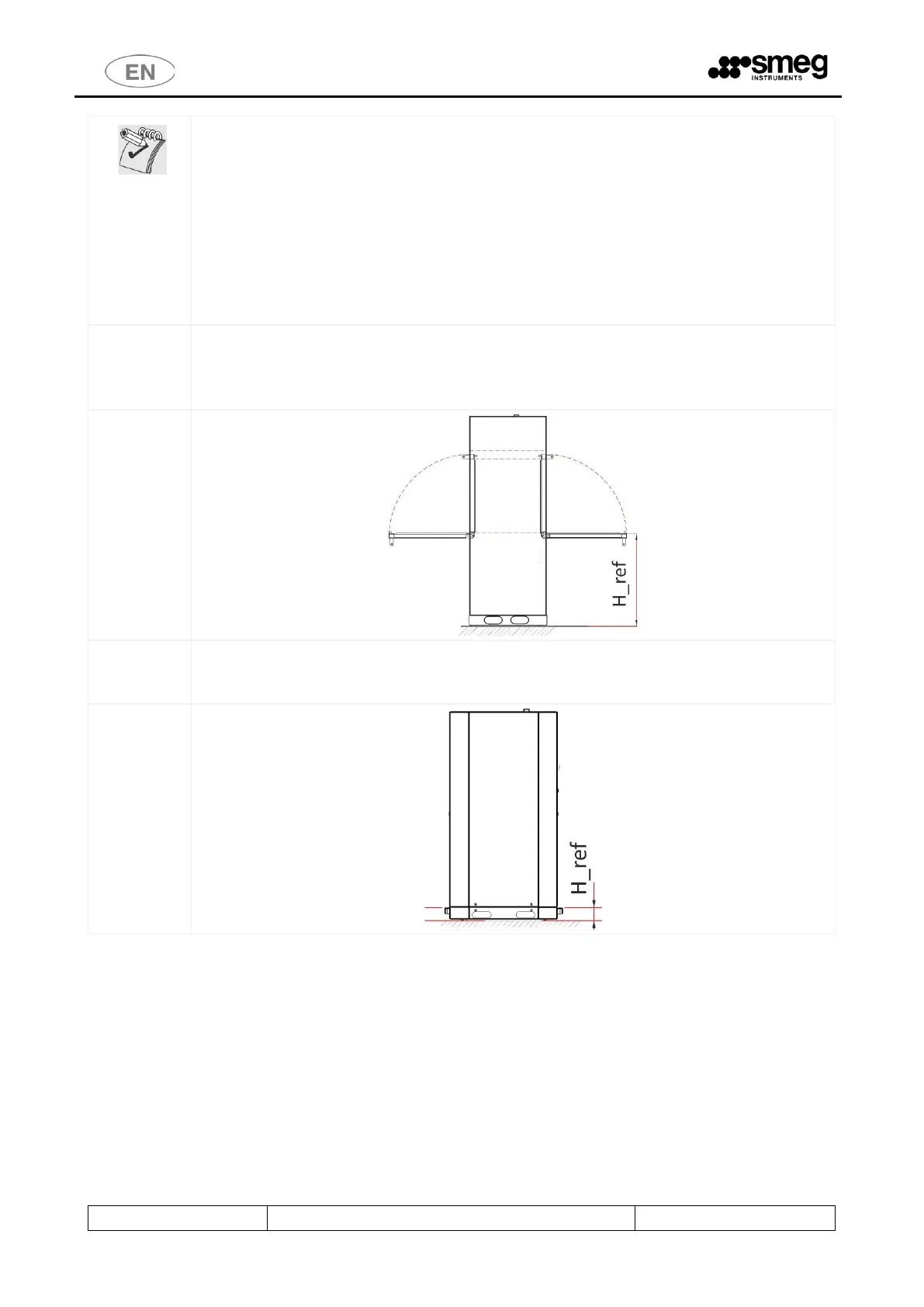

Devices with hinged doors.
Referring to the image below, take the height of the door when open in relation to the
ground as reference.
[Theoretical H_ref = 883 mm]
Devices with sliding doors
Referring to the image below, take the height of the bottom trolley hooks in relation to the
ground as reference [theoretical H_ref = 118 mm].
