28 • Technical Data
_____________________________________________________________________________________________
Indication Description Remarks

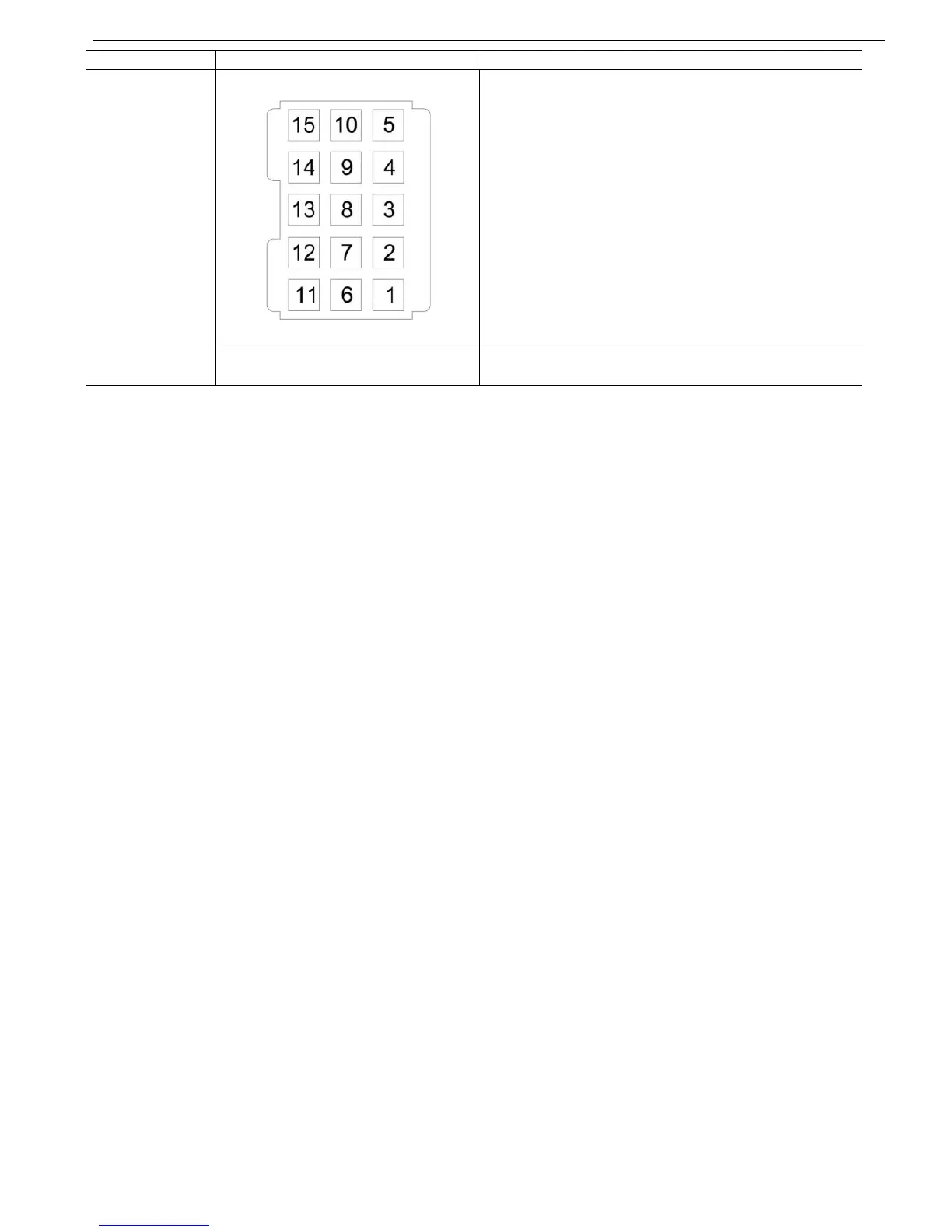

15 pins
connector
Pin 1 – L1 Voltage
Pin 2 – No Connection
Pin 3 – CT – L1(grounded)
Pin 4 – CT – L1
Pin 5 – No Connection
Pin 6 – L2 Voltage
Pin 7 – No Connection
Pin 8 – CT – L2 (grounded)
Pin 9 – CT – L2
Pin 10 – No Connection
Pin 11 – L3 Voltage
Pin 12 – No Connection
Pin 13 – CT – L3 (grounded)
Pin 14 – CT – L3
Pin 15 – No Connection
G Connection to ground For proper operation and for safety reasons the
Control Module must be properly grounded.
