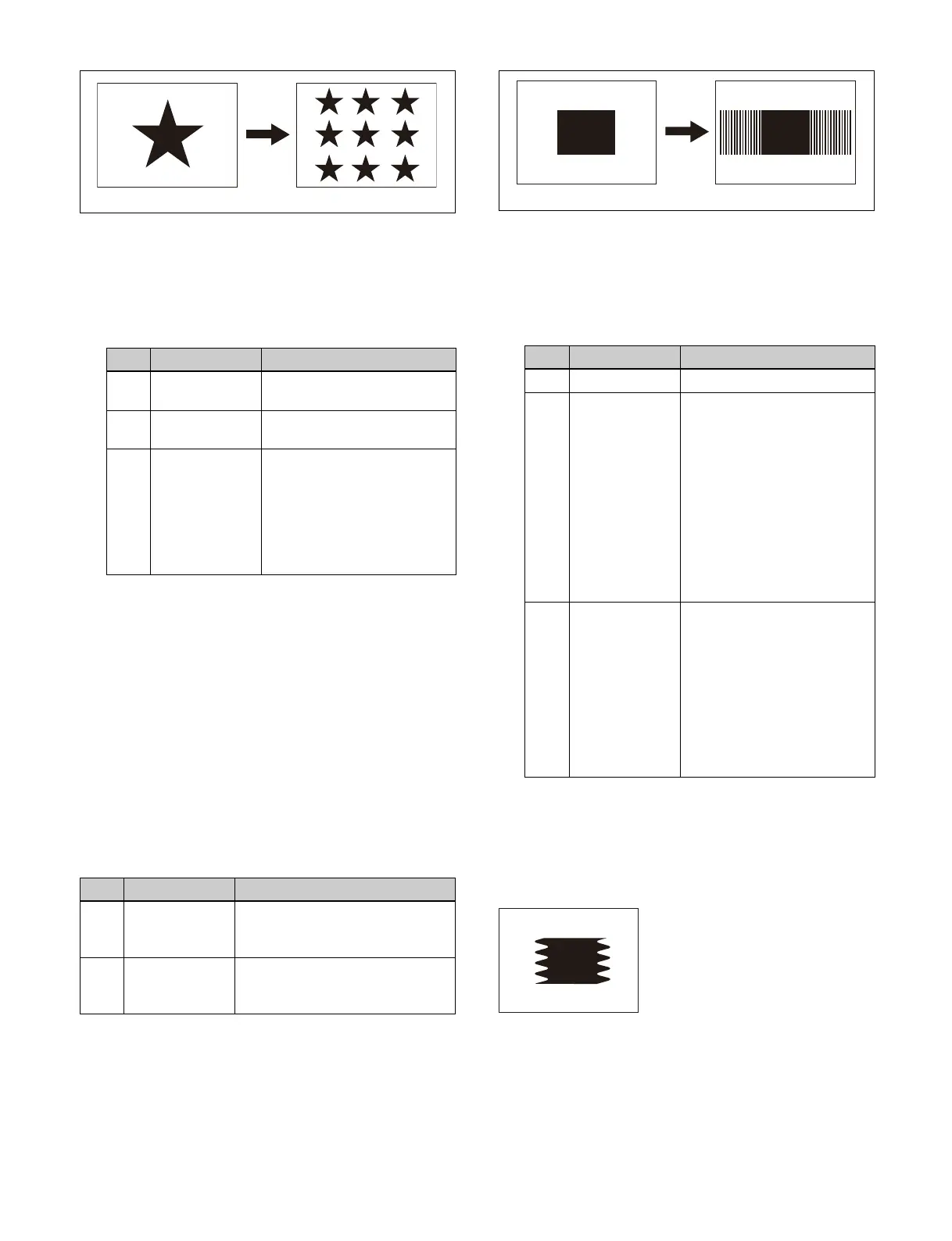

Open the Home > M/E-1 > Bus/Transition > Wipe >
Main Modify menu (11109.35).
2
Set the [Multi] button to the on state and set the
following parameters.
To adjust replicated patterns
In the [Multi Adjust] group in the Home > M/E-1 > Bus/
T
ransition > Wipe > Main Modify menu (11109.35),
select a pattern adjustment method.
H Invert: I
nvert the horizontal orientation of patterns
alternately.
V Invert: I
nvert the vertical orientation of patterns
alternately.
Non Mask:
Ensure a pattern is always visible on the
screen, even when the position function is used to
move the pattern position.
Position:
Move a pattern within the pattern area divisions
set by repetition (Multi).
When the [Position] button is selected, set the following
p
arameters.
Making a wipe pattern like a window blind
(Pairing)
You can use a pattern to create a window blind effect with
slats in the horizontal or vertical direction.
1
Open the Home > M/E-1 > Bus/Transition > Wipe >
Main Modify menu (11109.35).
2
Set the [Pairing] button to the on state and set the
following parameters.
Adding modulation to a wipe pattern
(Modulation)
H (horizontal modulation)
This modulates the pattern in the horizontal direction.
V (vertical modulation)
This modulates the pattern in the vertical direction.
No. Parameter Adjustment
1 H Multi Number of repetitions of
p
attern horizontally
2 V Multi Number of repetitions of
p
attern vertically
3 Shift Pattern layout
• Negative values move
ev
en-numbered columns to
the left.
• Positive values move even-
num
bered columns to the
right.
No. Parameter Adjustment
1 Position H Horizontal position
• Negative values move right.
• Positive values move left.
2 Position V Vertical position
• Negative values move down.
• Positive values move up.
Multi disabled Multi enabled
No. Parameter Adjustment
1 Width Width
2 H Offset Spacing in the horizontal
di
rection
• Negative values move the
ev
en-numbered group to
the left, and the odd-
numbered group move to
the right.
• Positive values move the
ev
en-numbered group to
the right, and the odd-
numbered group move to
the left.
3 V Offset Spacing in the vertical
di
rection
• Negative values move the
ev
en-numbered group up,
and the odd-numbered
group down.
• Positive values move the
ev
en-numbered group
down, and the odd-
numbered group up.
Pairing enabledPairing disabled
