Cross-Point Control Block
The cross-point control block is used to select the signals
to be used in the switcher bank.
The button rows on the cross-point control block are set
to ke
y/AUX bus delegation mode by default.
You can set the mode to key bus mode or free assign
m
ode in the Home > Setup > Panel > Xpt Module >
Operation Mode menu (19104.31).
For details, see “Chapter 4 Selecting Signals”
(page 81).

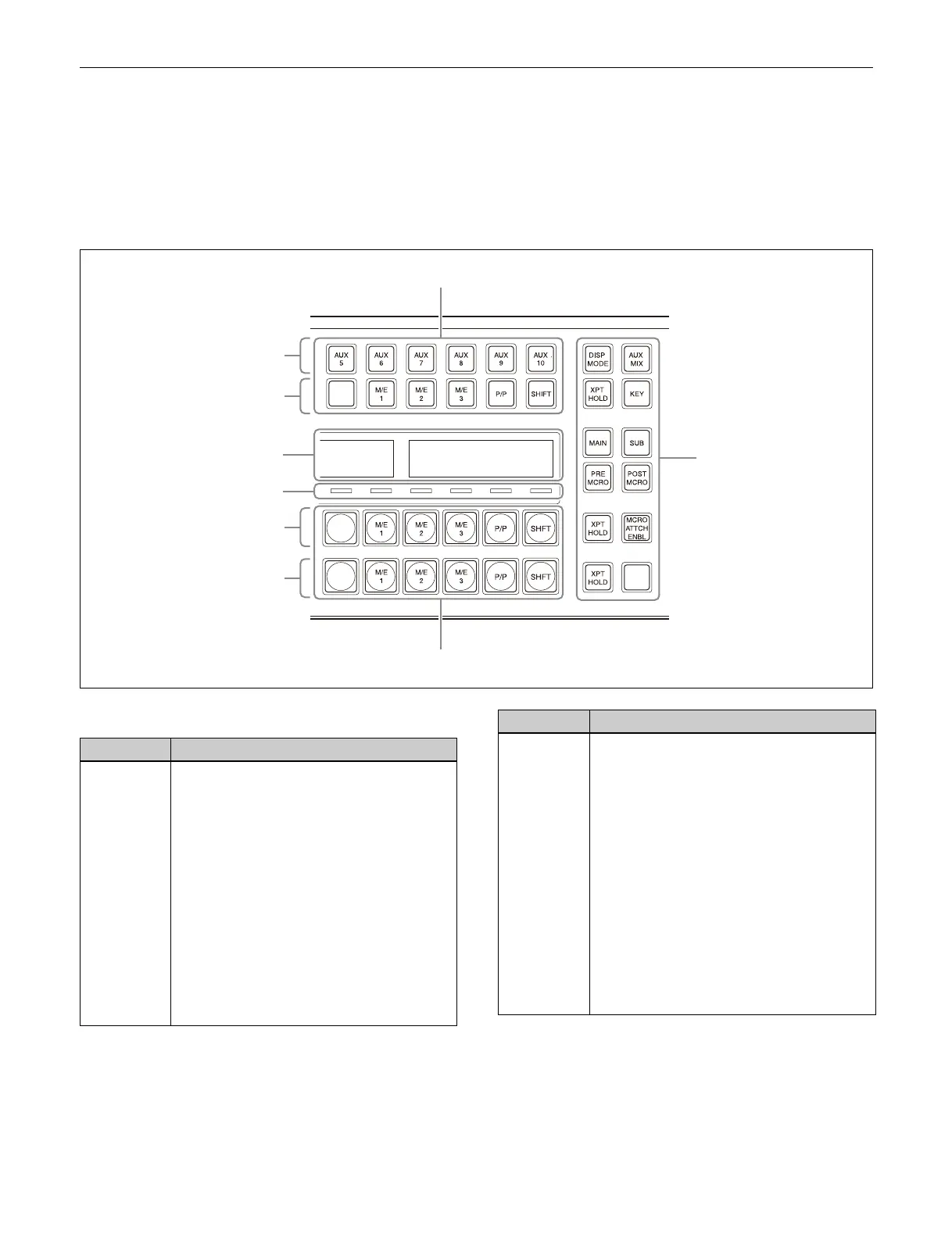

a Bu
tton rows
a
a
d
b
c
1st row
2nd row
3rd row
4th row
Name Description
1st row • Selects the bus or utility/shotbox bank
w
hen in key/AUX bus delegation mode.
• Selects the bus signal assigned by the
delegation buttons in the function button
section when in key bus mode or free
assign mode.
Selects the utility function when a utility/
s
hotbox bank is assigned using the
delegation buttons in the function button
section.
• Selects the DME external video bus signal
w
hen in utility bus mode.
• Selects the background A bus signal
(shifted state) when in dual background
bus mode.
2nd row • Selects the bus signal or utility function
assigned by the 1st row delegation buttons
when in key/AUX bus delegation mode.
• Selects the bus signal assigned by the
de
legation buttons in the function button
section when in key bus mode or free
assign mode.
Selects the utility function when a utility/
shotbox bank is assigned using the
delegation buttons in the function button
section.
• Selects the DME utility 1 bus or 2 bus
si
gnal when in utility bus mode.
• Selects the background B bus signal
(shifted state) when in dual background
bus mode.
