Transition Control Block
The transition control block is used to execute transitions.
It supports common transitions and independent key
tra
nsitions.
For details, see “Chapter 5 Transitions” (page 94).
a Tran
sition execution section
b Tran
sition settings section (assignable buttons)
You can assign functions, such as selections and settings,
f
or transitions in the Home > Setup > Panel > Module >
Button Assign menu (19104.21).
For details about assigning buttons, see “Assigning
Control Panel Buttons” (page 402).

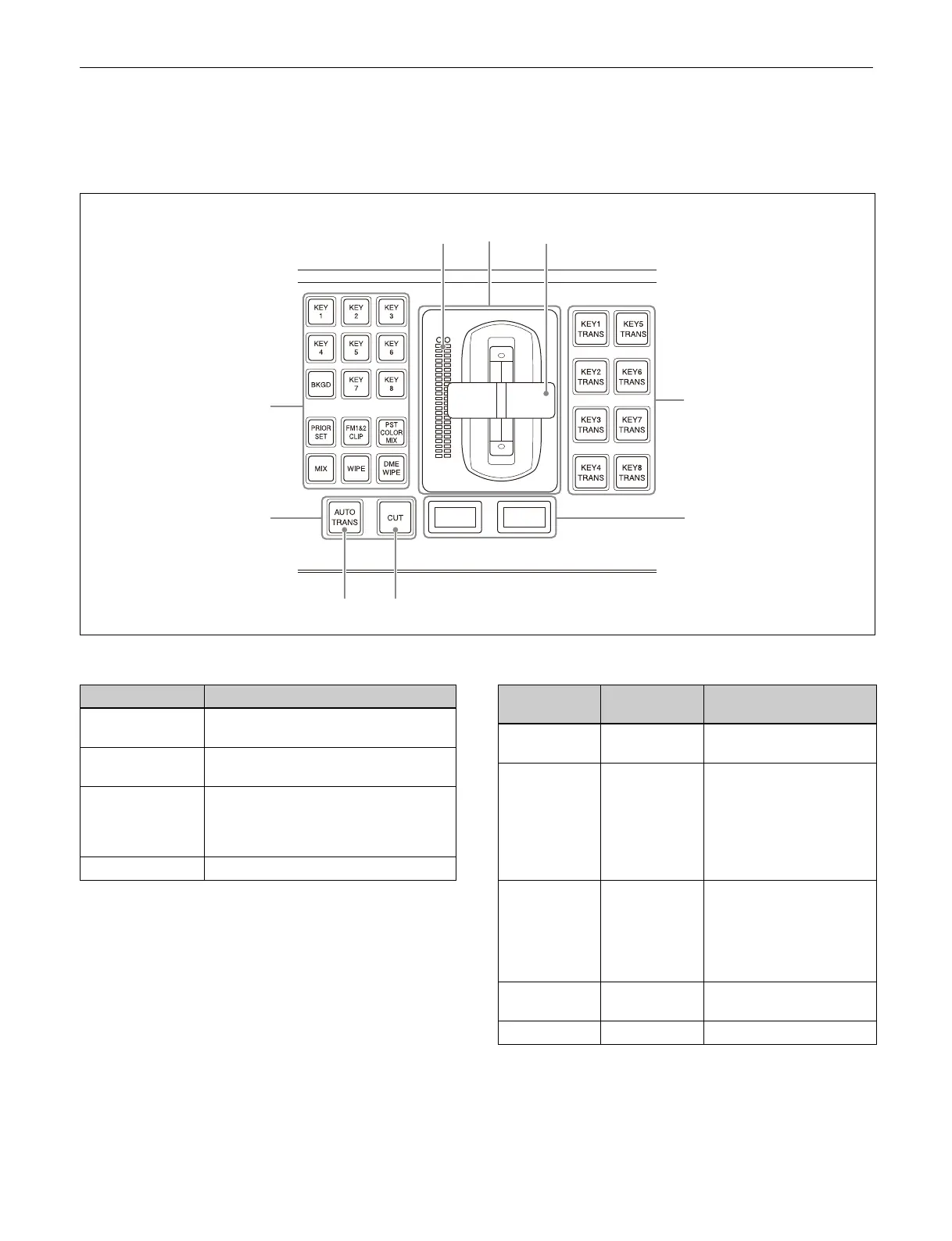

Next transition selection buttons
a
b
a
d
c
Fader leverTransition indicator
AUTO TRANS button CUT button
Name Description
Fader lever Move this up or down to execute a
tr
ansition.
Transition
in
dicator
Displays the transition progress using
LEDs.
[AUTO TRANS]
bu
tton
Executes an auto transition with the set
transition rate and transition type.
During the transition, the button is lit
am
ber.
[CUT] button Executes an immediate transition.
Function
name
Button name Description
Background BKGD Switches the background
for a
next transition.
Key 1 to Key 8 KEY1 to KEY8 Inserts or removes the
se
lected key for a next
transition.
The key is inserted if a key
is
currently not inserted,
or removes the key if a
key is currently inserted.
Key Priority KEY PRIOR Changes the key priority
for a
next transition.
When the [PRIOR SET]
but
ton is lit, the setting for
key priority after the
transition is used.
All ALL Selects multiple next
tran
sitions simultaneously.
Priority Set PRIOR SET Sets the key priority.
