Image rotation in target space
Rotate image (Spin)
In spin mode, the image rotates around the X-axis,
Y-axis, or Z-axis.
If an image does not rotate correctly around the selected
a
xis in rotation mode, you can combine it with spin mode
to create an effect that rotates the image around the
selected axis.
The movement of an image differs depending on whether
sou
rce space or target space is selected. The rotation of an
image in source space/target space is the same as in
rotation mode.
Move rotation axis (Axis Location)
Moves an axis of rotation of an image in source space.
Scale image (Location Size)
Changes the size of the whole image.
Shrinking and magnifying an image in source space is
done
in three-dimensional space, so magnifying an image
enhances perspective.
Shrinking and magnifying an image in target space is a
conv
ersion to a two-dimensional image for display on a
monitor screen, so shrinking and magnifying does not
change the shape of the image.
Scaling in source space
Scaling in target space
Change image aspect ratio (Aspect)
In source space, changes the aspect ratio in the X-axis
direction and Y-axis direction, either independently or
simultaneously.
Change viewpoint position (Perspective)
In target space, changes the perspective of an image by
changing the virtual viewpoint, without changing the
position of the image.

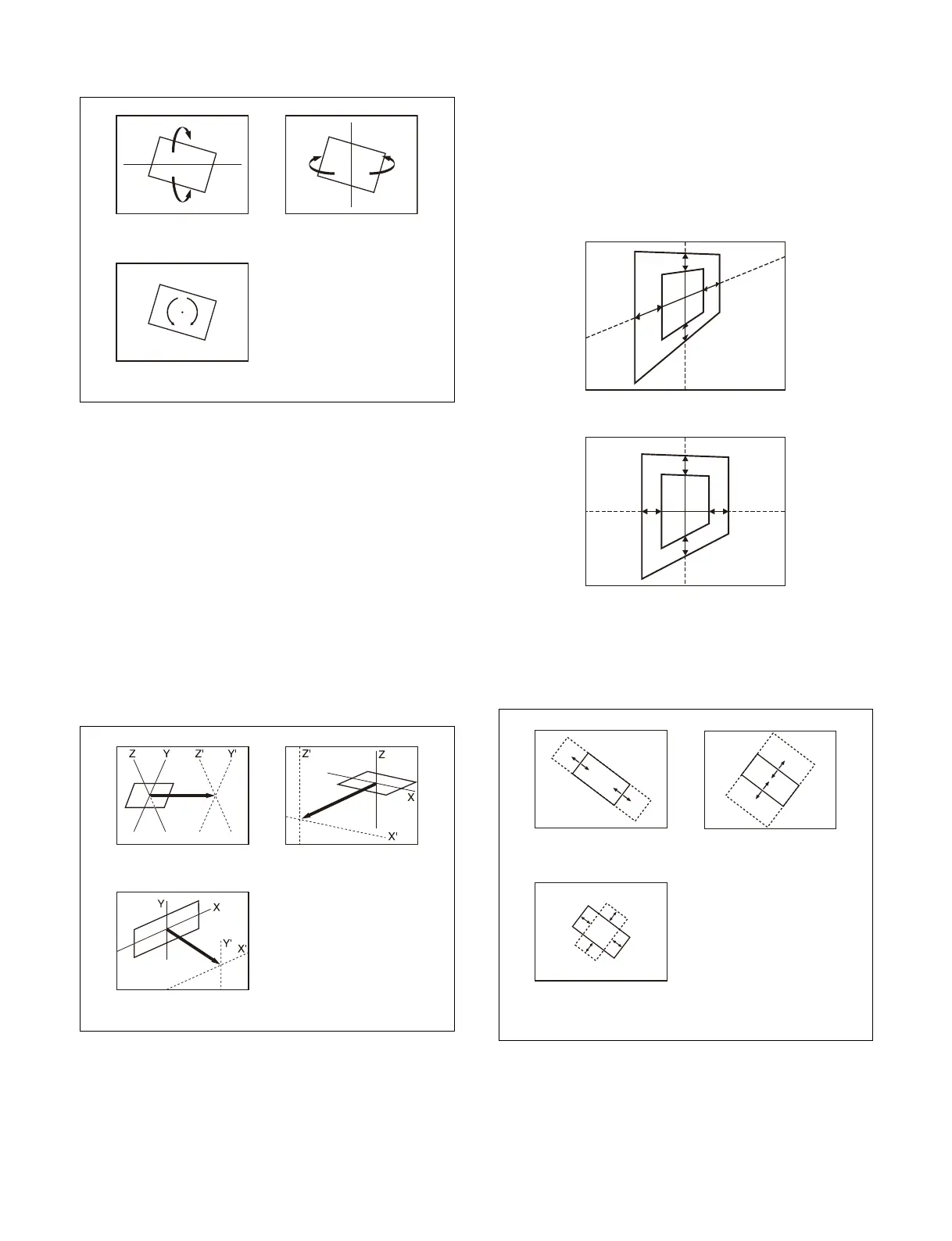

Rotation around the
Y-axis
Rotation around the
X-axis
Rotation around the
Z-axis
Movement in X-axis
direction
Movement in Y-axis
direction
Movement in Z-axis
direction
Change aspect ratio in
X-axis direction
Change aspect ratio in
Y-axis direction
Simultaneous change aspect
ratio in X-axis direction and
Y-axis direction
