ICP-X7000 AUX bus control block (AUX bus operation mode)
The number of buttons in a button row varies depending
on
the modules used.
• MKS-X7017: 36 buttons
• MKS-X7018: 28 buttons
• MKS-X7019: 20 buttons

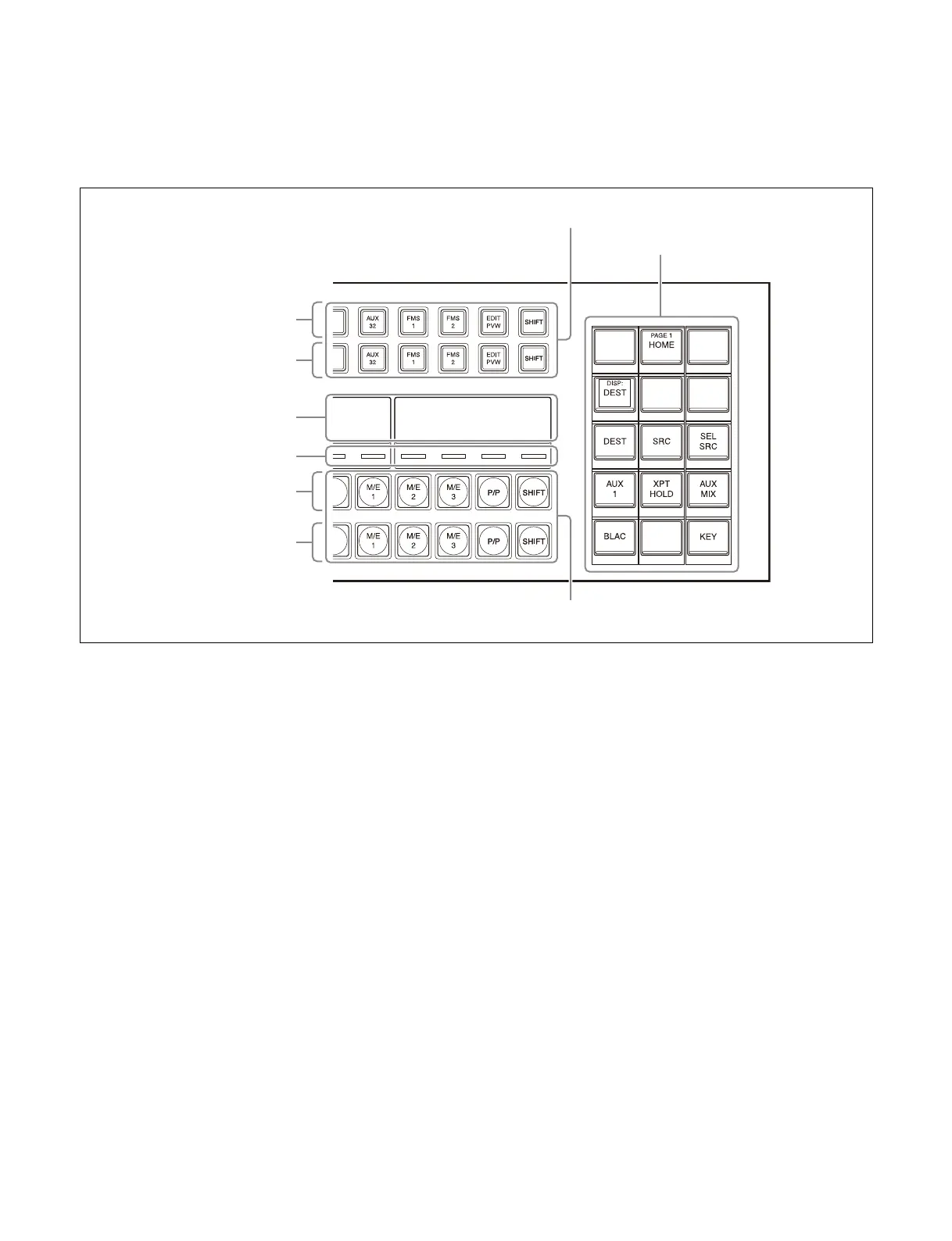

The illustration below shows a 36-button AUX bus
cont
rol block (AUX bus operation mode).
Cross-point buttons
The button numbers are labeled on the cross-point buttons
of the cross-point control block/AUX bus control block.
Signals are assigned for each button number and you
sel
ect signals by pressing the buttons.
For details about assigning signals, see “Creating a
Cross-Point Assign Table” (page 383).
Box internal signals
Each box has the following as internal signals.
• Switcher bank output signals
• DME monitor
• Frame memory
• Clip player
• Color backgrounds
For details about selecting the internal signals of
i
ndividual boxes using cross-point buttons, see “Setting a
Bus” (page 443) and “Setting Re-Entry Signals”
(page 398).
Shift button
A shift button is assigned to the rightmost button of each
cross-point button row.
You use the shift button to switch between the button
numbe
r in the shifted state and the button number in the
unshifted state in the button row.
The shift button has two operation modes.
Hold mode: Mode where the shifted state is selected
wh
ile the button is pressed
Lock mode: Mode where every time the button is pressed,
it
toggles between the shifted state and unshifted state
You can also disable the shift button function.
For details, see “Setting the Shift Button” (page 383).
Delegation button row shift button
In an AUX bus control block
, the shift button in
delegation button rows (1st row/2nd row) can also be
used.
A shift button is assigned to the rightmost button and can
be set
to hold mode or lock mode.
For details, see “Setting the operation mode of the shift
button” (page 409).
Delegation button rows
Display
Cross-point indicators
Cross-point pad
1st row
2nd row
3rd row
4th row
Cross-point button rows
