Chapter 2 Menus and Control Panel
86
Names and Functions of Parts of the Control Panel
a Mode selection buttons
EFF (effect): Press to save or recall an
effect.
SNAPSHOT: Press to save or recall a
snapshot.
SHOTBOX: Press to save or recall a
shotbox.
MCRO (macro): Press to save, recall or
edit a macro.
TRANS RATE (transition rate): Press to
set the transition rate.
Hold down this button, and press one of
the key delegation buttons [KEY1] to
[KEY4] in the transition control block
to set an independent key transition
rate.
b Region selection buttons
These select the functional block (“region”)
of the control panel to which operations
apply.
You can select more than one region at the
same time.
The first button you press is taken as the
reference region, and lights green, while the
next pressed button lights amber.
With the exception of the [MASTER] and
[ALL] buttons, you can change the region
assignment to the buttons as desired in the
Setup menu.
MASTR: Press this, turning it on, to save
region information in a master
snapshot register or master timeline
register, or to recall such region
information.
ALL: Select all regions. When any region
is already selected, pressing this button
makes all regions unselected.
M/E 1 to M/E 3, P/P: Select the
corresponding regions, M/E-1, M/E-2,
M/E-3, and PGM/PST.
USER 1 to USER 8: Select a User region.

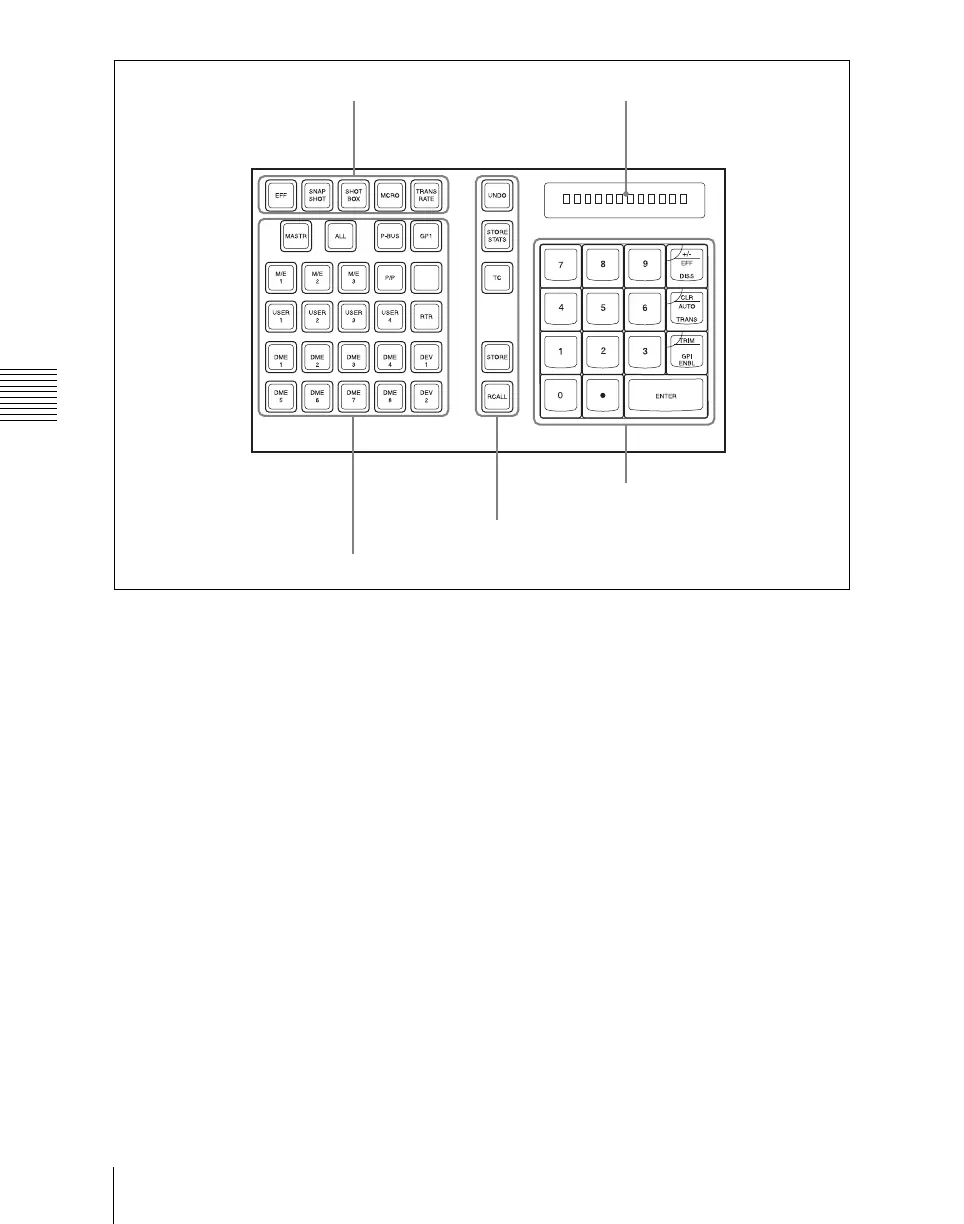

1 Mode selection buttons
5 Display
2 Region selection buttons
3 Function selection buttons
4 Numeric keypad
