Squid Ink CoPilot 500 - Print Direction Settings

82 Software Interface
2005995 Rev O – 210712

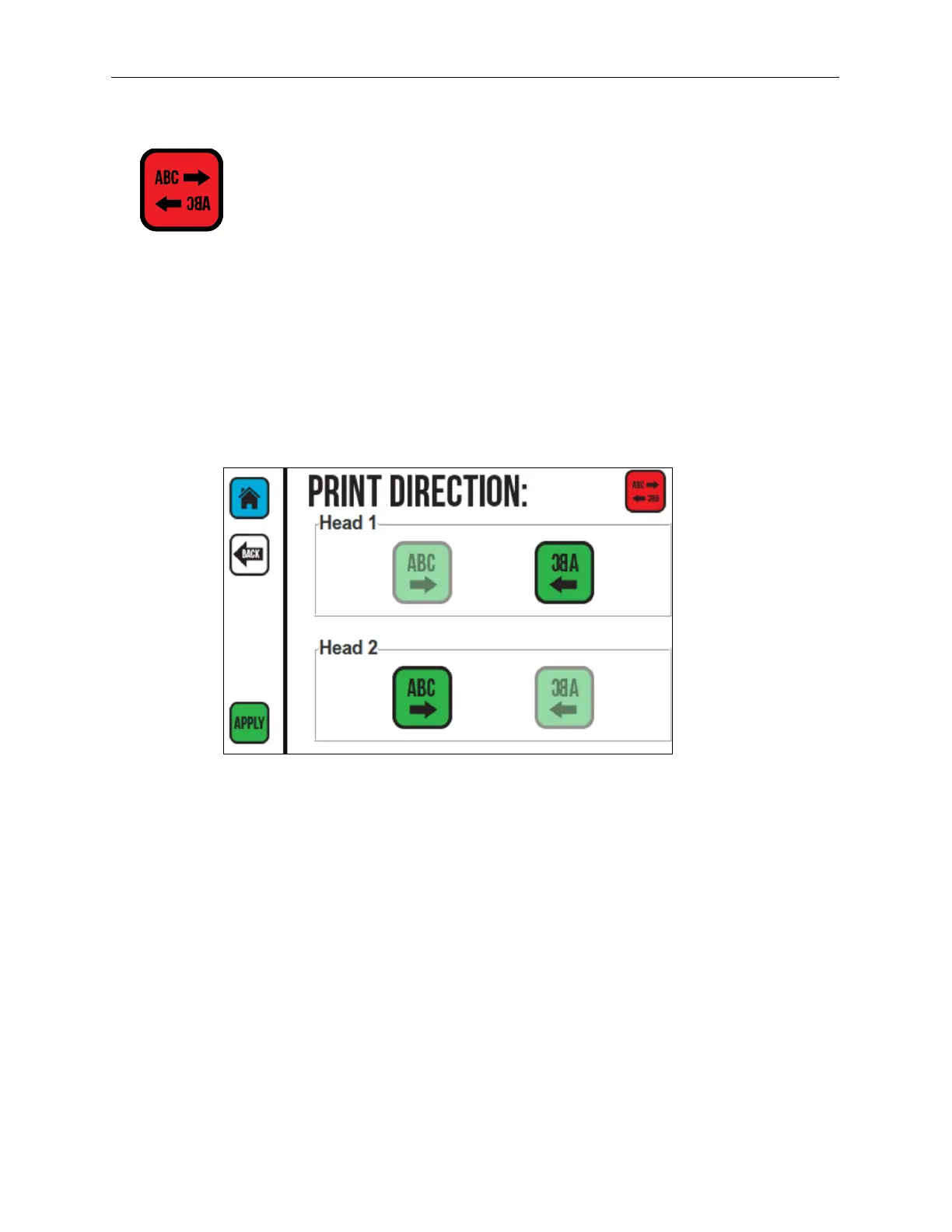

Print Direction
Print Direction is the direction of the Conveyor flow relative to the position of the Printer
when viewed from behind the Printhead.
To Set the Print Direction for the Selected Printhead:
1. Select the button that corresponds to the direction of the Conveyor flow.
2. Select APPLY to set the print direction. Select BACK to return to the previous
screen.
Print Direction
