Mounting Printhead(s)
Printhead mounting varies by situation. This section lays out some general principles for
Printhead mounting. A Mounting Bracket is necessary when the Printhead is going to be
printing in any direction other than straight ahead.
If printing straight ahead, the Printhead can be attached directly to a Floor Stand or
Conveyor Mount (see “Replaceable Parts” on page 129).
VIDEO: Mounting the Printhead
To see a video of this procedure, click this link:
https://youtu.be/zSjTfhCmU8M?t=251
Or scan the QR code at right using the camera app on your mobile
device.
View Time: 4:11 – 6:10

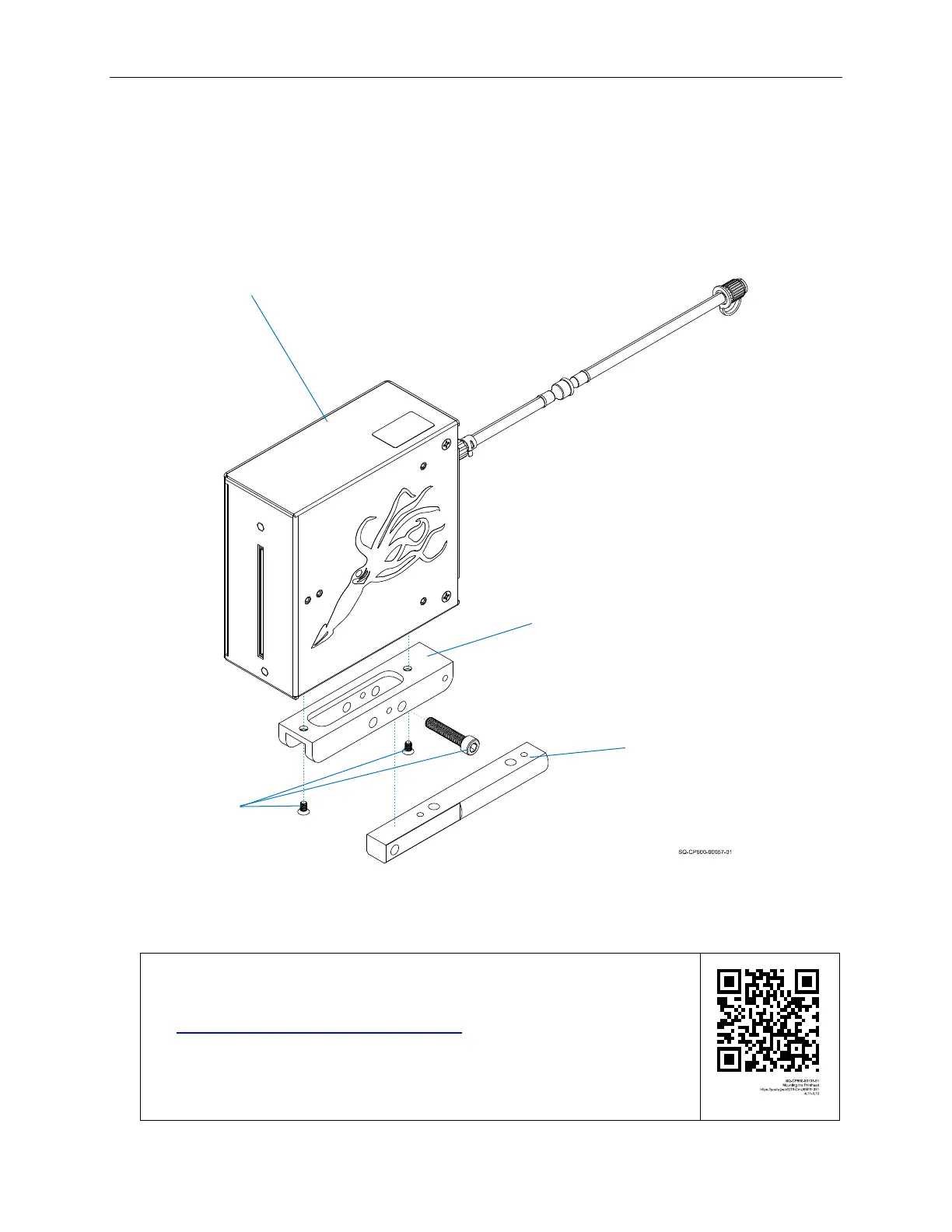

Mounting
Bracket
Printhead
Mounting
Screws
Mounting
Arm
Attaching a Mounting Bracket to the Printhead
