Squid Ink CoPilot 500 - Page 85

Software Interface 85
2005995 Rev O – 210712
SquidConnect provides non-barcode electronic information regarding the operational status
of a CoPilot printer. The outputs can be used to enable or disable the Printhead, or notify the
user or PLC when the printer is ready or actively printing, when the ink supply is low or
almost empty.

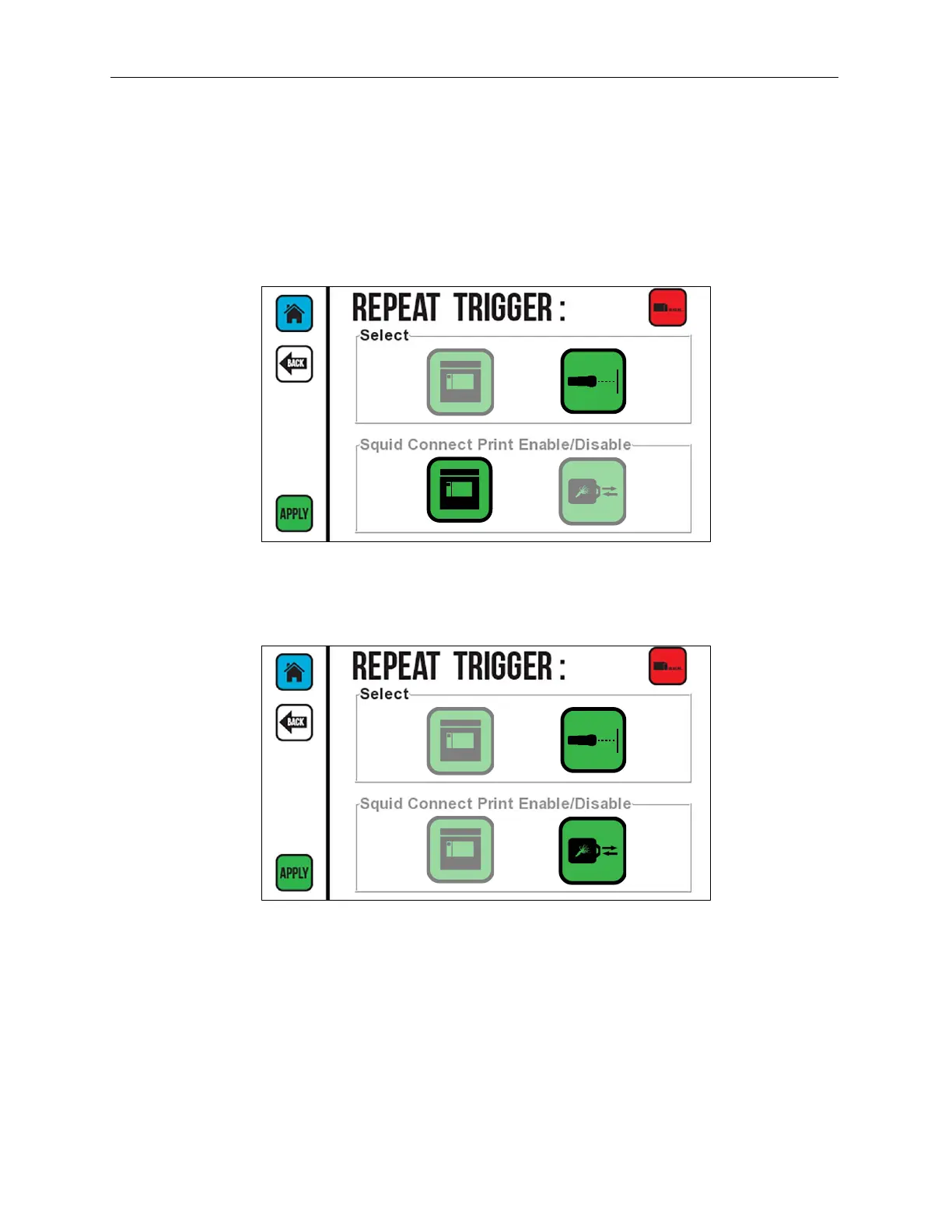

SquidConnect Inactive
SquidConnect Dongle Active
