Measurement
Units
3Dfilescontainanobject'sproportions,butnotitsunitsofmeasure.
Therefore,makesuretocorrectlyselecteithermillimetersorincheswhen
insertinganobject.Otherwise,thesizeoftheobjectonthebuildtraywillbe
eithermuchtoolargeormuchtoosmall.
Tosetthemeasurementunitswheninsertinganobject:
➢ IntheInsertdialogbox,Unitsfield,selectMillimeter orInch:

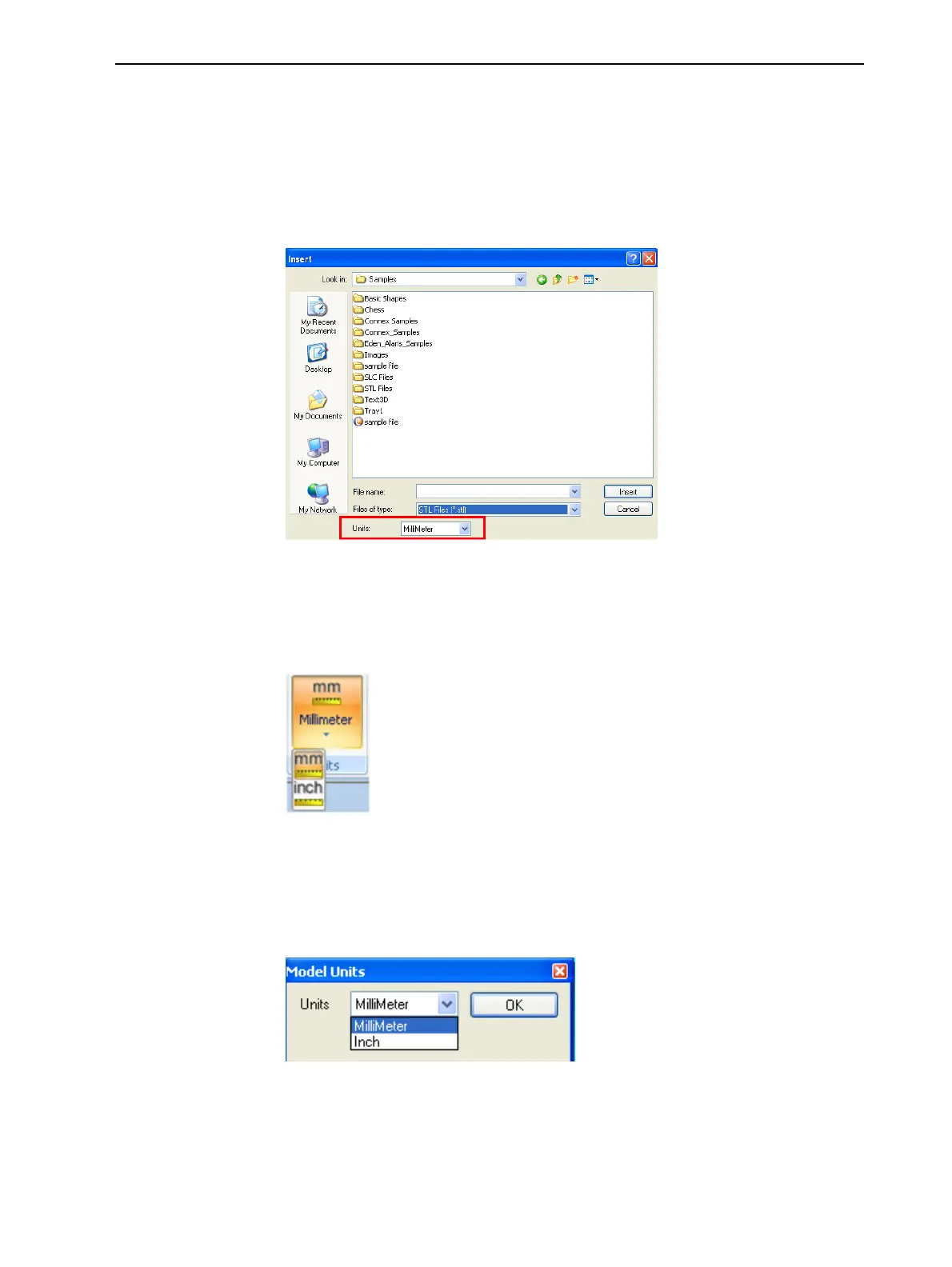

Figure5-38UnitsfieldintheInsertdialogbox
TochangemeasurementunitsforaselectedobjectfromtheModel Settings
ribbon:
1. OpentheUnitsflyouttoolbar.
Figure5-39Unitsflyouttoolbar
2. Selectthemeasurementunitsdesired.
Tochangemeasurementunitsforaselectedobjectfromthestandardtoolbar:
1. FromtheObjectmenu,selectChangeUnits.
Figure5-40Model Unitsdialogbox
2. IntheModel Units dialogbox,changethesettingandclickOK.
