Display Options
Viewing
Objects
FromtheViewmenu,youcanchangethewayobjectsaredisplayed.The
defaultmethodfordisplayingmodelsonthebuildtrayisassolid(“shaded”)
objects.

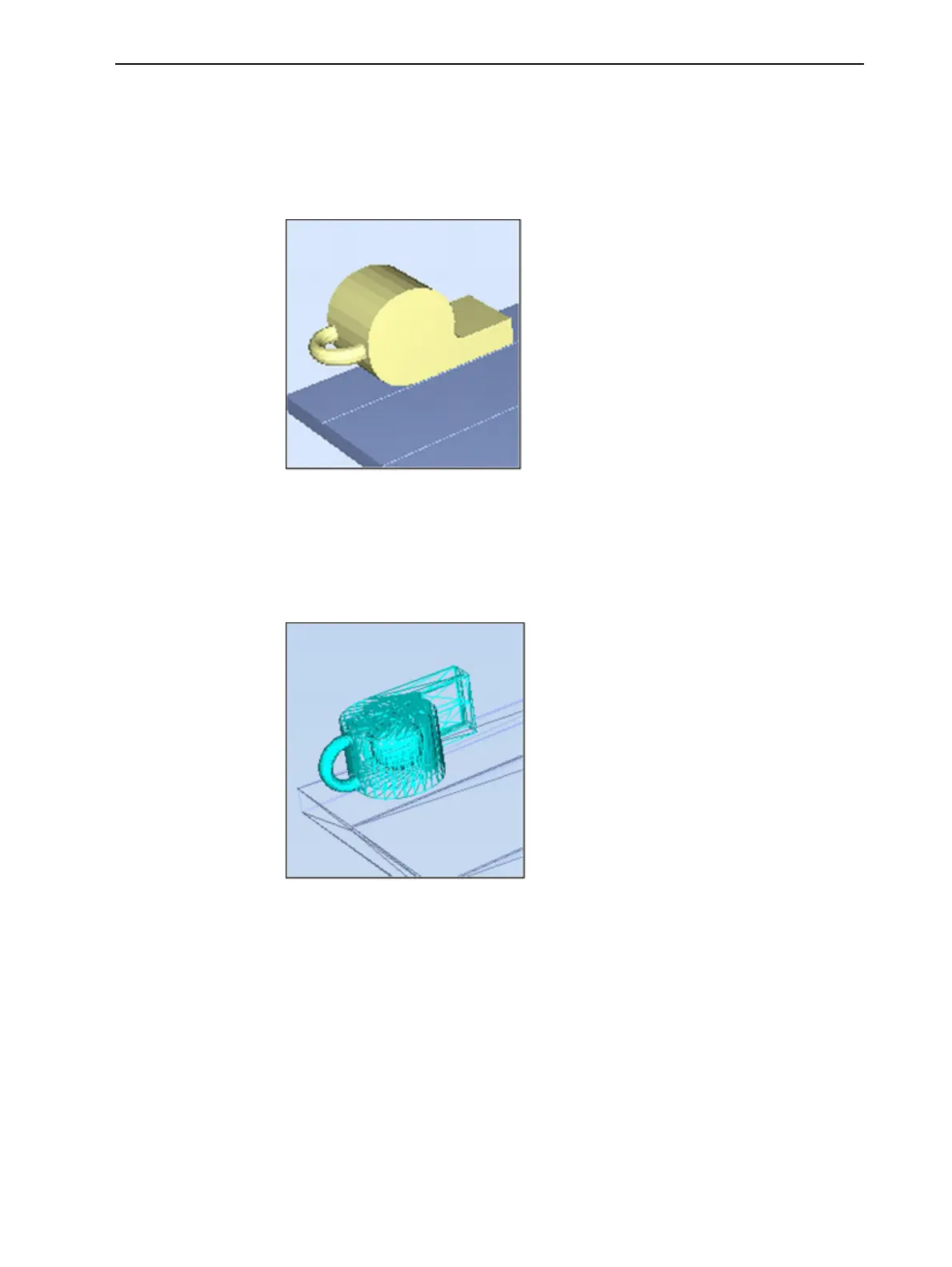

Figure5-49TrayandmodeldisplayedinShadedview
TheotherdisplayoptionsareWireFrameandPoints.
TodisplaythebuildtrayinWireFrameview:
➢ FromtheViewmenu,selectWireFrame.
Figure5-50TrayandmodeldisplayedinWireFrameview
Toreverttotheshadedview:
➢ FromtheViewmenu,selectShaded.
