Stratasys Objet1000 Plus - Assigning Properties to Hidden Objects

Objet1000 Plus User Guide 5 Using Objet Studio
DOC-06810 Rev.B 5-10
Assigning
Properties to
Hidden Objects
Toenableyoutoassignmaterialsandotherpropertiestopartsofobjectsthat
arehiddenfromviewonthebuildtraydisplay,youcantemporarilyturnoff
thedisplayofsomeobjects.
Topreventthedisplayofobjects:
1. Right-clickanobject,eitheronthebuildtrayorinthemodeltree.
2. Fromthemenuthatopens,selectoneofthefollowingoptions—
❒ Hide,tocausetheselectedobjecttodisappear.
❒ HideOthers,tocauseallotherobjectsonthebuildtraytodisappear,so
thatonlytheselectedobjectisdisplayed.
Alternately,youcanclearthecheckboxnexttothenameoftheobject
inthemodeltreetocausethatobjecttodisappear.


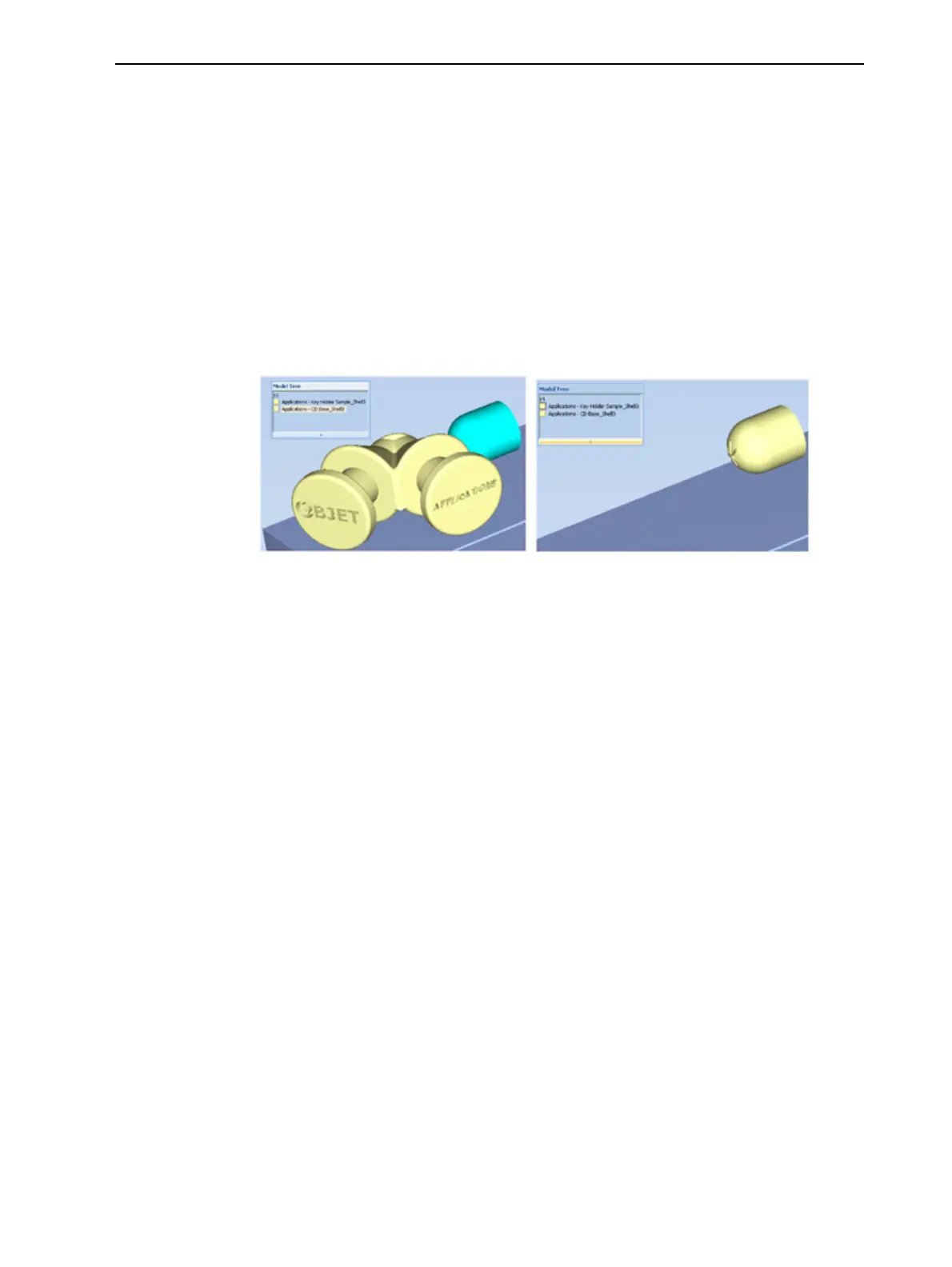

Figure5-9 Left:Allobjectsdisplayed;Right:Displaywithobjecthidden
