Objet1000 Plus User Guide 5 Using Objet Studio
DOC-06810 Rev.B 5-43
Todisplayobjectsasboxes,showingtheirmaximumdimensionsinsteadoftheir
shape:
➢ FromtheViewmenu,selectDisplayBoundingBox.

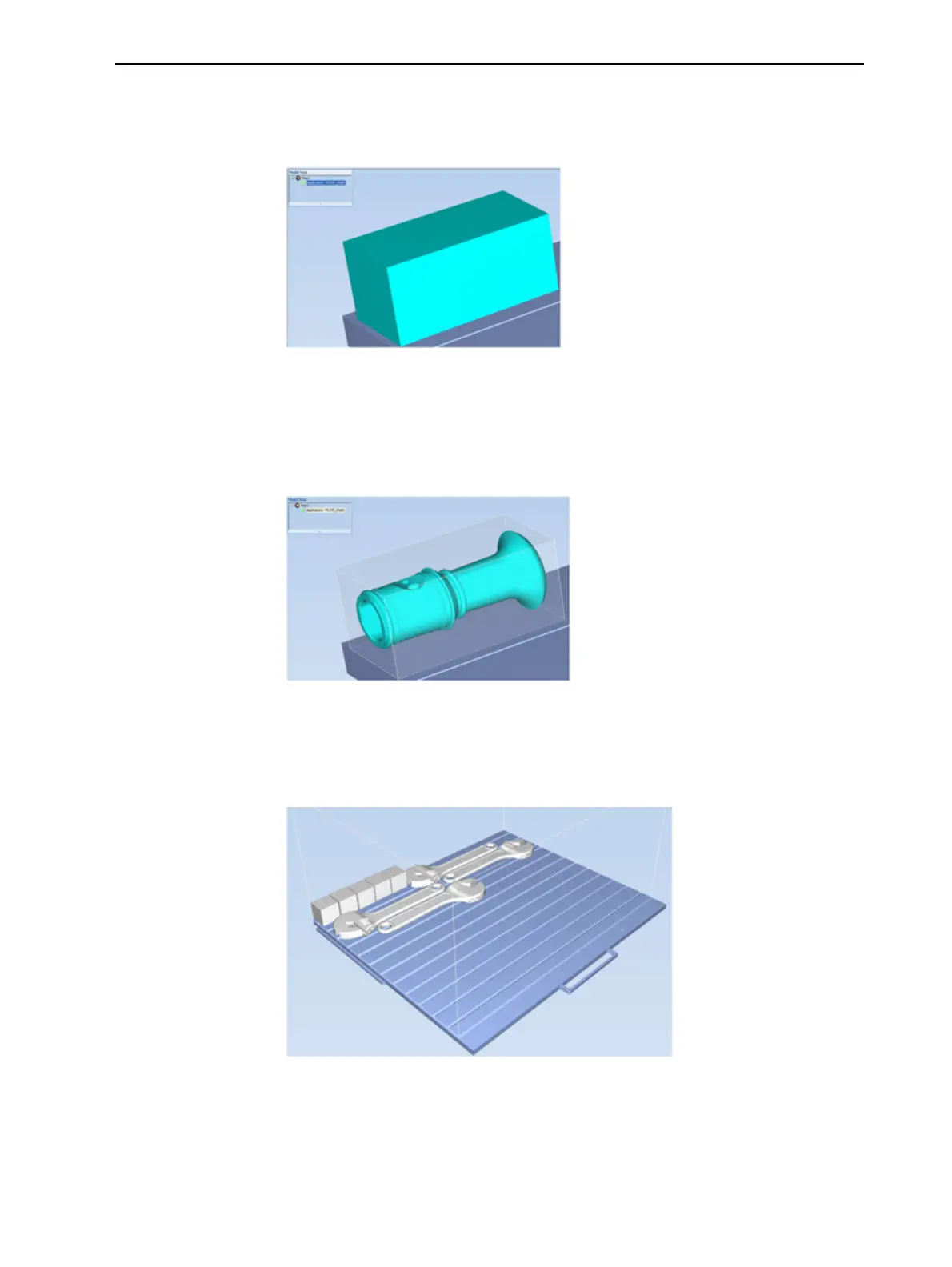

Figure5-51Modeldisplayedwithboundingbox
Todisplaytheareaaroundobjectsneededforsupportmaterial(toproducea
mattefinish):
➢ FromtheViewmenu,selectDisplayThickeningBox.
Figure5-52Modeldisplayedwiththickeningbox
Todisplaythemaximumbuildheight:
➢ FromtheViewmenu,selectDisplayTray3DBox.
Figure5-53Tray3DBox
Todisplayobjectswithoutthebuildtray:
➢ FromtheViewmenu,clear(de-select)theDisplay Trayoption.
