1D-23 Power Unit Mechanical:

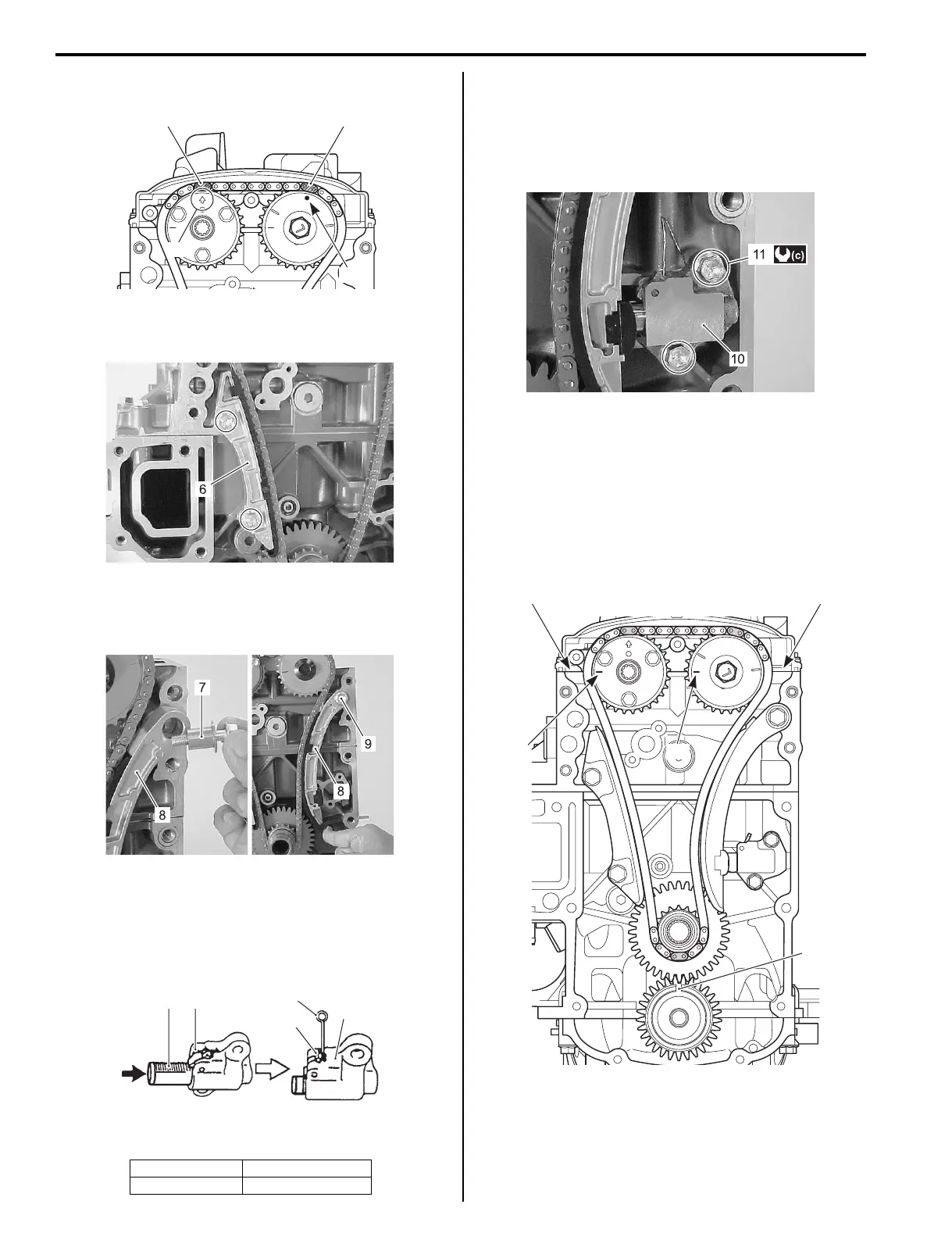

8) Install timing chain guide (6), then tighten bolt
securely.
9) Insert the spacer (7) into the chain tensioner (8).
Install chain tensioner, then tighten bolt (9) securely.
Apply engine oil to chain tensioner.
10) With latch of tensioner adjuster (10) pushed in and
plunger pushed back into body, insert stopper into
latch and body.
After inserting stopper, check to make sure that
plunger will not come out.
11) Install timing chain tensioner adjuster (10), then
tighten bolts (11) to specified torque.
Tightening torque
Tensioner adjuster bolt (c): 11 N·m (1.1 kgf-m,
8.0 lbf-ft)
12) Apply engine oil to timing chain.
13) Remove the stopper from tensioner adjuster to
release plunger.
14) Turn crankshaft in normal running direction two
complete turns and check that crankshaft match
mark “A” points toward the top and at the same time,
engraved lines “C” and “D” on sprockets aligns with
cylinder head cover mating face “G”.
15) Install oil pump.
Refer to “Oil Pump Removal and Installation” in
Section 1E (Page 1E-3).
1. Plunger 3. Body
2. Latch 4. Stopper
“I” “I”
“E”
“F”
I9J011140025-01
I9J011140177-01
I9J011140178-01
1
2
2
4
3
I9J011140179-02
I9J011140180-01
“D”
“A”
“C”
“G”“G”
I9J011140008-04
