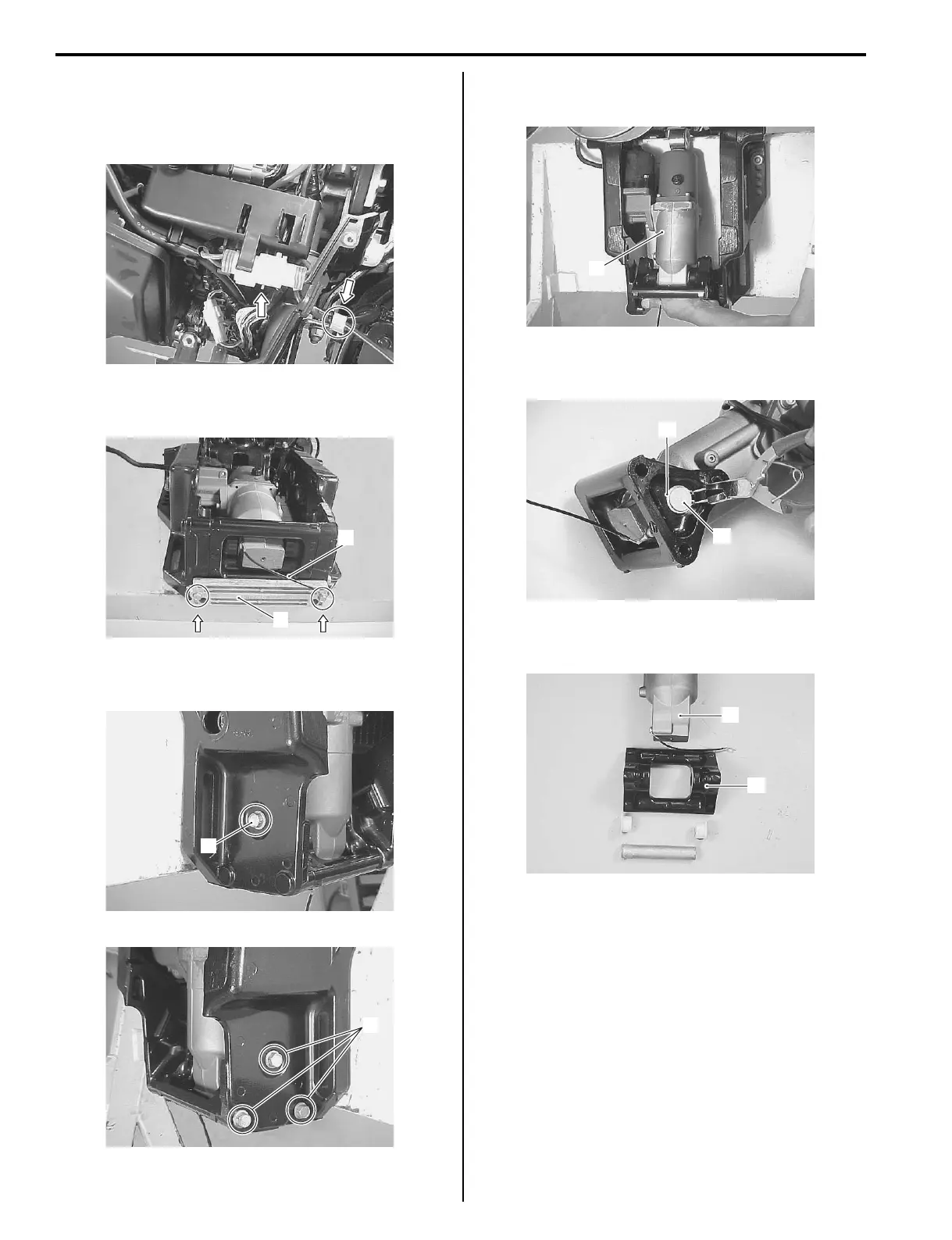

2B-14 Power Trim and Tilt:
6) Disconnect the PTT motor cable wire connector from
the PTT relay. Cut the cable tie binding PTT motor
cable and trim sensor lead. Remove the PTT motor
cable from engine lower cover.
7) Remove two bolts and anode (6). Remove the screw
securing bonding wire (7).
8) Remove the four bolts (8) securing lower clamp
bracket to STBD / PORT clamp brackets.
9) Remove the PTT unit (9) and lower clamp bracket
from between the clamp brackets.
10) Remove the snap ring (10) and push tilt cylinder
lower shaft (11) out.
11) Remove the PTT unit (12) from the lower clamp
bracket (13).
I9J011220065-01
6
7
I9J011220066-01
8
I9J011220067-01
8
I9J011220068-01
9
I9J011220069-01
10
11
I9J011220070-01
12
13
I9J011220071-01
