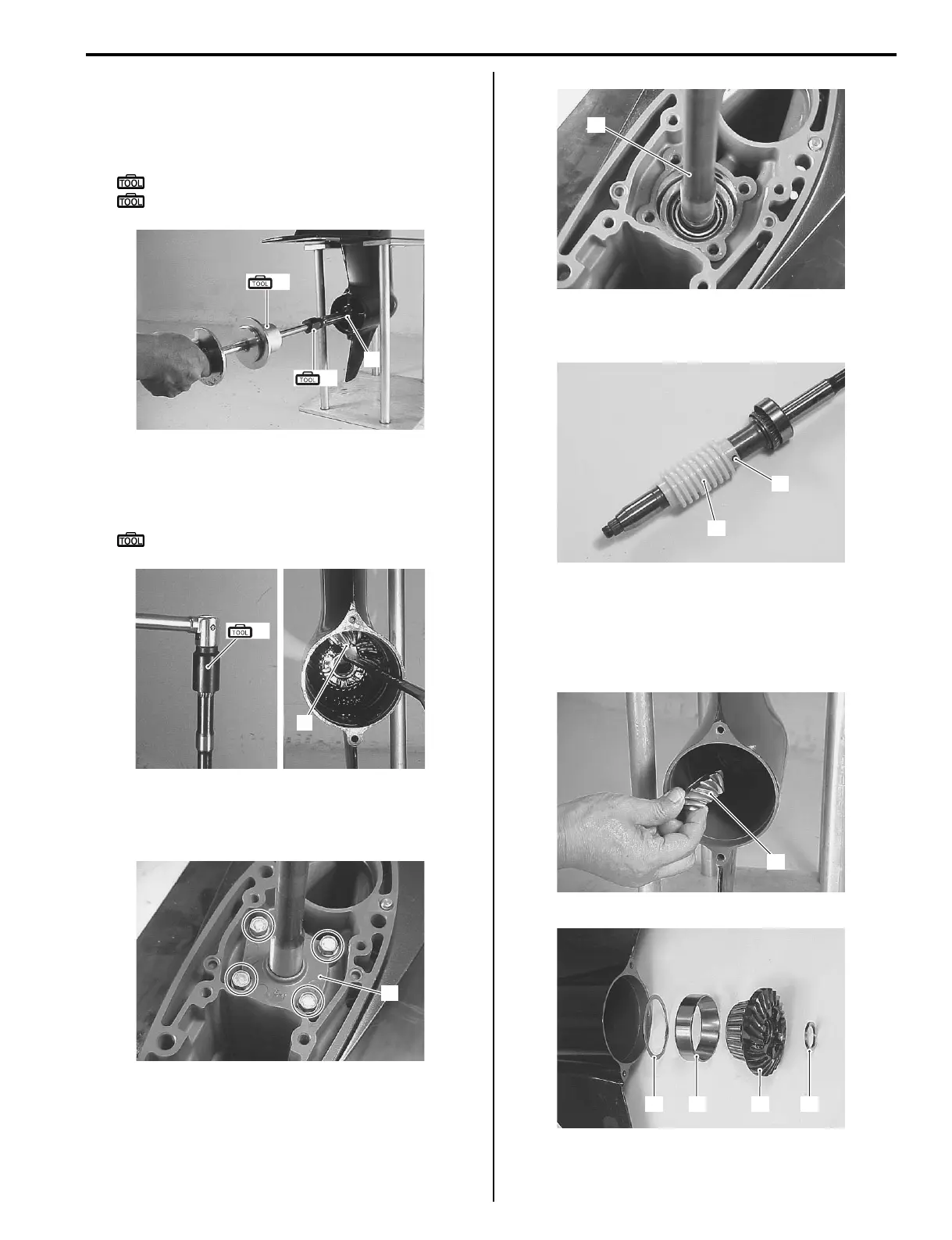

Right Hand Rotation Unit: 3A-9
8) Using special tools, pull out the propeller shaft
bearing housing.
Remove the propeller shaft and bearing housing
assembly (8).
Special tool
(A): 09930–30104 (Sliding hammer)
(B): 09930–30161 (Propeller shaft remover)
9) Hold the pinion nut securely, then fit special tool to
the driveshaft and loosen the pinion nut. Remove
pinion nut (9).
Special tool
(C): 09921–28710 (Driveshaft holder)
10) Remove the four bolts securing driveshaft oil seal
housing (10), then remove oil seal housing and
pinion shim.
11) Lift out driveshaft assembly (11).
12) Remove the pin (12) and driveshaft collar (13) from
driveshaft (if necessary).
13) Remove the pinion gear (14).
Remove the forward gear (15) (with thrust washer
(16)).
Remove the forward gear bearing outer race (17)
and back-up shim (18).
(A)
(B)
8
I9J011310042-01
(C)
9
I9J011310043-01
10
I9J011310044-01
11
I9J011310046-01
12
13
I9J011310045-01
14
I9J011310047-01
15 161718
I9J011310048-01
