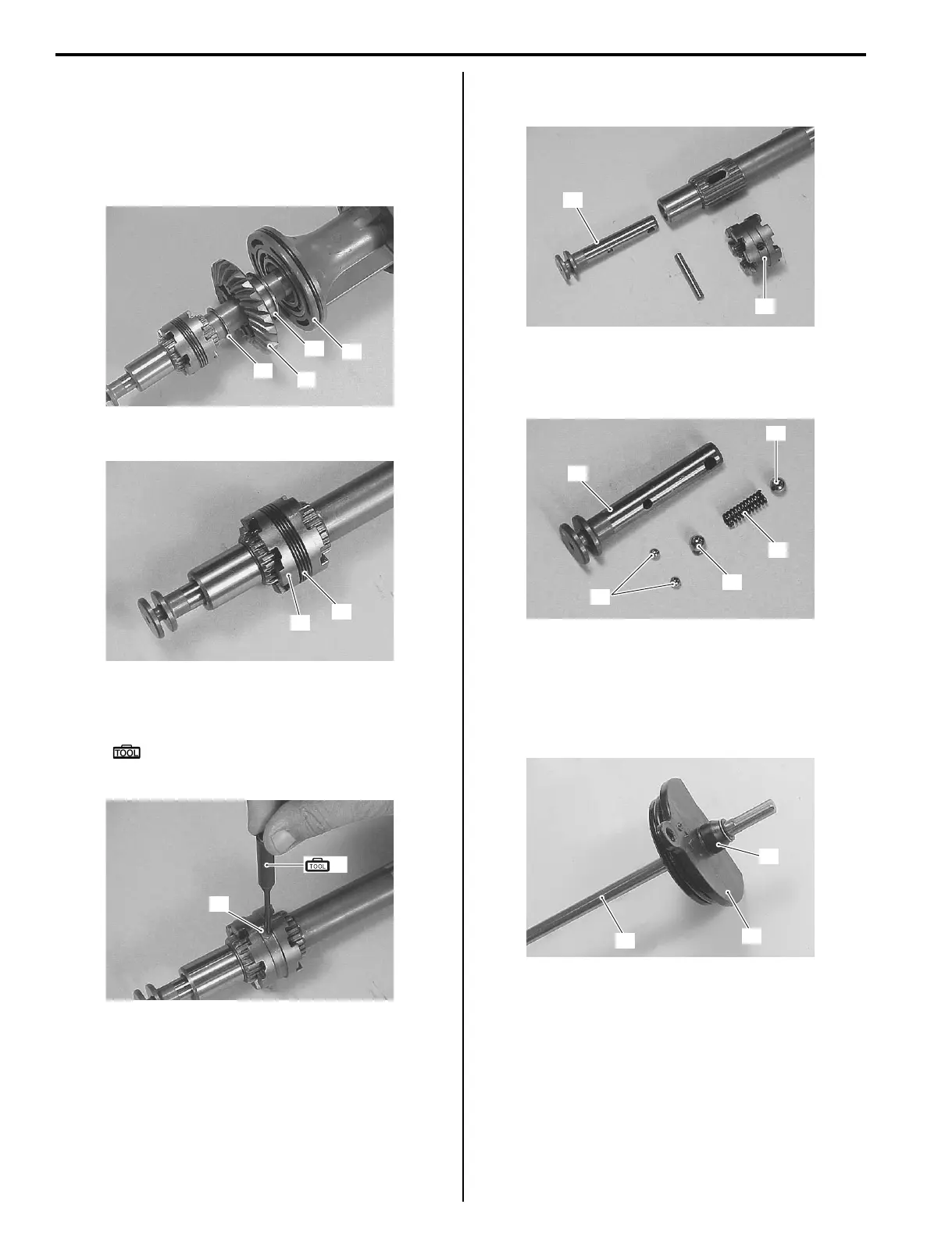

3A-10 Right Hand Rotation Unit:
14) To disassemble propeller shaft components, refer to
following.
a) Slide propeller shaft away from reverse gear (19)
and bearing housing assembly (20).
Account for the reverse gear back-up shim (21)
and reverse gear thrust washer (22).
b) Remove spring (23) from clutch dog shifter (24).
c) Use special tool to push the dog pin (25) out of
the clutch dog shifter.
Special tool
(D): 09922–89810 (Shift lock pin
remover)
d) Remove clutch dog shifter (24) and connector
pin (25) from propeller shaft.
e) Remove large detent ball (26), detent spring
(27), large detent ball (28) and two small detent
balls (29) from connector pin (25).
15) To disassemble shift rod components, refer to
following.
a) Remove oil seal cover (30).
b) Slide shift rod (31) out of shift rod guide housing
(32).
20
21
22
19
I9J011310049-01
23
24
I9J011310050-01
(D)
25
I9J011310051-01
25
24
I9J011310052-01
25
26
27
28
29
I9J011310053-01
31
32
30
I9J011310054-01
